Removal Procedure

  1. Remove the IP center trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER in Instrument Panel, Gages and Console.
  2. Remove the 4 screws (1) which secure the radio to the instrument panel.

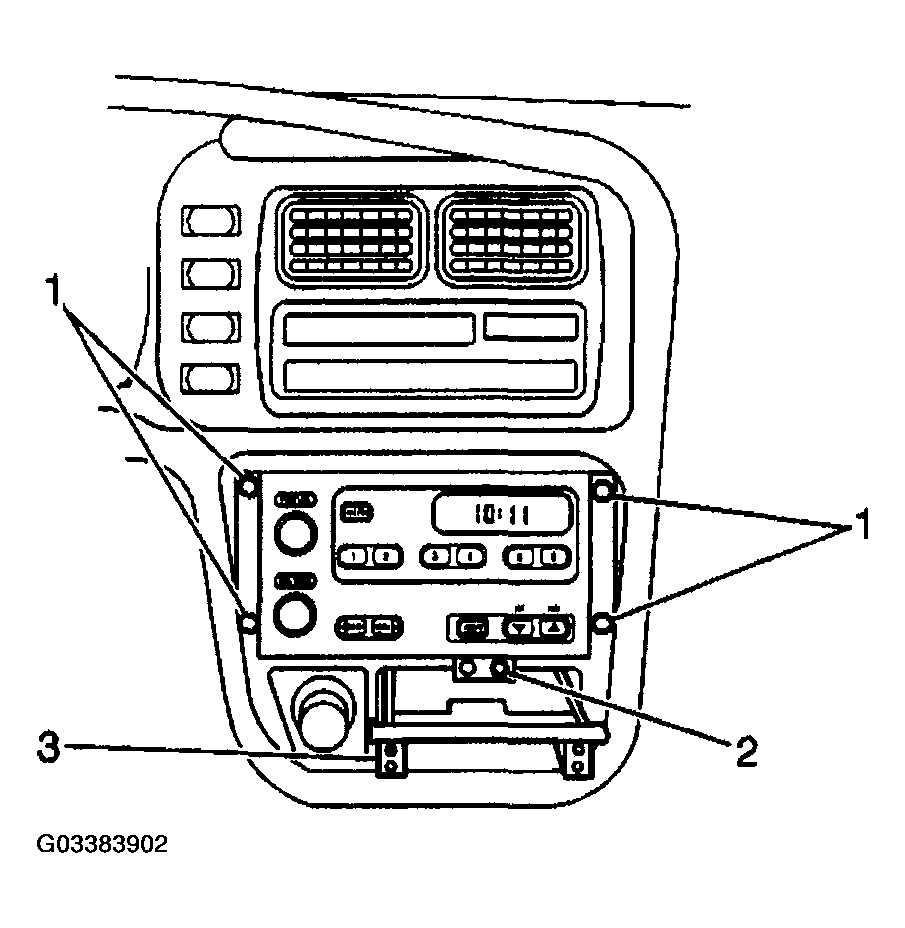

    Fig 1: Removing Screws Which Secure Radio To Instrument Panel
    G03383902Courtesy of GENERAL MOTORS CORP.
  3. Pull the radio (3) forward in order to gain the necessary clearance to disconnect the radio electrical connector (1) and antenna lead (2).
  4. Disconnect the electrical connector (1) and antenna lead (2) from the radio (3).
  5. Remove the radio (3) from the vehicle.
  6. Remove the 4 screws which secure the radio bracket (4) to the radio (3), if necessary.
  7. Remove the radio bracket (4) from the radio (3), if necessary.

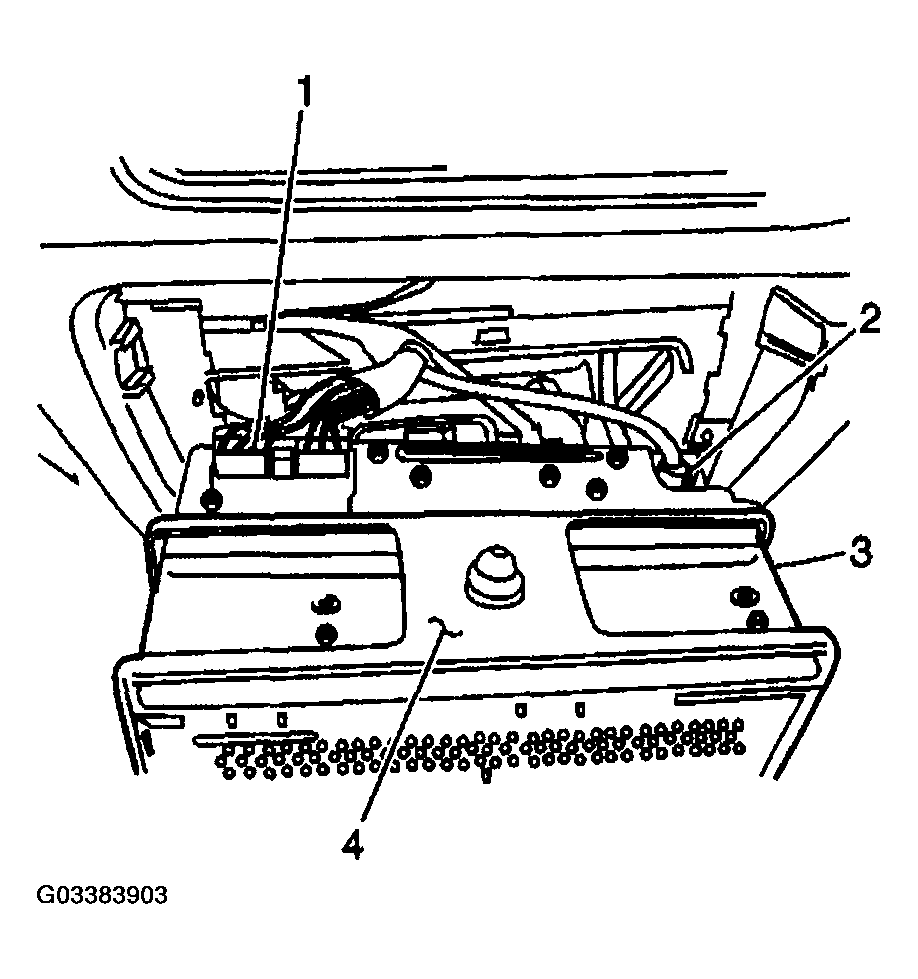

    Fig 2: Removing Screws Which Secure Radio Bracket To Radio
    G03383903Courtesy of GENERAL MOTORS CORP.
