Cruise Control Schematics (Stop Lamp Switch, Cruise Control Servo): Notes

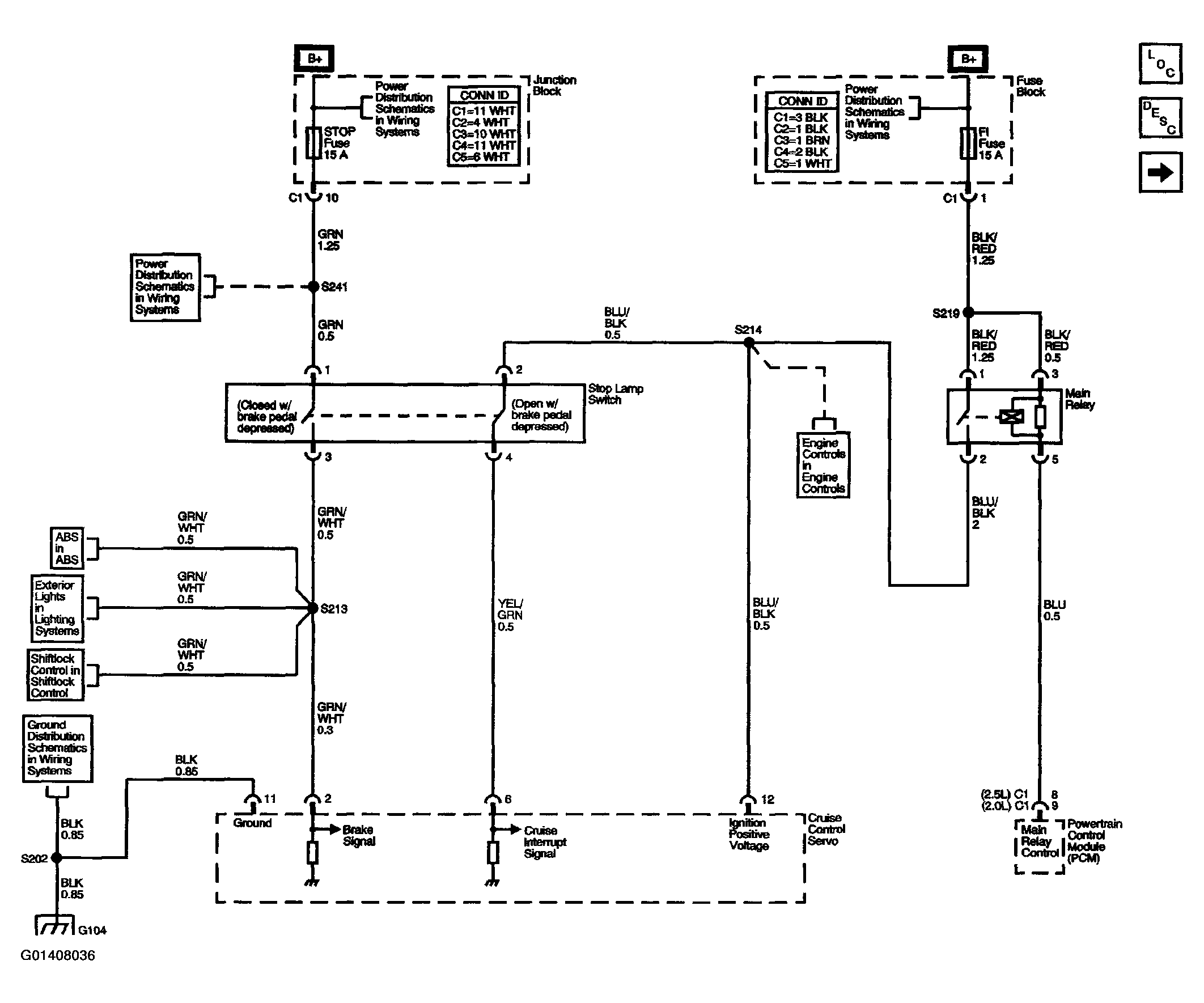

Fig 1: Cruise Control Schematic Diagram (Stop Lamp Switch, Cruise Control Servo)

G01408036

Courtesy of GENERAL MOTORS CORP.
