Installation Procedure

  1. Connect the cruise control switch electrical connector.
  2. Install the cruise control switch to the instrument panel. Ensure that the retaining tabs are fully engaged.
  3. Install the IP cluster trim plate. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.

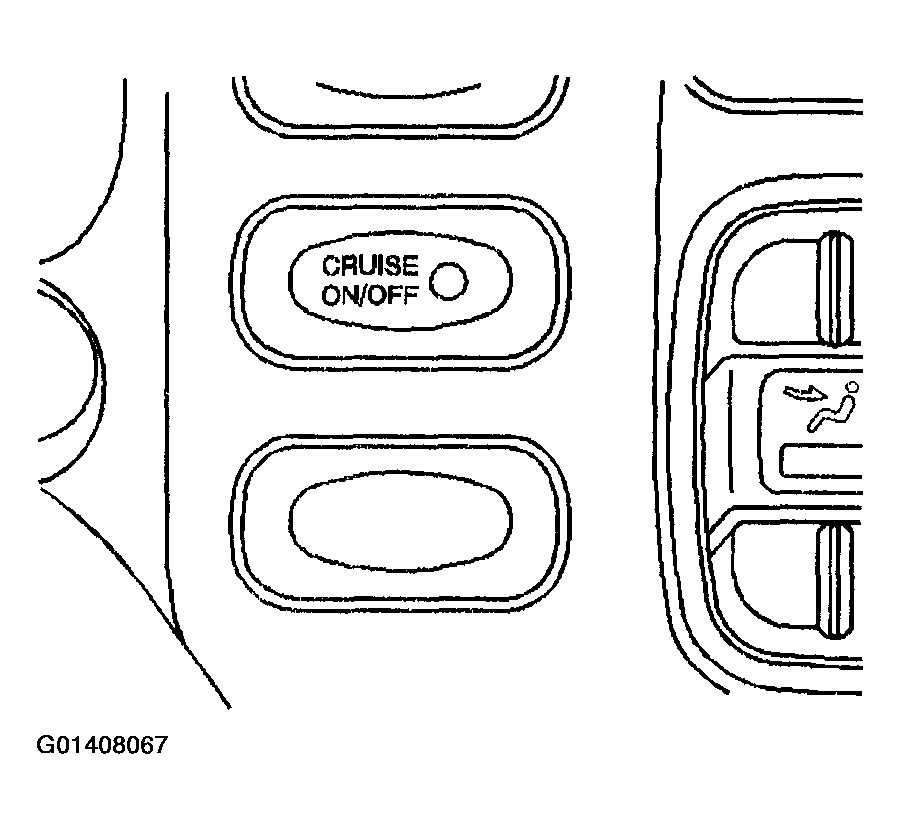

    Fig 1: Installing Cruise Control Switch To Instrument Panel
    G01408067Courtesy of GENERAL MOTORS CORP.
