Chevrolet
>>
2003
>>
Tracker 2D Utility, RWD, Automatic
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Diagnostic Information and Procedures
>>
Cruise Control Inoperative/Malfunctioning
Cruise Control Inoperative/Malfunctioning

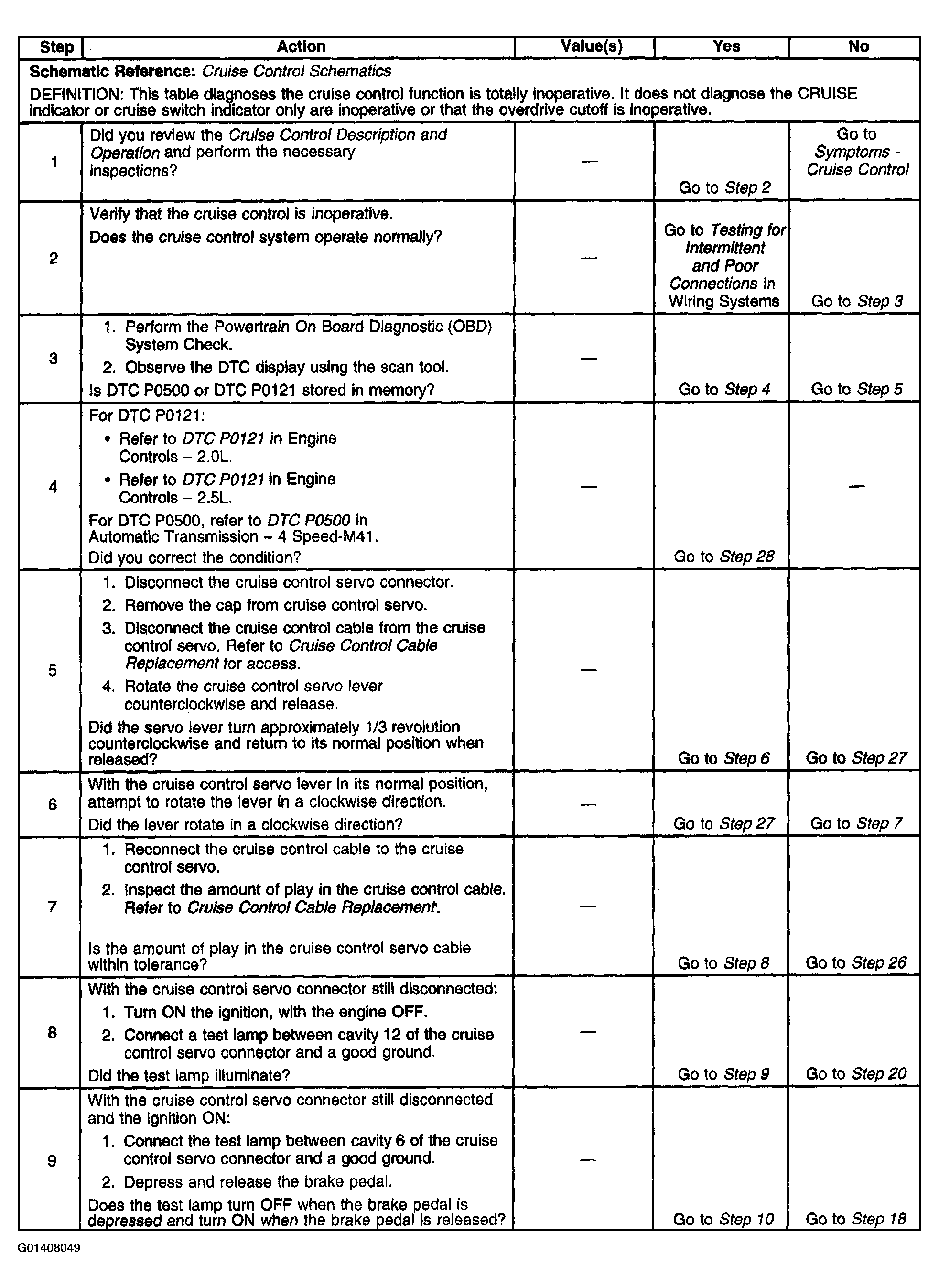

Fig 1: Cruise Control Inoperative/Malfunctioning (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

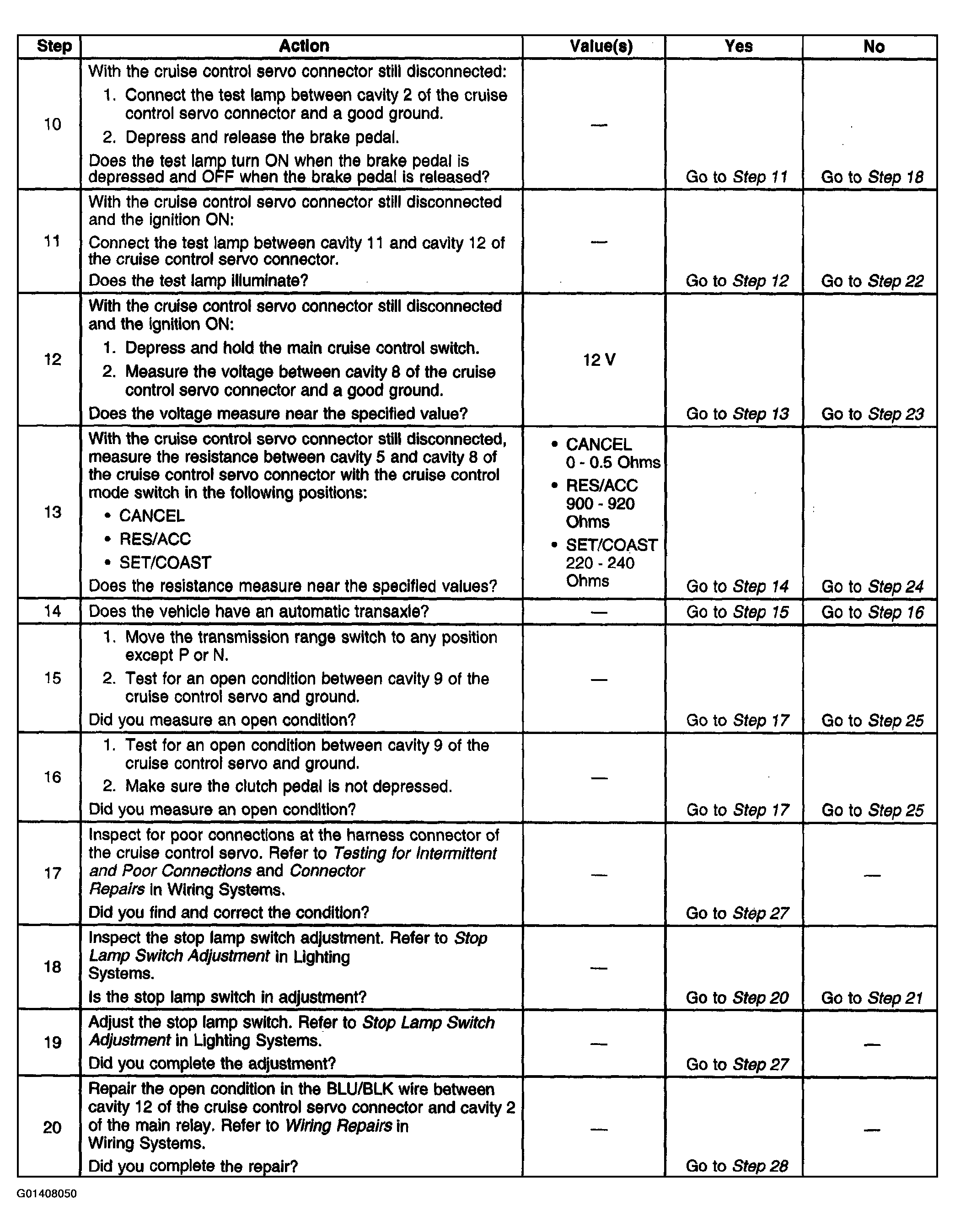

Fig 2: Cruise Control Inoperative/Malfunctioning (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

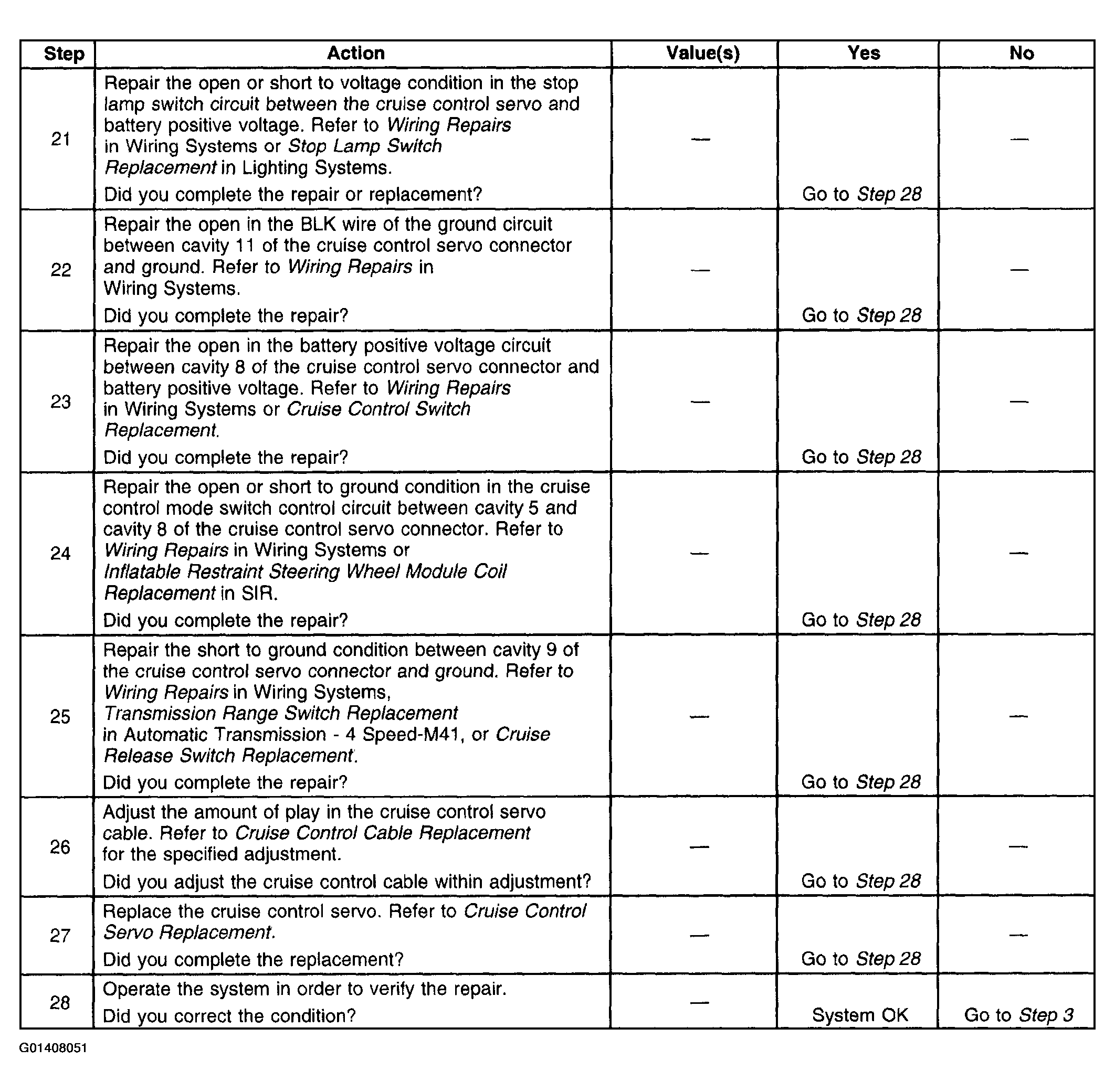

Fig 3: Cruise Control Inoperative/Malfunctioning (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
