Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunroof window panel into the roof opening.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the sunroof window panel screws (2).

    Tighten

    Tighten the sunroof window panel screws to 4 N.m (35 lb in).

  3. Adjust the sunroof window panel. Refer to SUNROOF WINDOW HEIGHT AND OPENING FIT ADJUSTMENT  .

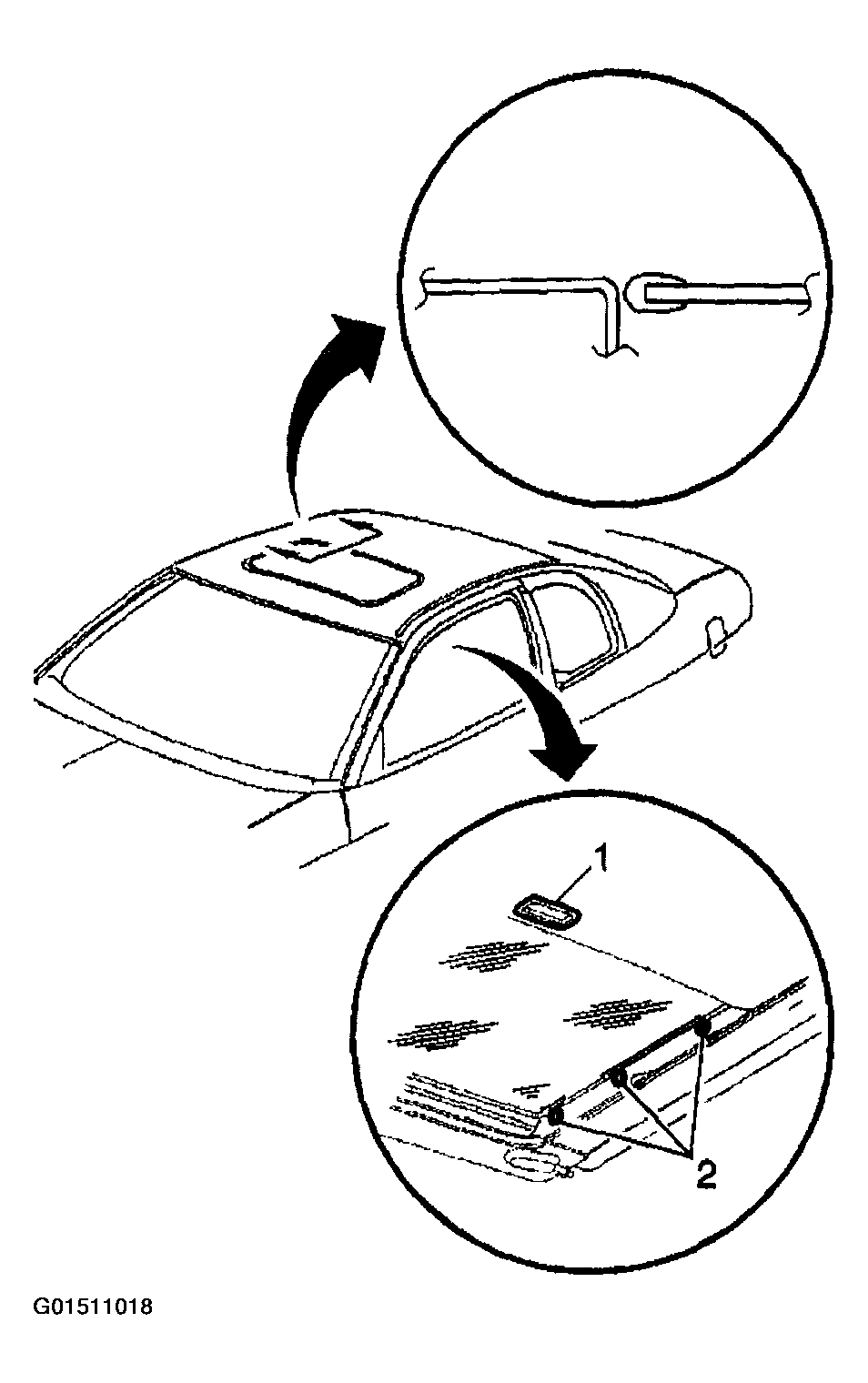

    Fig 1: Installing Sunroof Window Panel Into Roof Opening
    G01511018Courtesy of GENERAL MOTORS CORP.
