Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small, flat-bladed tool in order to disengage the clips located at the front and rear of the switch.
  2. Rotate the switch down and to the left to remove it.
  3. Disconnect the connector from the sunroof control switch.
  4. Remove the sunroof control switch from the vehicle.

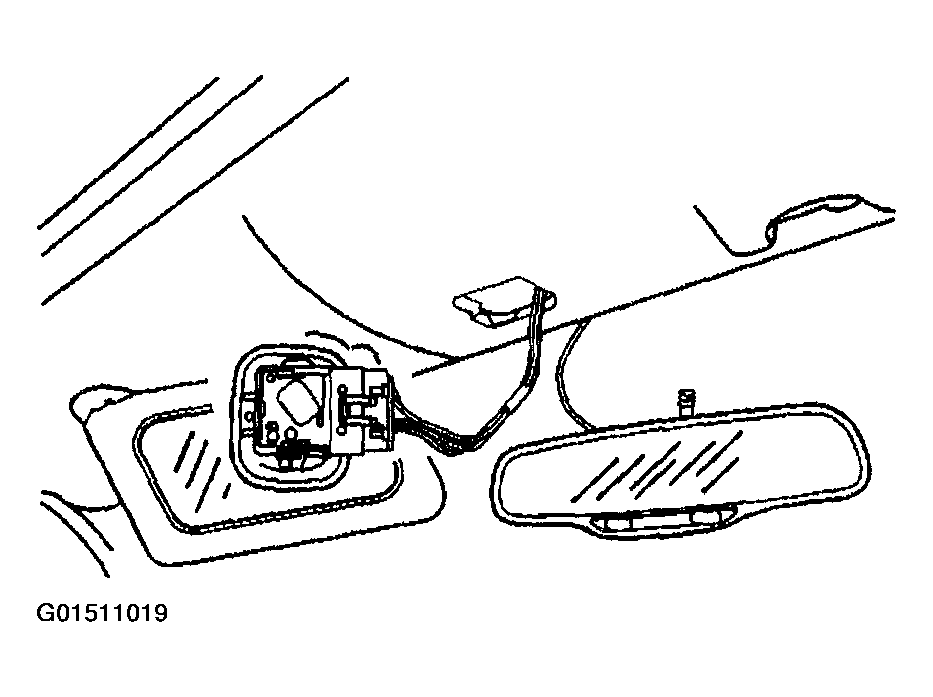

    Fig 1: Disconnecting Connector From Sunroof Control Switch
    G01511019Courtesy of GENERAL MOTORS CORP.
