Power Roof Systems Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

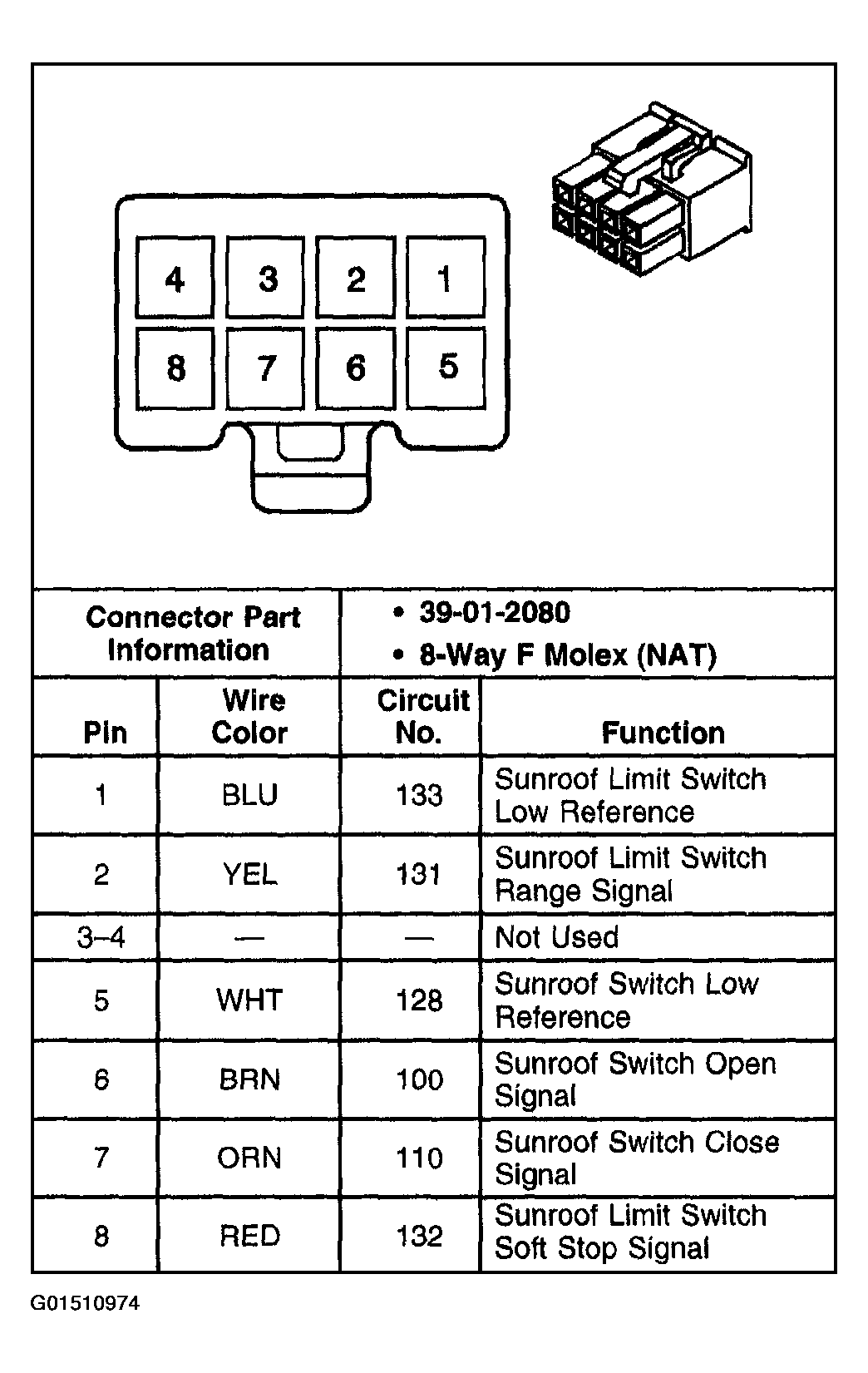

Fig 1: Identifying Sunroof Module, C1 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

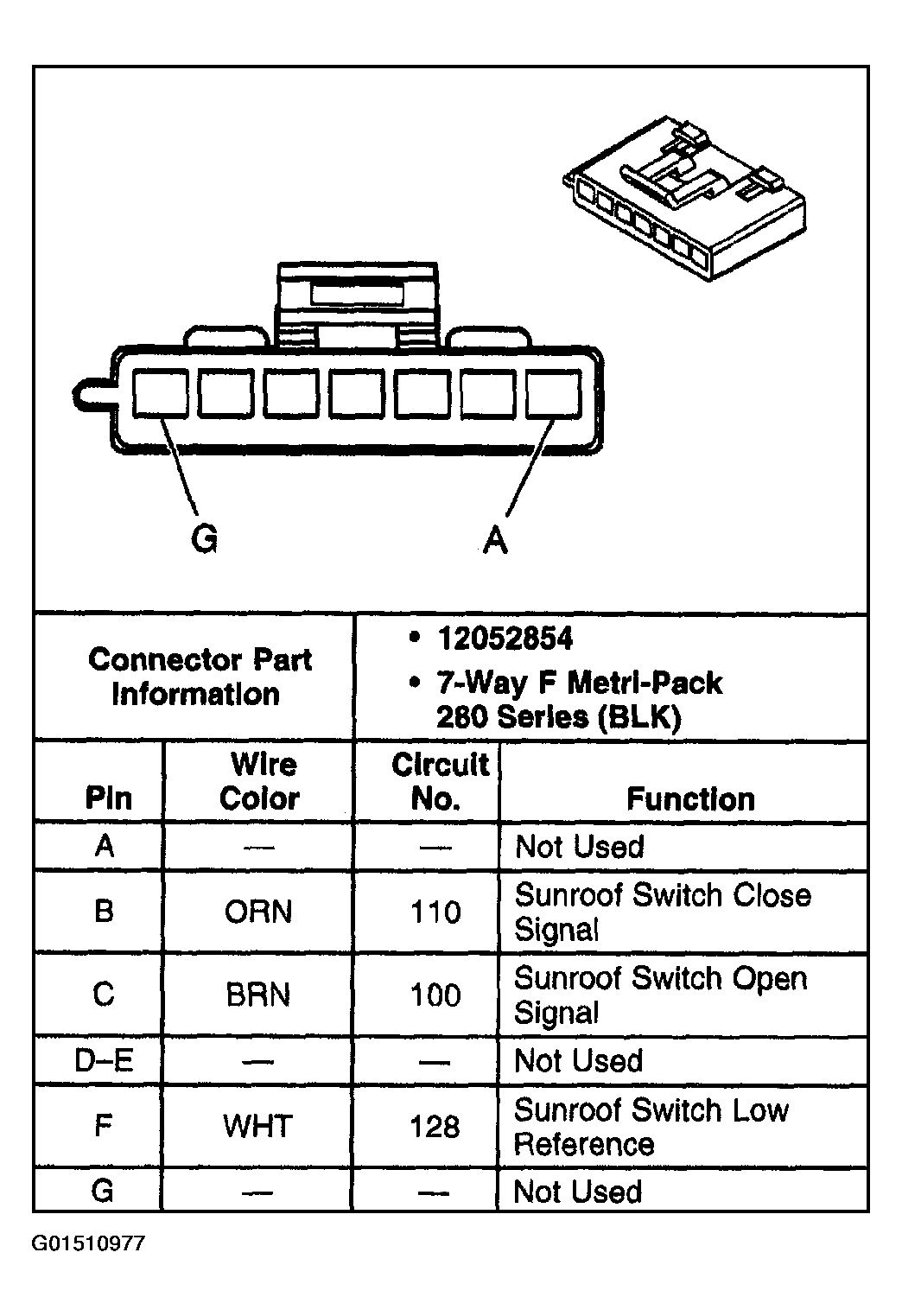

Fig 2: Identifying Sunroof Module, C2 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

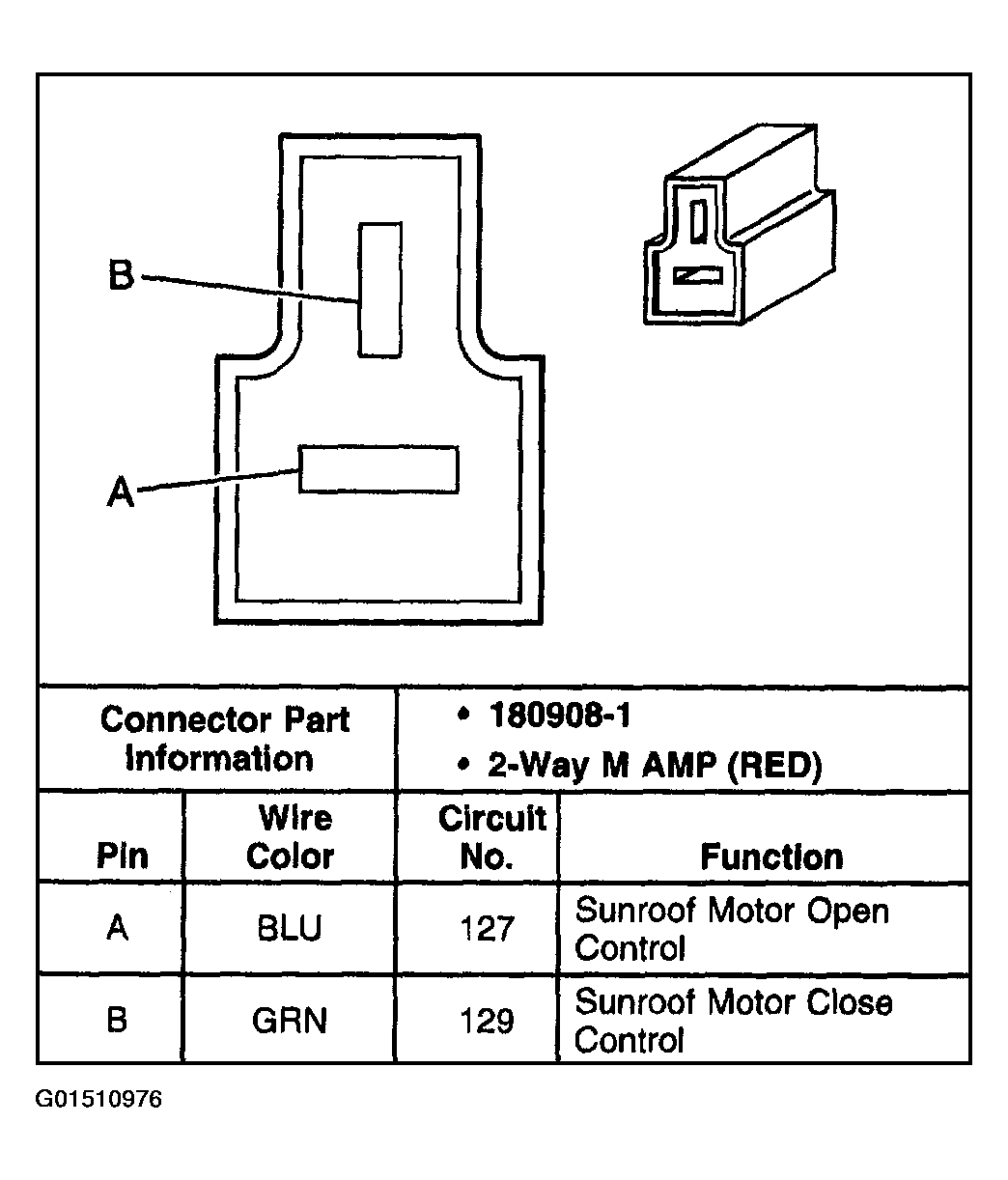

Fig 3: Identifying Sunroof Motor Connector Terminal

Courtesy of GENERAL MOTORS CORP.

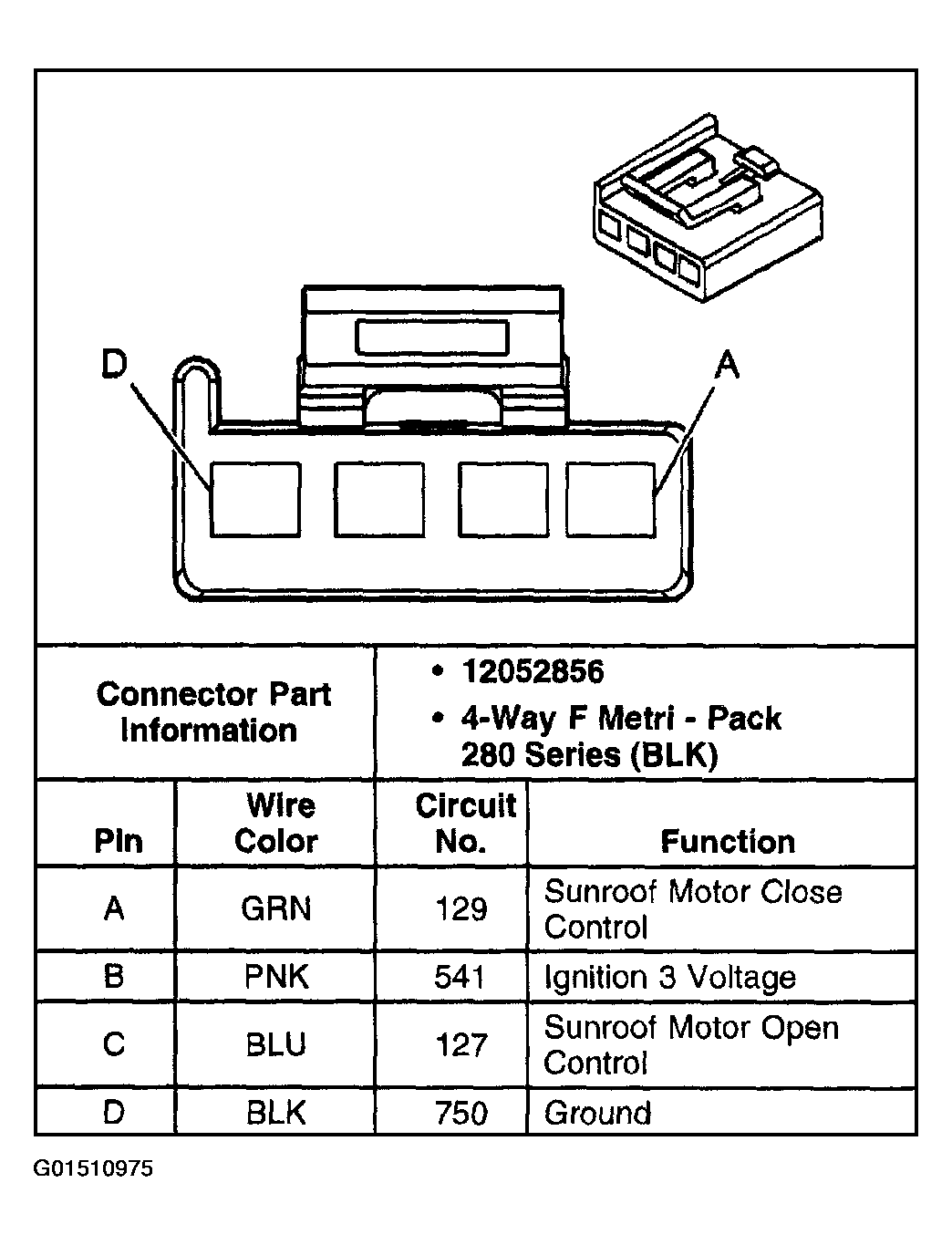

Fig 4: Identifying Sunroof Switch Connector Terminal

Courtesy of GENERAL MOTORS CORP.
