Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood hold open rod retainer to the radiator support. Press in until fully seated.
  2. Push the hood hold open rod (2) into the retainer until fully seated.
  3. Install the retainer clip (1).
  4. Position the rod in the clip (1).
  5. Remove the hood support.
  6. Close the hood.

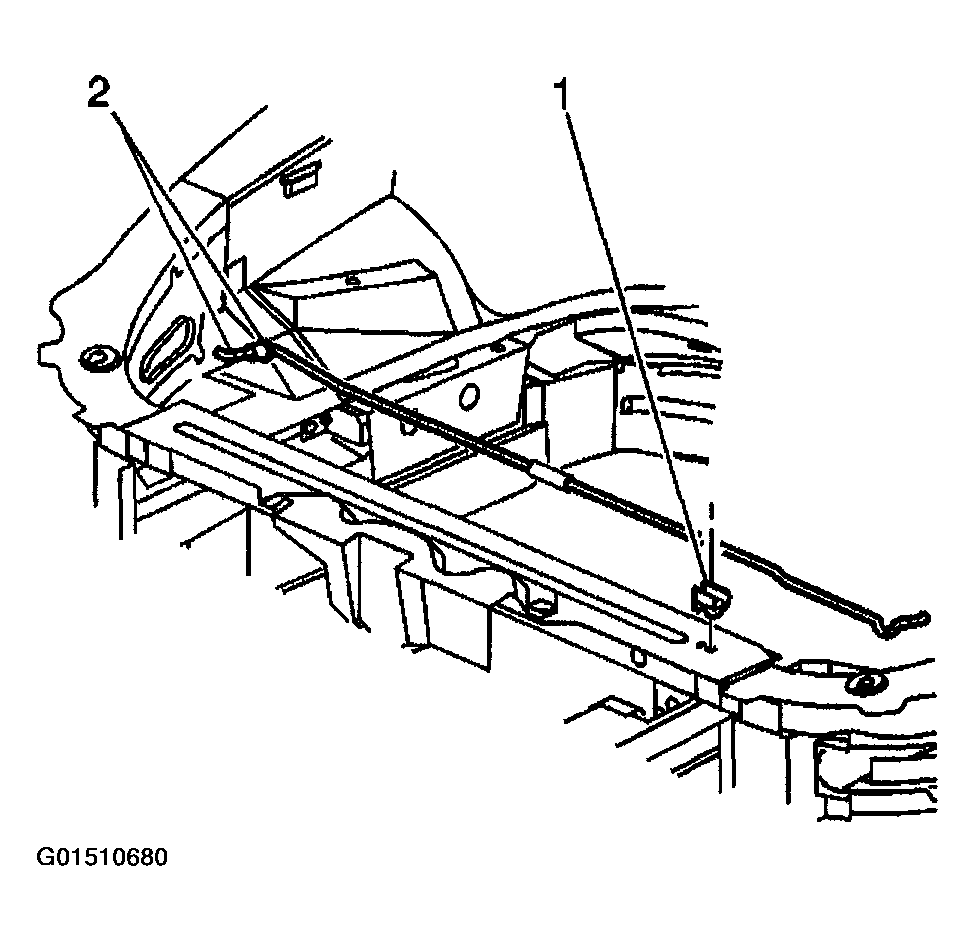

    Fig 1: Installing Hood Hold-Open Rod
    G01510680Courtesy of GENERAL MOTORS CORP.
