Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fender liner (3) to the front fender.
  2. Install the push-in retainers (4).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to the fender liner to the fender.

    Tighten

    Tighten the fender liner screws to 2 N.m (18 lb in).

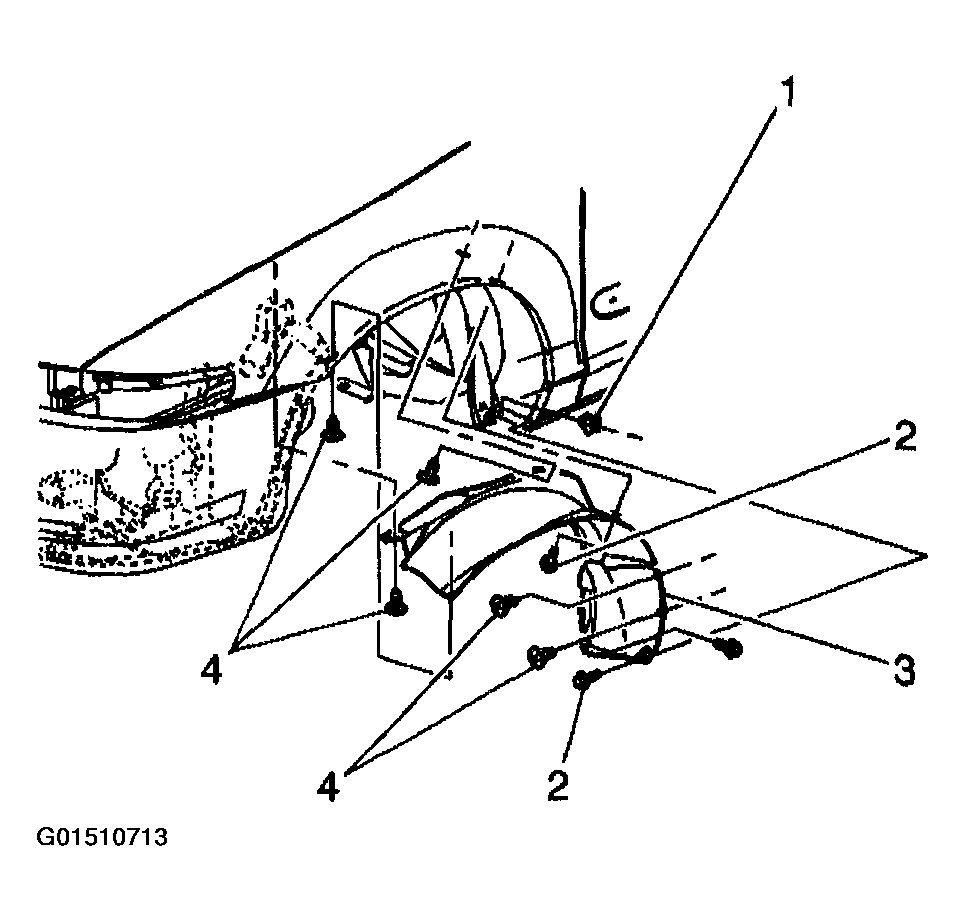

    Fig 1: Installing Front Fender Liner To Fender
    G01510713Courtesy of GENERAL MOTORS CORP.
  4. Install the bolts to the front fender liner to the front bumper fascia.

    Tighten

    Tighten the fender liner bolts to 2 N.m (18 lb in).

  5. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  6. Lower the vehicle.

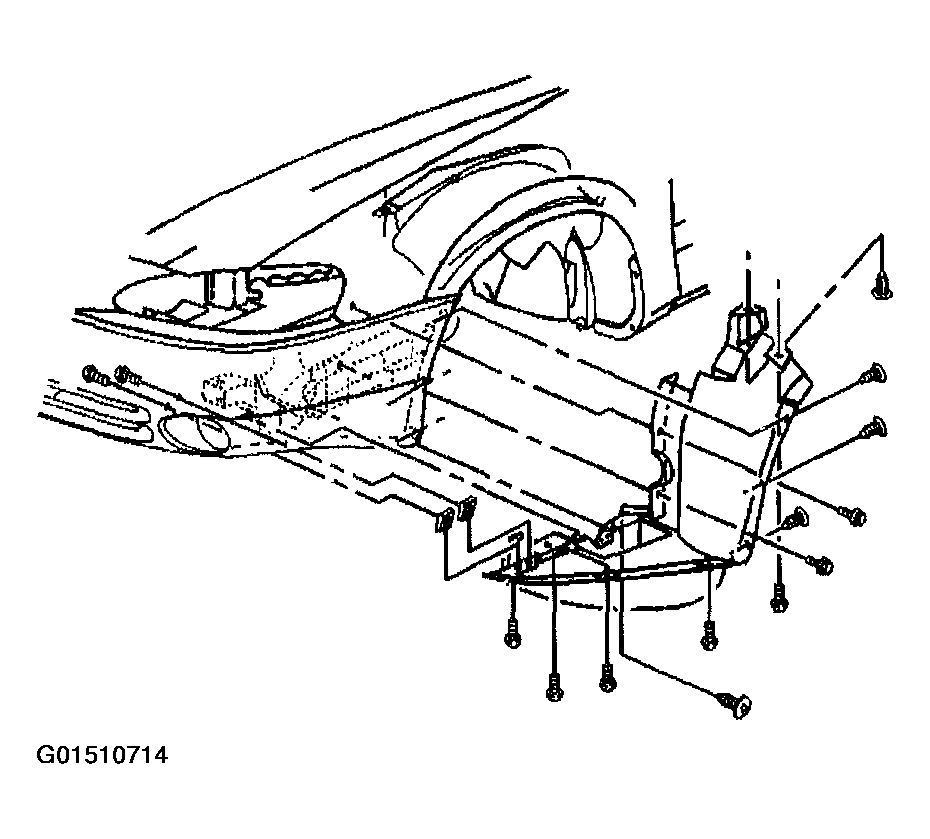

    Fig 2: Installing Front Fender Liner To Front Bumper Fascia Bolts
    G01510714Courtesy of GENERAL MOTORS CORP.
