Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the battery tray to the battery support.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts attaching the tray.

    Tighten

    Tighten the battery tray bolts to 5 N.m (44 lb in).

  3. Install the battery. Refer to BATTERY REPLACEMENT in Engine Electrical.

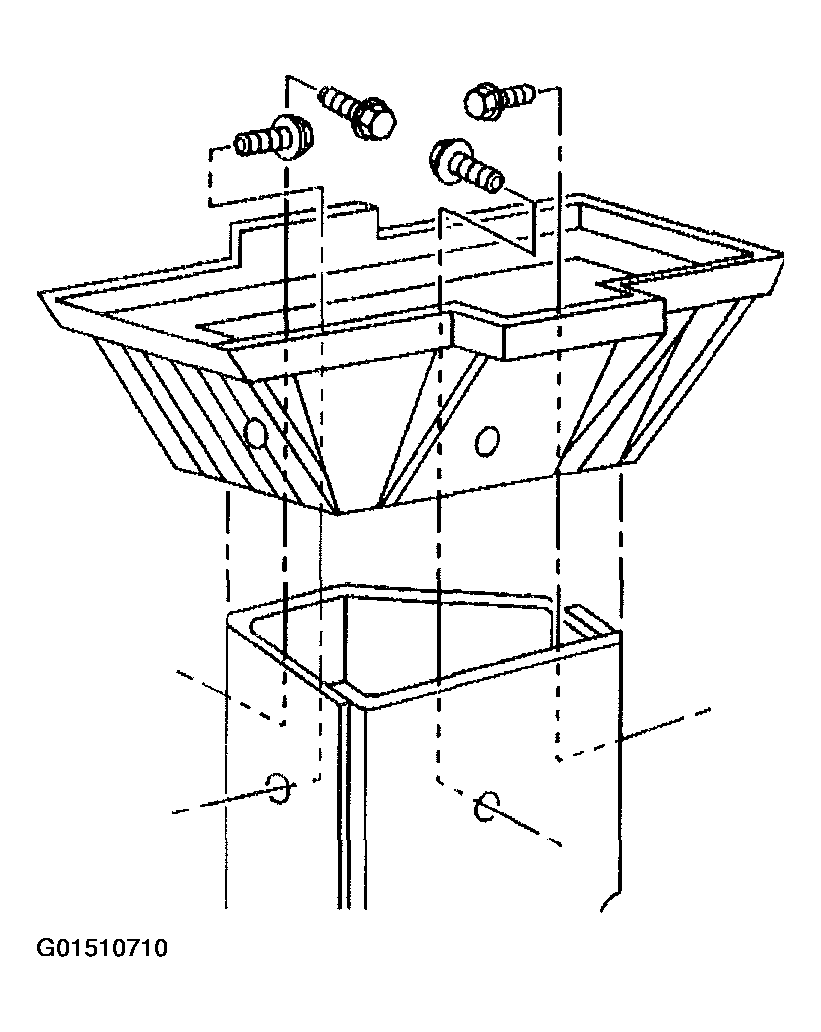

    Fig 1: Installing Battery Tray & Bolts
    G01510710Courtesy of GENERAL MOTORS CORP.
