Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  2. Disconnect the wiper motor electrical connector.
  3. Remove the wiper drive system module screws.
  4. Remove the wiper drive system module from the vehicle.

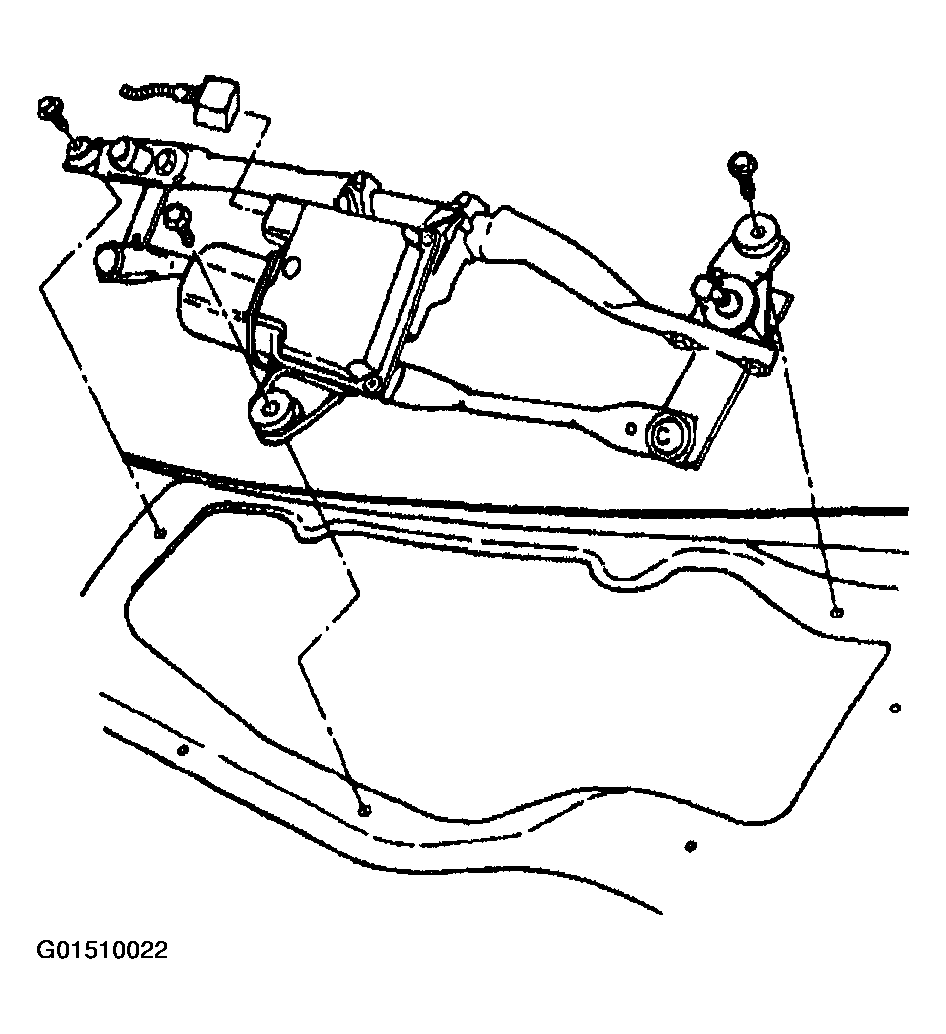

    Fig 1: Removing Wiper Drive System Module From Vehicle
    G01510022Courtesy of GENERAL MOTORS CORP.
  5. Using the J 39232,  remove the wiper transmission from the wiper motor crank arm.

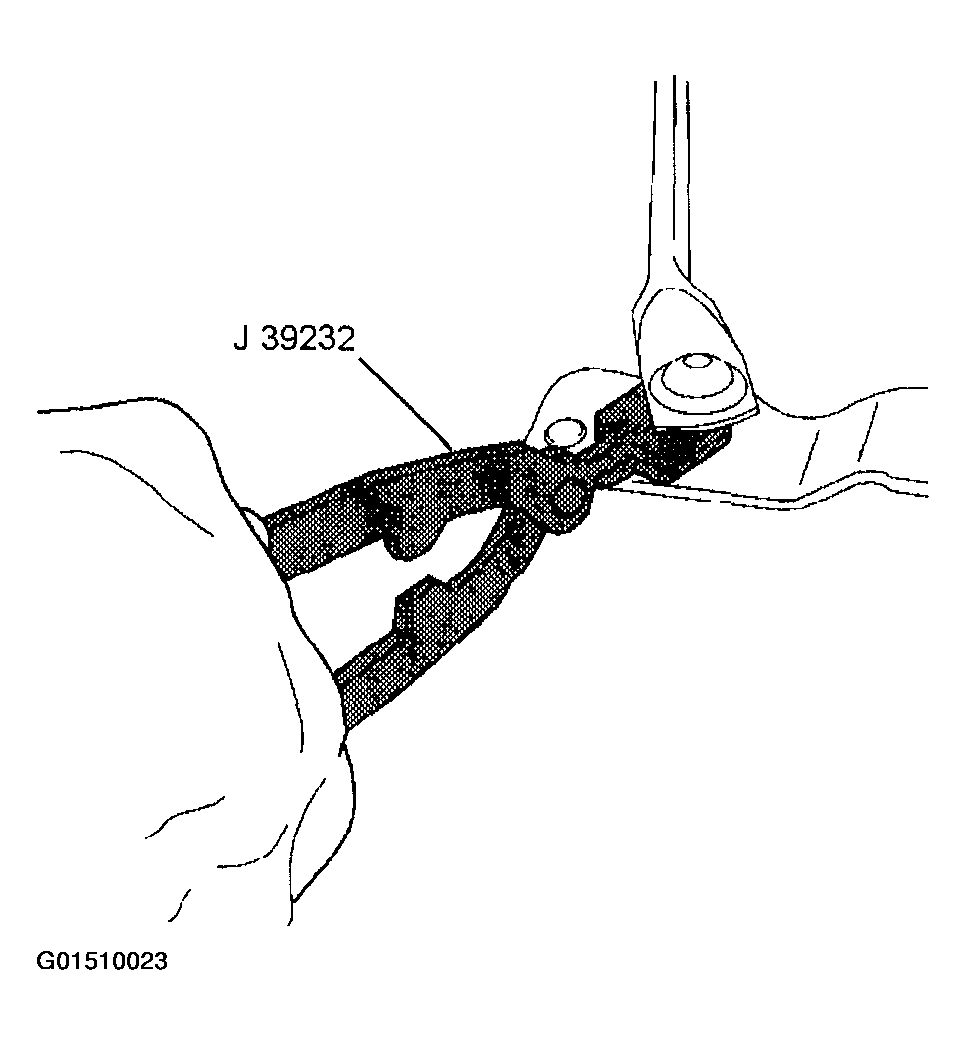

    Fig 2: Removing Wiper Transmission From Wiper Motor Crank Arm Using J 39232
    G01510023Courtesy of GENERAL MOTORS CORP.
  6. Remove the wiper motor screws.
  7. Remove the wiper motor from the wiper transmission.

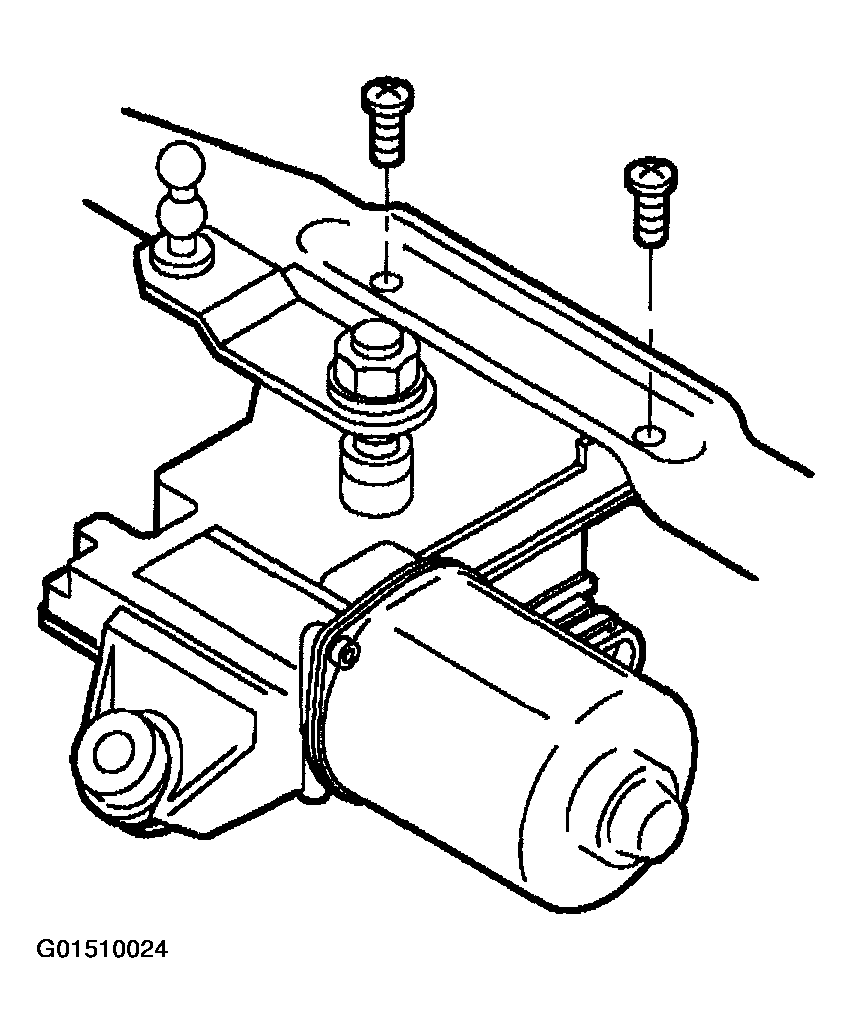

Fig 3: Removing Wiper Motor & Screws From Wiper Transmission
G01510024Courtesy of GENERAL MOTORS CORP.
