Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper motor to the wiper transmission.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the wiper motor screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

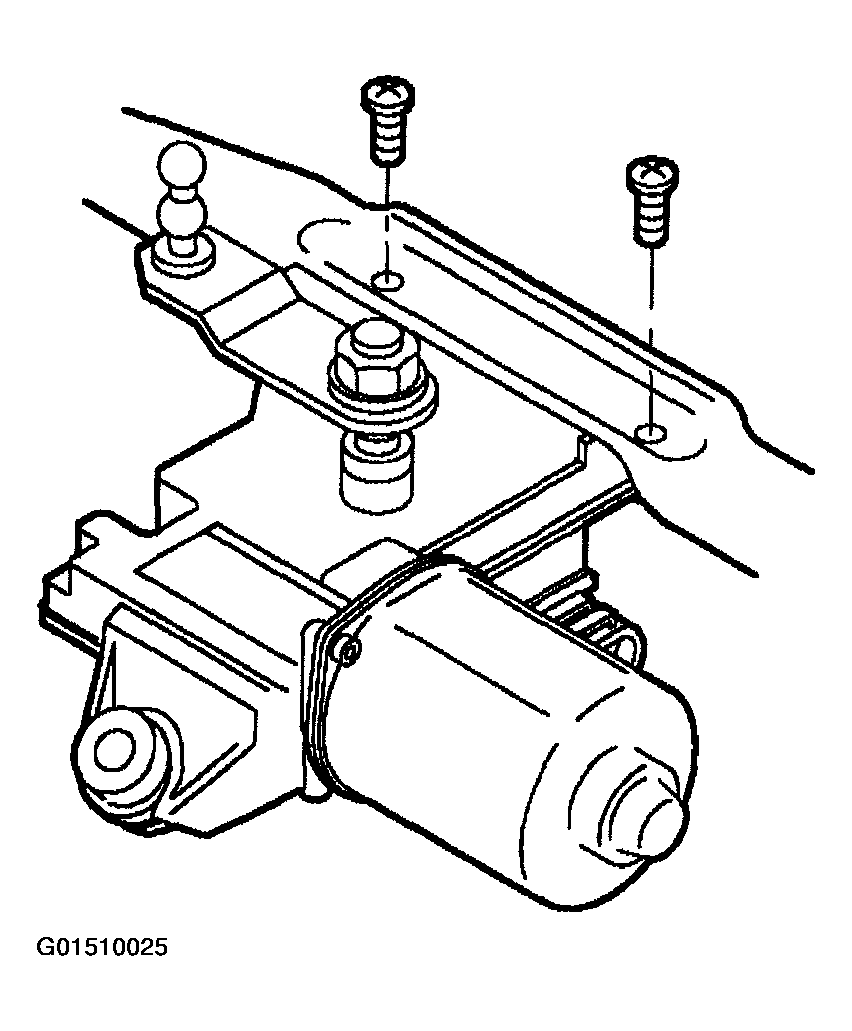

    Fig 1: Installing Wiper Motor & Screws To Wiper Transmission
    G01510025Courtesy of GENERAL MOTORS CORP.
  3. Using the J 39529  , install the wiper transmission to the wiper motor crank arm.

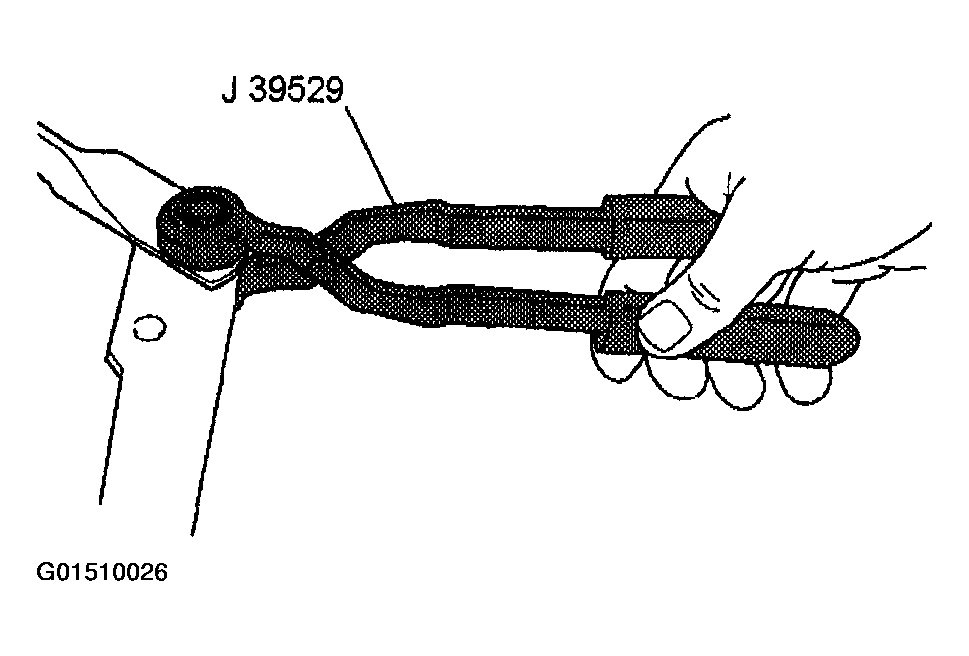

    Fig 2: Installing Wiper Transmission To Wiper Motor Crank Arm Using J 39529
    G01510026Courtesy of GENERAL MOTORS CORP.
  4. Position the wiper drive system module to the vehicle.
  5. Install wiper drive system module screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

  6. Connect the wiper motor electrical connector.
  7. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .

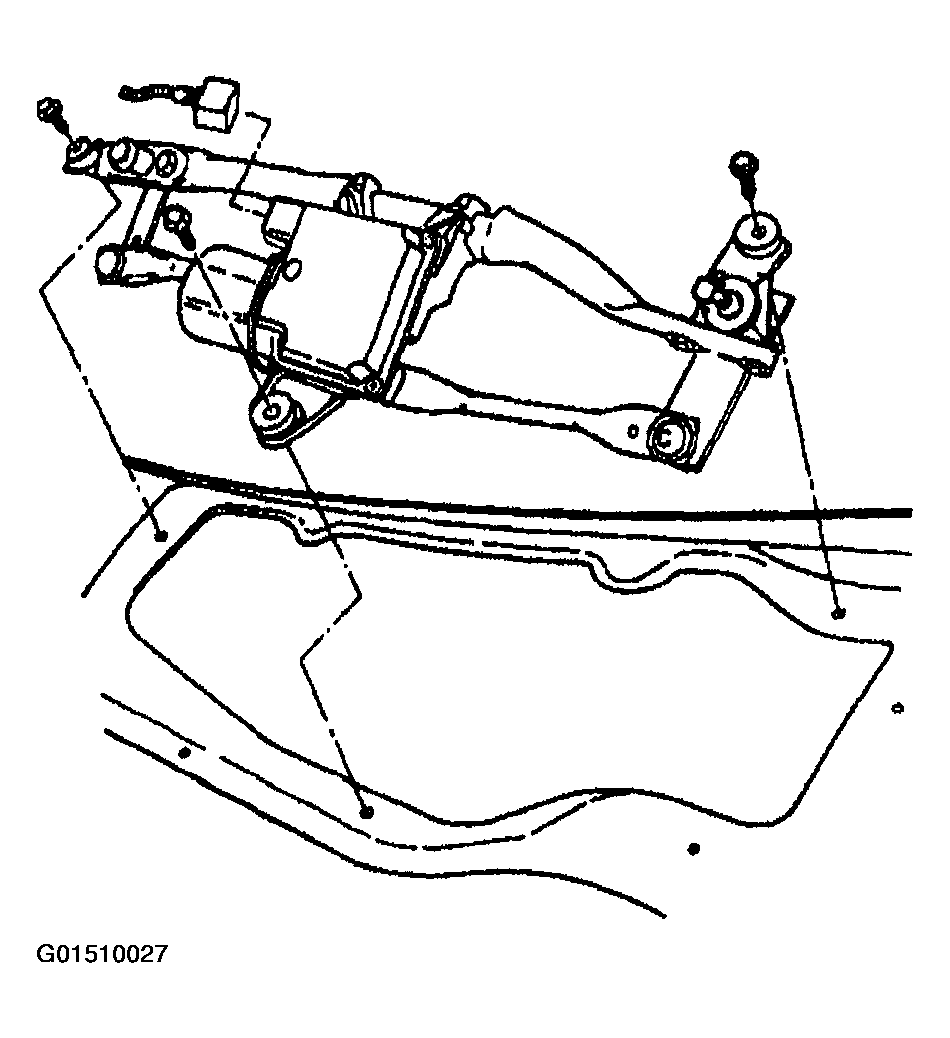

Fig 3: Installing Wiper Drive System Module To Vehicle
G01510027Courtesy of GENERAL MOTORS CORP.
