Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper motor cover to the wiper motor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the wiper motor cover screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Connect the wiper motor electrical connector.
  4. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .

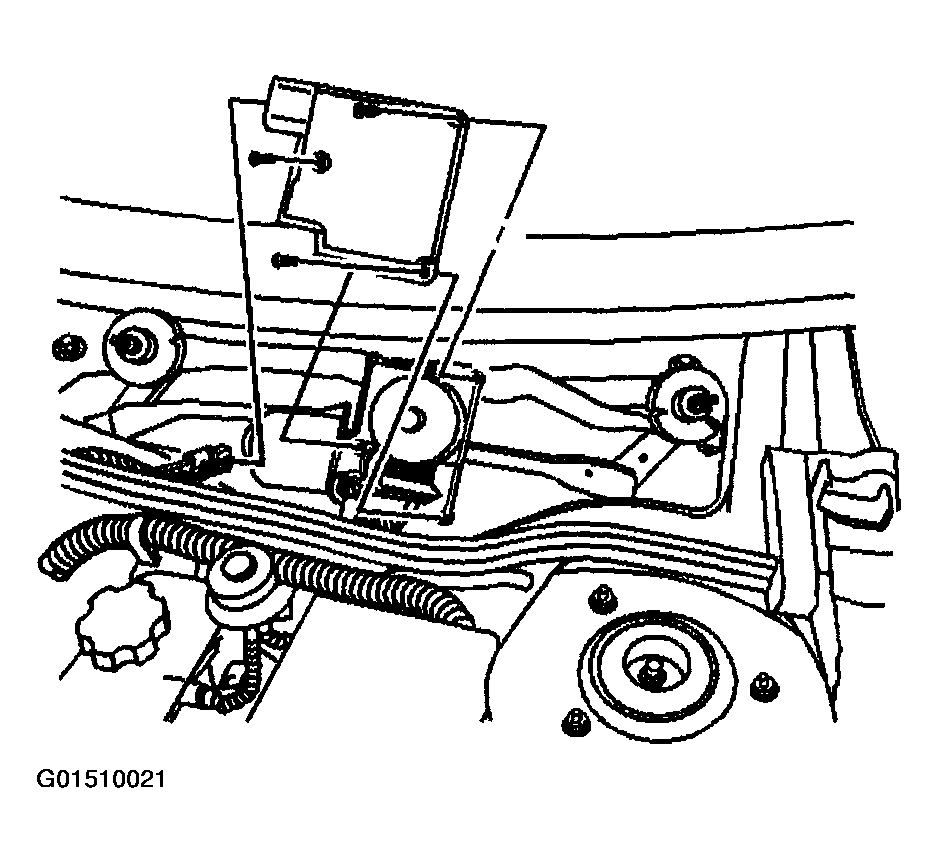

Fig 1: Installing Wiper Motor Cover & Screws To Wiper Motor
G01510021Courtesy of GENERAL MOTORS CORP.
