Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

Insert the hook of the wiper arm through the opening in the wiper blade.

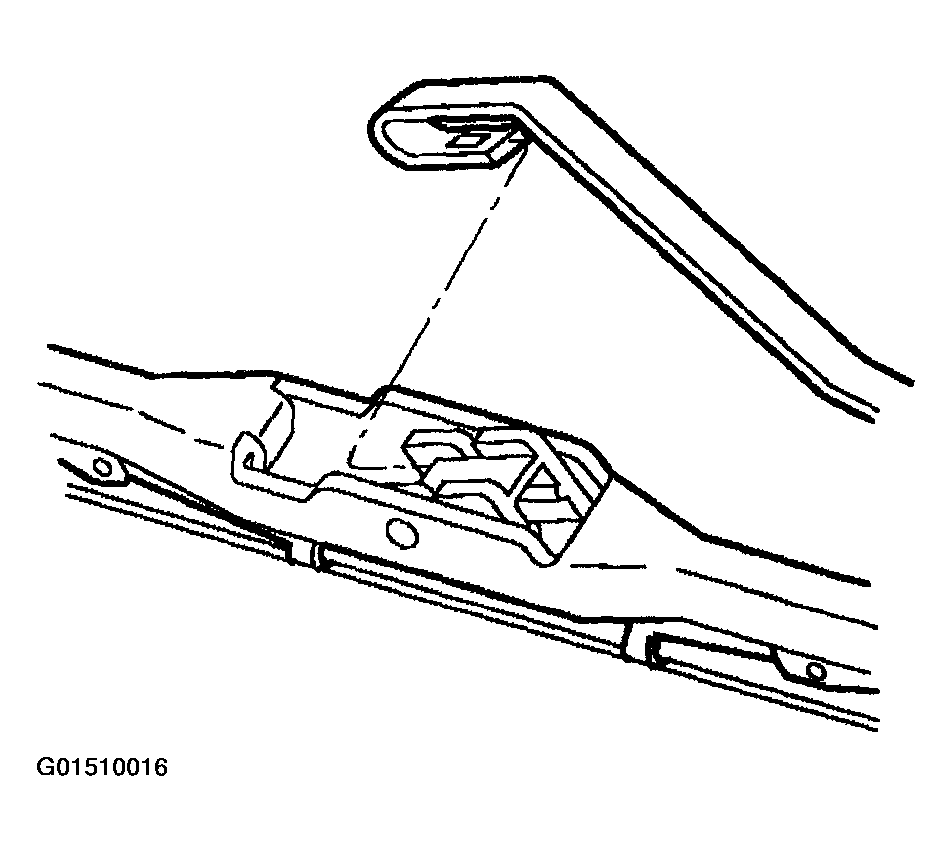

Fig 1: Installing Hook Of Wiper Arm Through Opening In Wiper Blade
Courtesy of GENERAL MOTORS CORP.
Position the wiper blade pivot in the inside radius of the wiper arm hook.
Pull the wiper blade pivot into the wiper arm hook until the pivot locks into the hook.
Operate the wipers and inspect for proper operation.

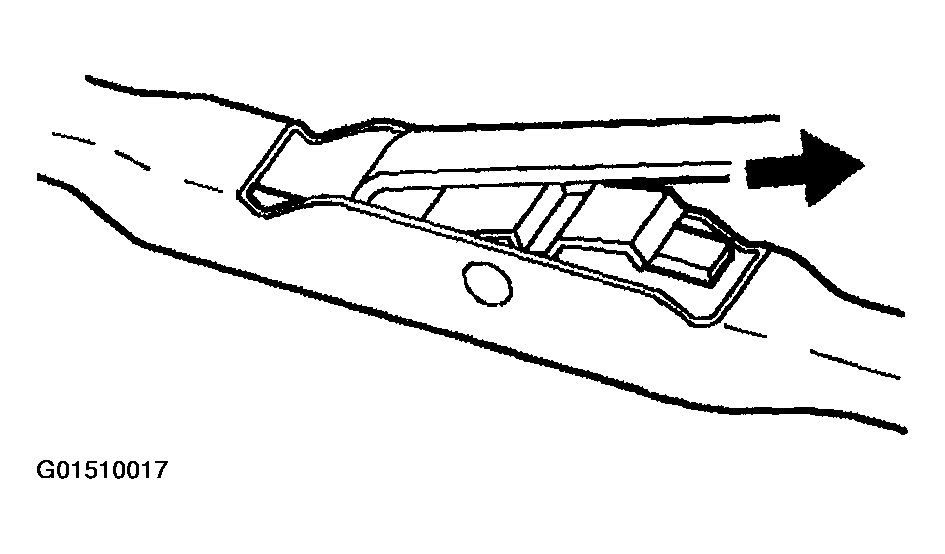

Fig 2: Installing Wiper Blade Pivot In Inside Radius Of Wiper Arm Hook

Courtesy of GENERAL MOTORS CORP.
