Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container to the frame rail.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the washer solvent container screws.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  3. Connect the washer solvent level sensor electrical connector.
  4. Connect the washer hose to the washer pump.
  5. Connect the washer pump electrical connector.
  6. Install the air cleaner intake duct.
  7. Fill the washer solvent container with washer solvent.

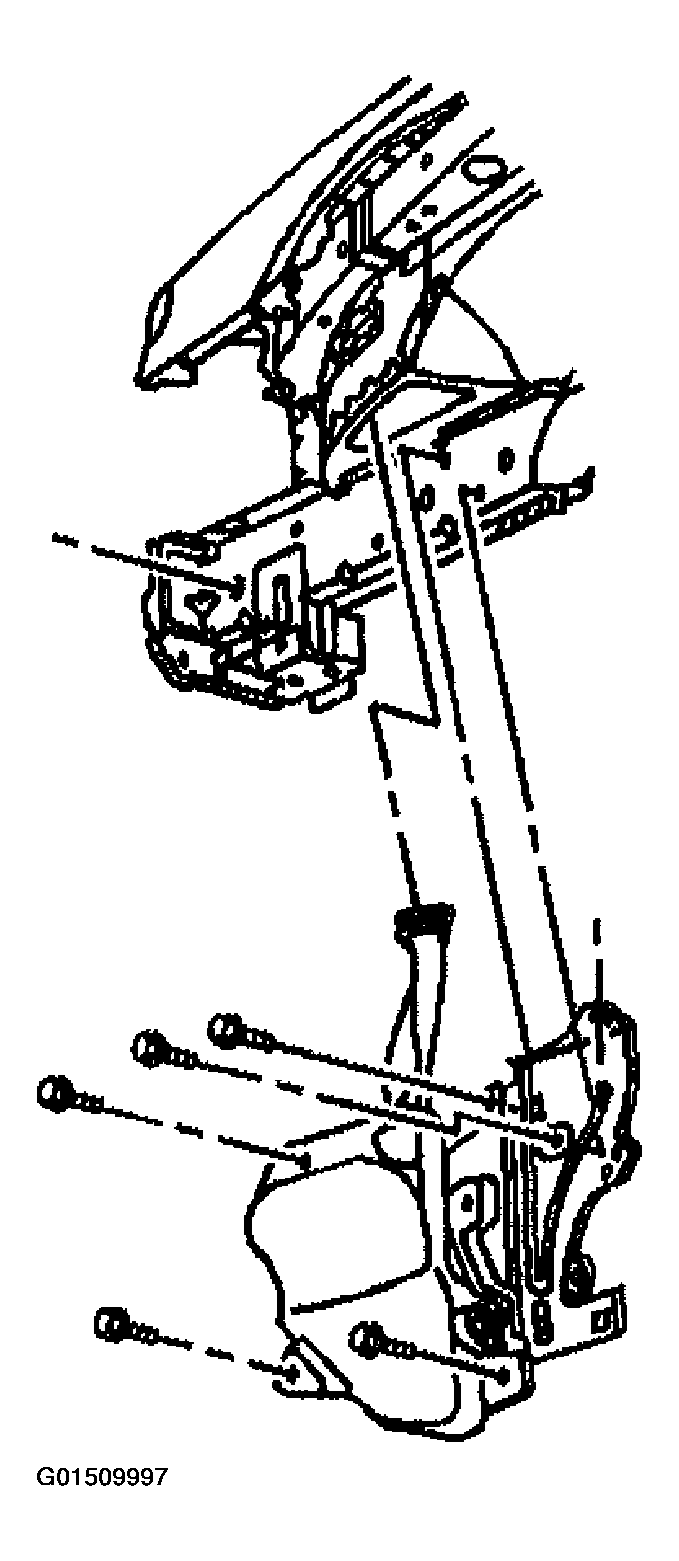

    Fig 1: Installing Washer Solvent Container To Frame Rail
    G01509997Courtesy of GENERAL MOTORS CORP.
