Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seal to the washer solvent container pressing in until fully seated.
  2. Position the washer pump to the washer solvent container pressing in until fully seated.
  3. Connect the washer hose.
  4. Connect the washer pump electrical connector.
  5. Install the left front fender liner. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.
  6. Fill the washer solvent container with washer solvent.

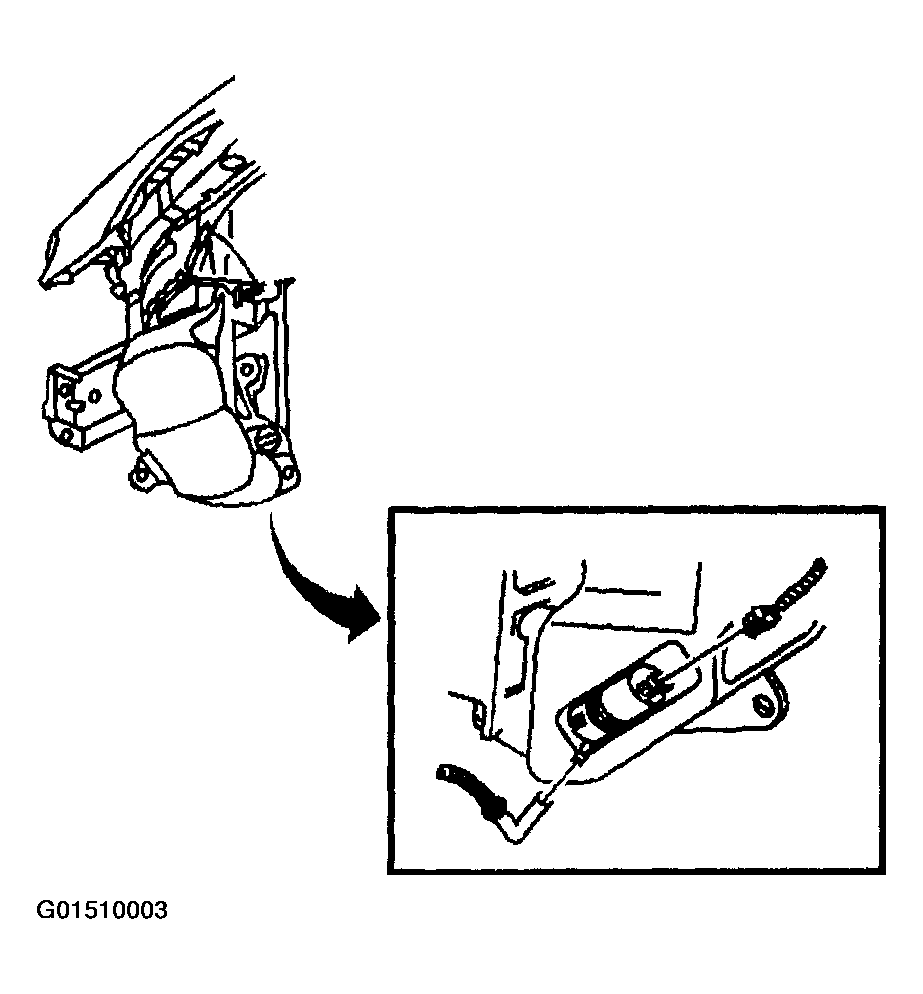

Fig 1: Connecting Washer Hose & Washer Pump Electrical Connector
G01510003Courtesy of GENERAL MOTORS CORP.
