Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust muffler.
  2. Connect the exhaust muffler rear hanger insulators to the exhaust muffler.

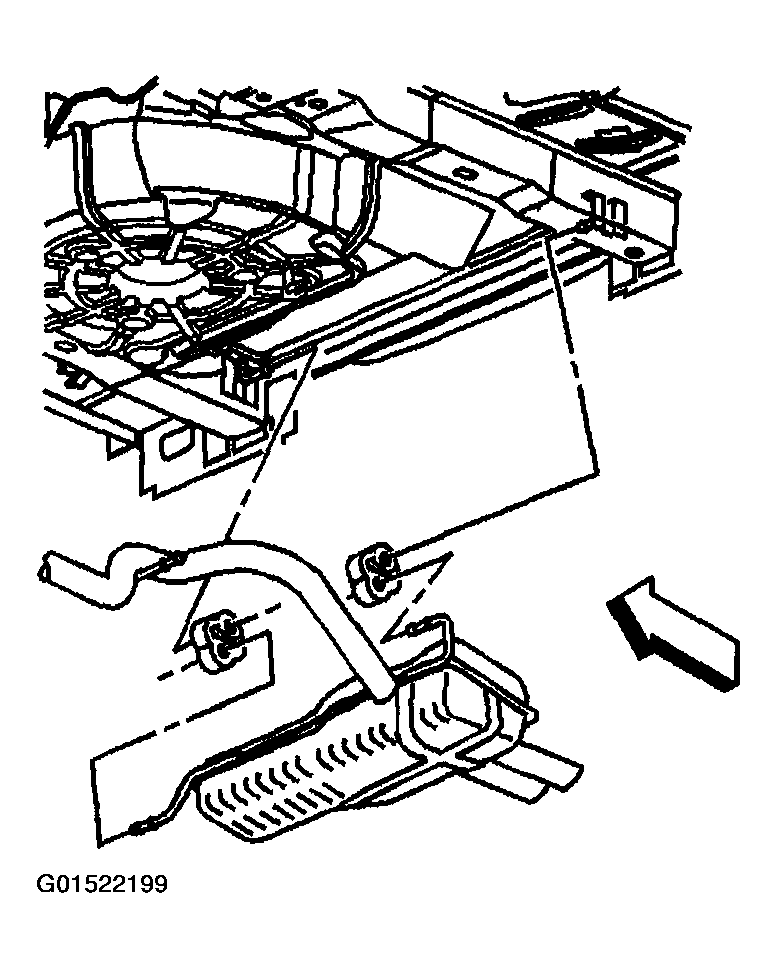

    Fig 1: Exhaust Muffler
    G01522199Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the exhaust muffler to the exhaust pipe.

    Tighten

    Tighten the nuts to 50 N.m (37 lb ft).

  4. Remove the support from the exhaust system.
  5. Lower the vehicle.
  6. Inspect the exhaust system for leaks and underbody contact.

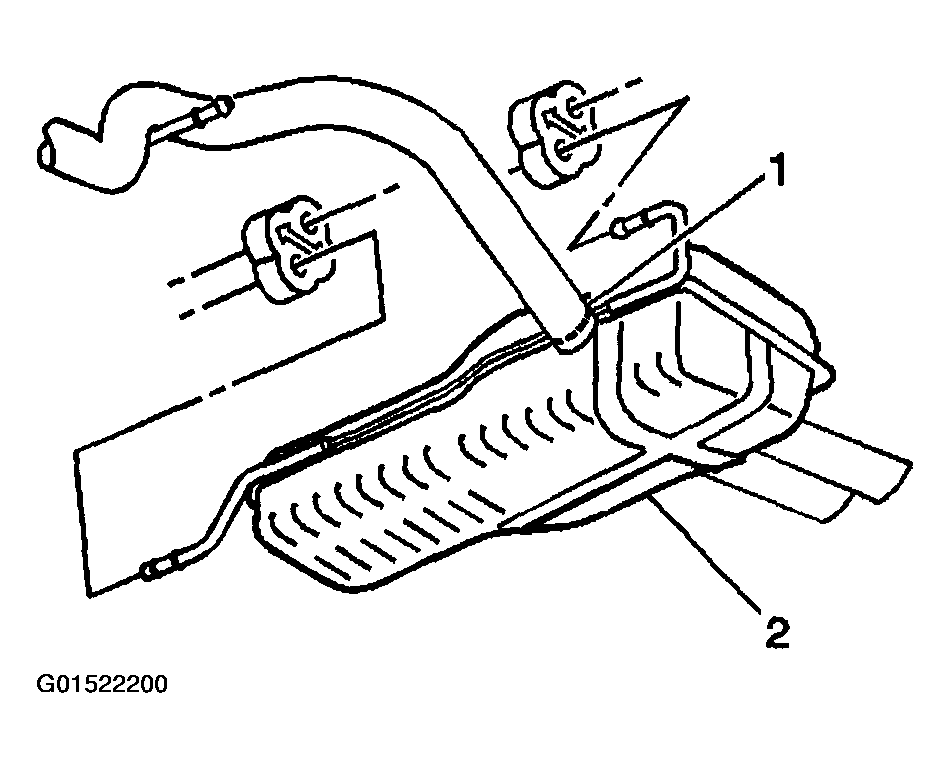

    Fig 2: Installing Exhaust Muffler To Exhaust Pipe
    G01522200Courtesy of GENERAL MOTORS CORP.
