Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the socket.
Install the shift control indicator lamp socket (4) to the trim plate (1). Rotate the socket clockwise to secure.
Install the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (PONTIAC) or TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (OLDSMOBILE) in Instrument Panel, Gages, and Console.

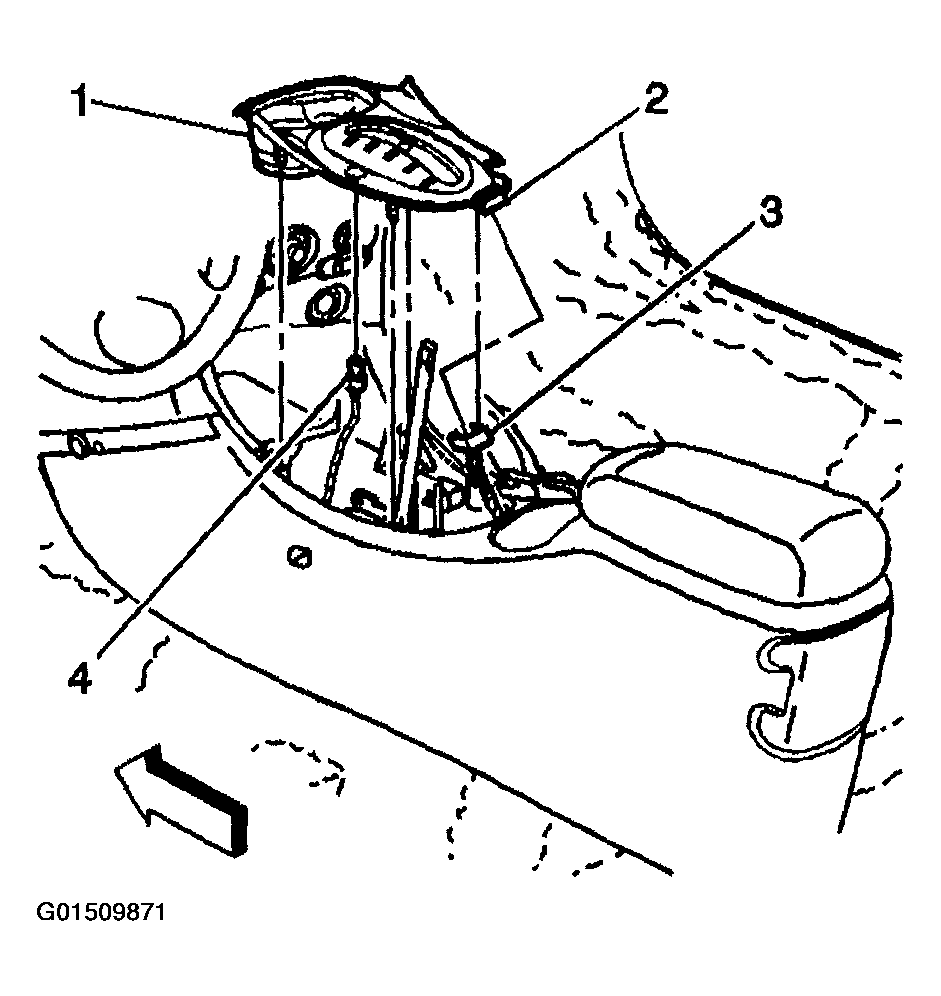

Fig 1: Installing Shift Control Indicator Lamp Socket To Trim Plate
Courtesy of GENERAL MOTORS CORP.
