Installation Procedure

  1. Install the rear ABS reluctor wheel (2) onto the rear axle shaft. Refer to REAR AXLE - ASSEMBLE (RPO (M41)) or REAR AXLE - ASSEMBLE (RPO (M59)) in Rear Drive Axle.
  2. Install the axle shaft. Refer to REAR AXLE - ASSEMBLE (RPO (M41)) or REAR AXLE - ASSEMBLE (RPO (M59)) in Rear Drive Axle.
  3. Perform DIAGNOSTIC SYSTEM CHECK - ABS .

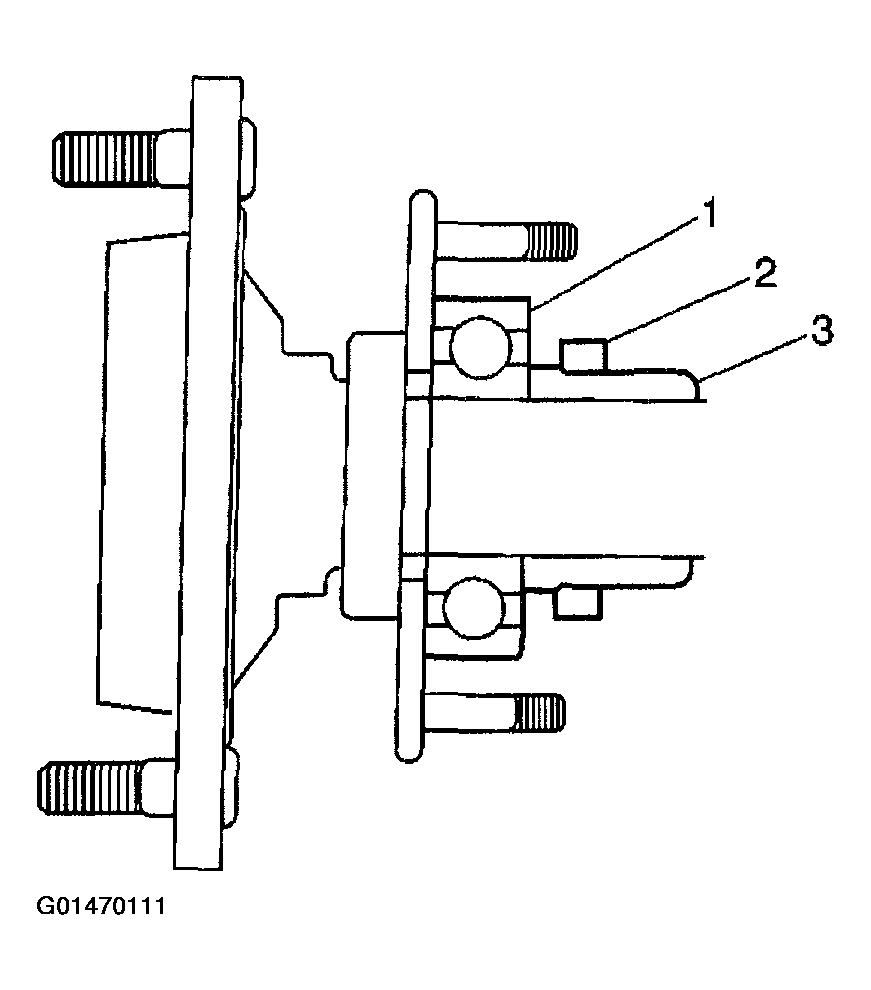

    Fig 1: Rear ABS Reluctor Wheel
    G01470111Courtesy of GENERAL MOTORS CORP.
