Installation Procedure

  1. Install the quarter window reveal molding (3) to the quarter window (2) by starting at the center and pressing the reveal molding into position.
  2. Prefit the quarter window reveal molding (3) and the quarter window (2) as an assembly to the body prior to the actual installation.
  3. Install the quarter window. Refer to QUARTER WINDOW REPLACEMENT  .

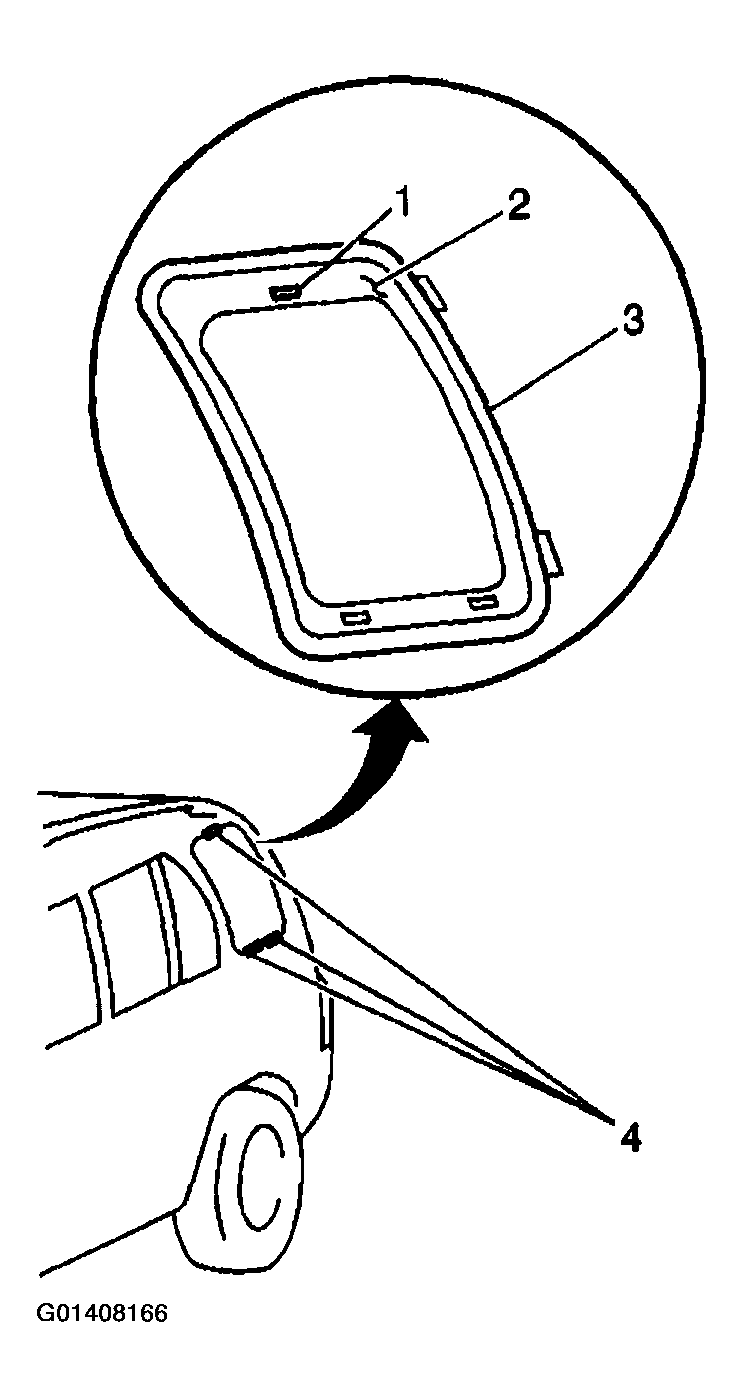

Fig 1: Installing Quarter Window Reveal Molding To Quarter Window
G01408166Courtesy of GENERAL MOTORS CORP.
