Removal Procedure

  1. Remove the instrument panel steering column opening trim plate. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  2. Slide the LOCK or the UNLOCK relay from the remote control door lock receiver bracket.
  3. Remove the relay (1) from the relay connector (2).

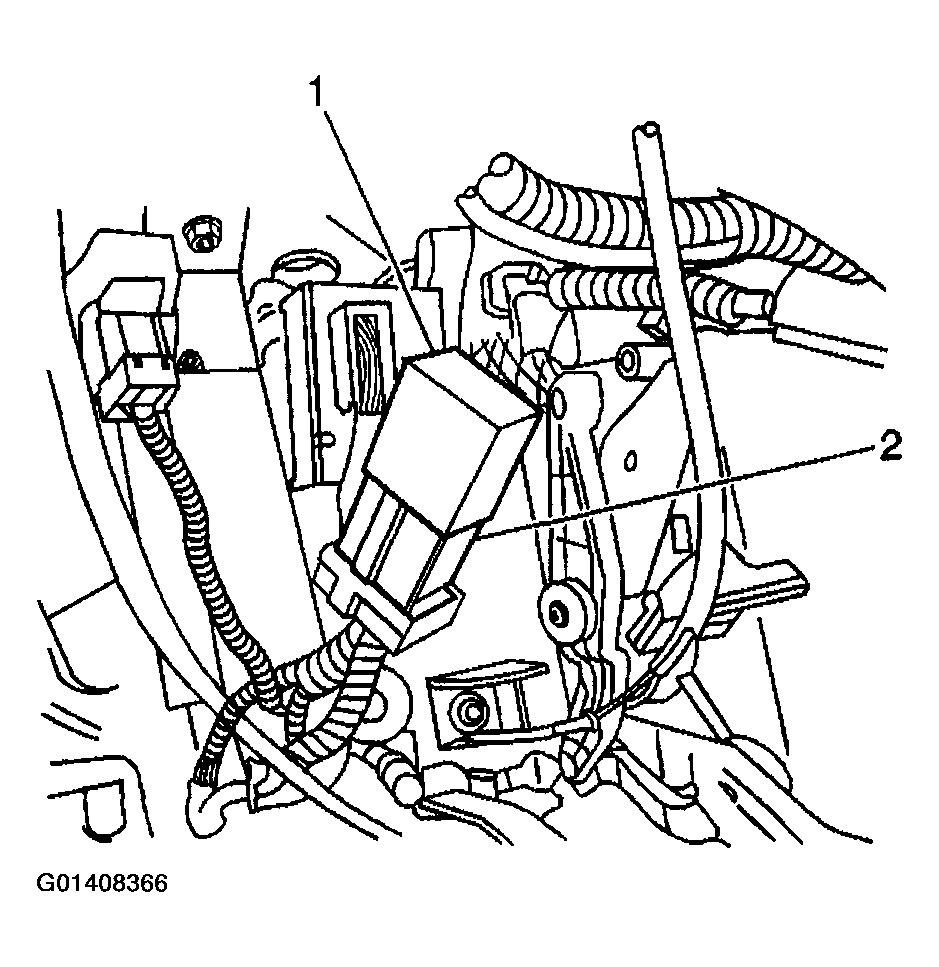

    Fig 1: Locating Power Door Lock Relay & Connector (1 Of 2)
    G01408366Courtesy of GENERAL MOTORS CORP.
