Installation Procedure

  1. Install the radio bracket (4) to the radio (3), if removed. Secure the bracket with the 4 screws.
  2. Connect the antenna lead (2) and electrical connector (1) to the radio (3).

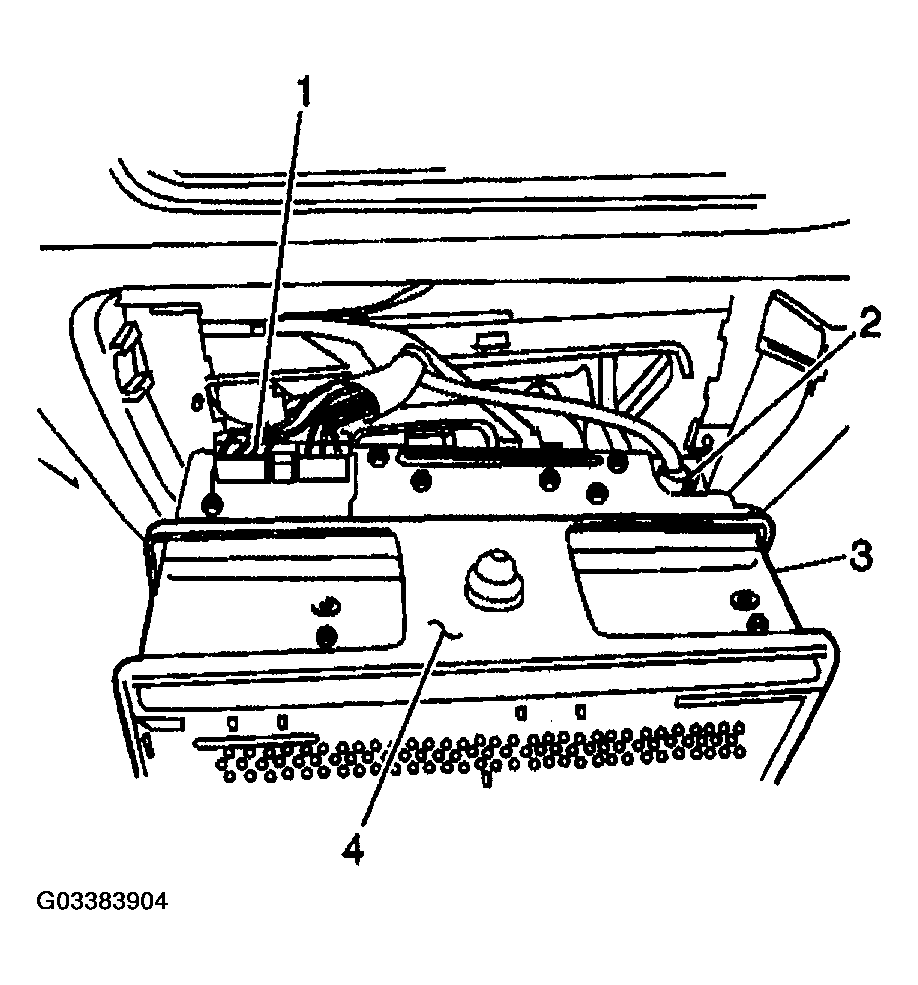

    Fig 1: Connecting Antenna Lead And Electrical Connector To Radio
    G03383904Courtesy of GENERAL MOTORS CORP.
  3. Install the radio to the instrument panel. Secure the radio with the 4 screws (1).
  4. Install the IP center trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER in Instrument Panel, Gages and Console.

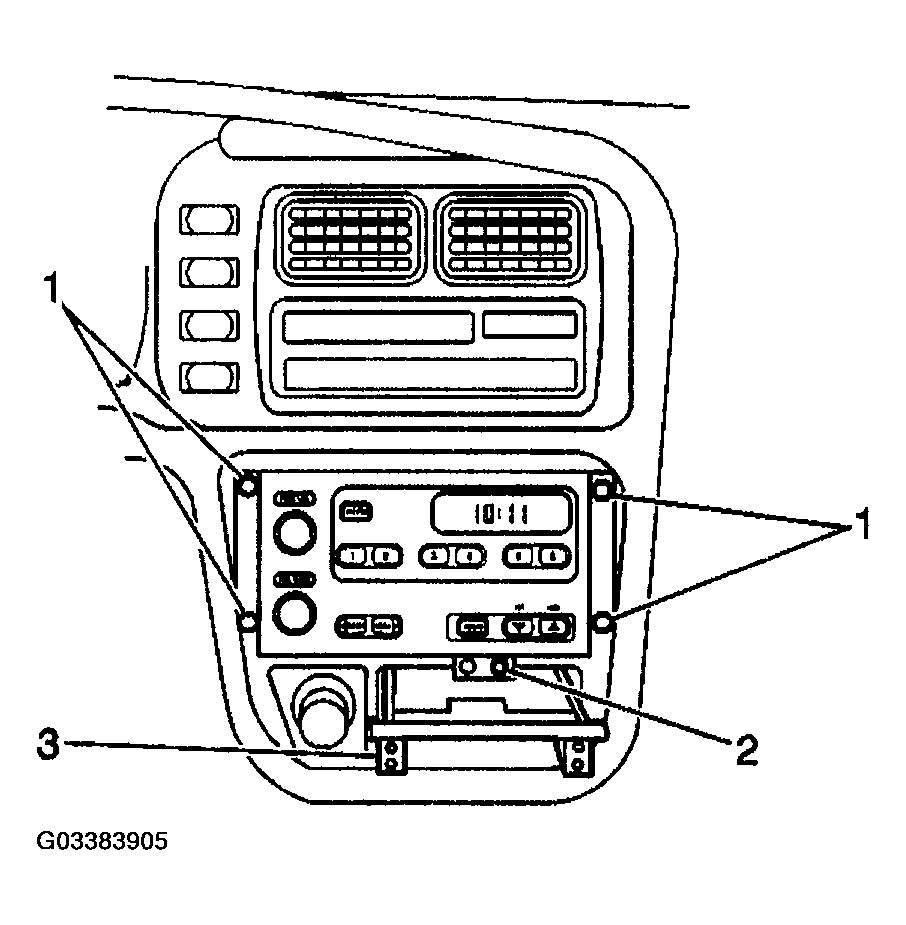

    Fig 2: Installing Radio To Instrument Panel
    G03383905Courtesy of GENERAL MOTORS CORP.
