Component Locations

Fig 1: Locating Accelerator Pedal Position (APP) Sensor

Courtesy of GENERAL MOTORS CORP.

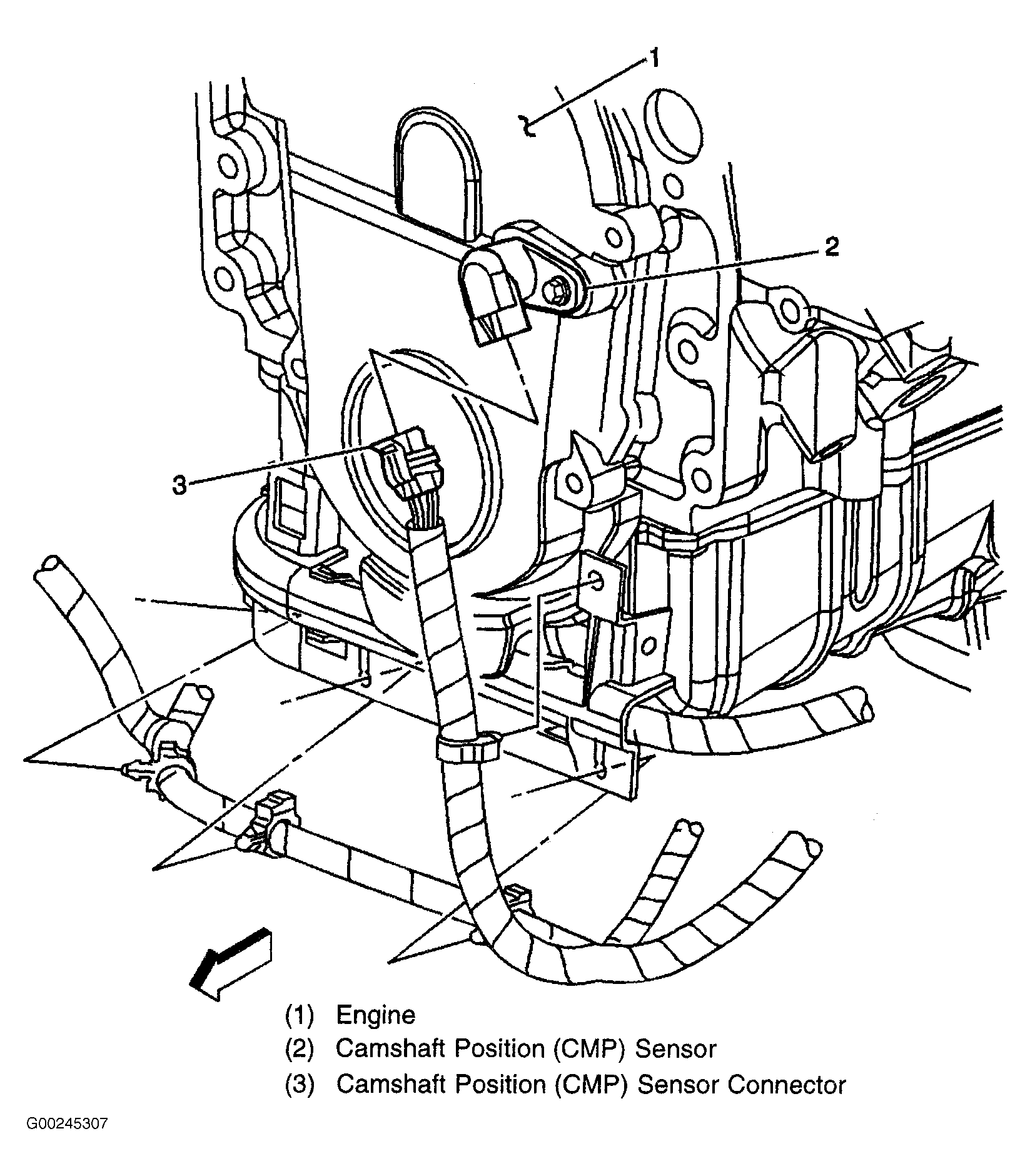

Fig 2: Locating Camshaft Position (CMP) Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating EVAP Canister Purge Solenoid

Courtesy of GENERAL MOTORS CORP.

Fig 4: Locating EVAP Canister & Vent Valve

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating Exhaust Gas Recirculation Valve, Crankshaft Position Sensor & Engine Oil Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

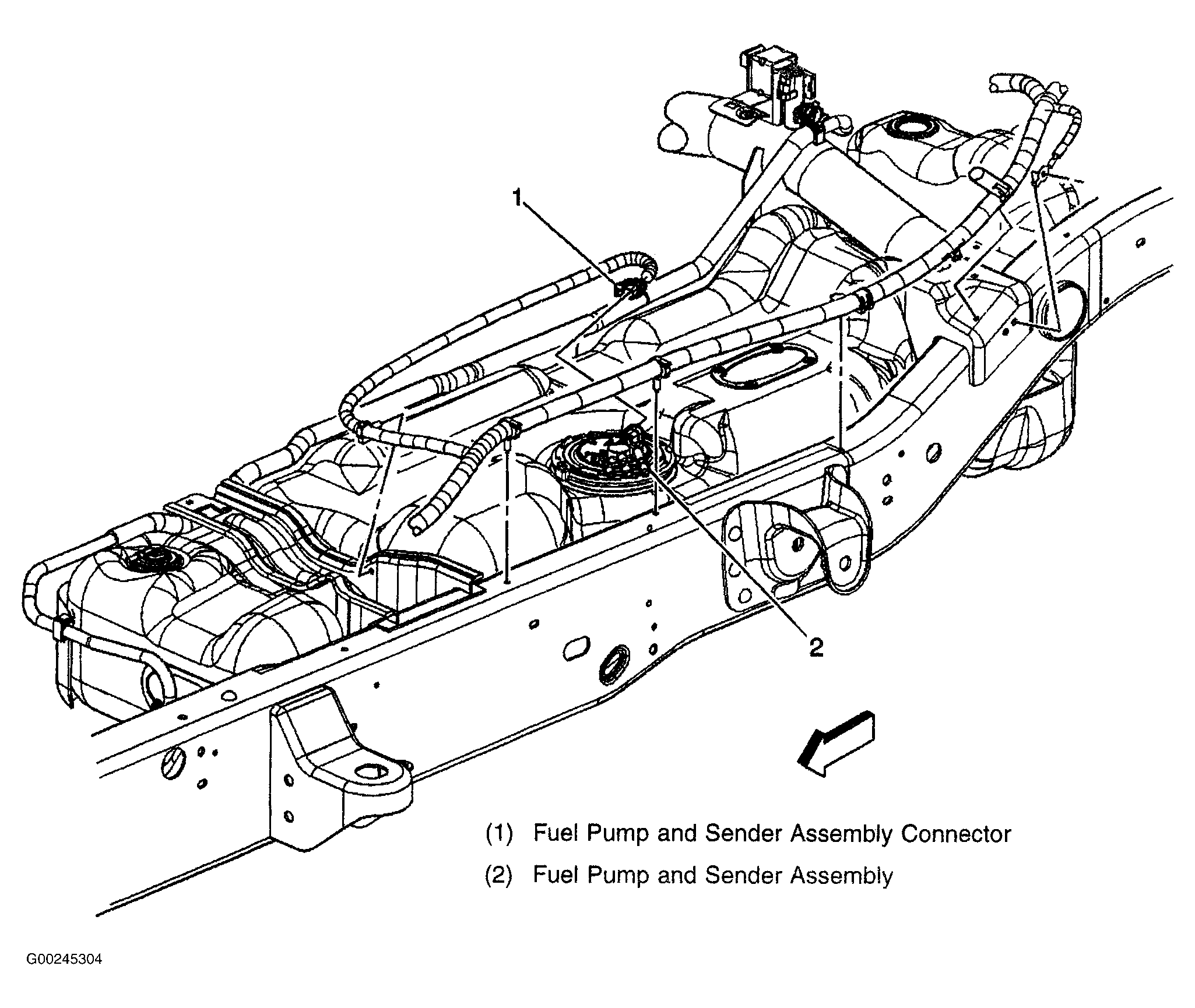

Fig 6: Locating Fuel Pump & Sender Assembly

Courtesy of GENERAL MOTORS CORP.

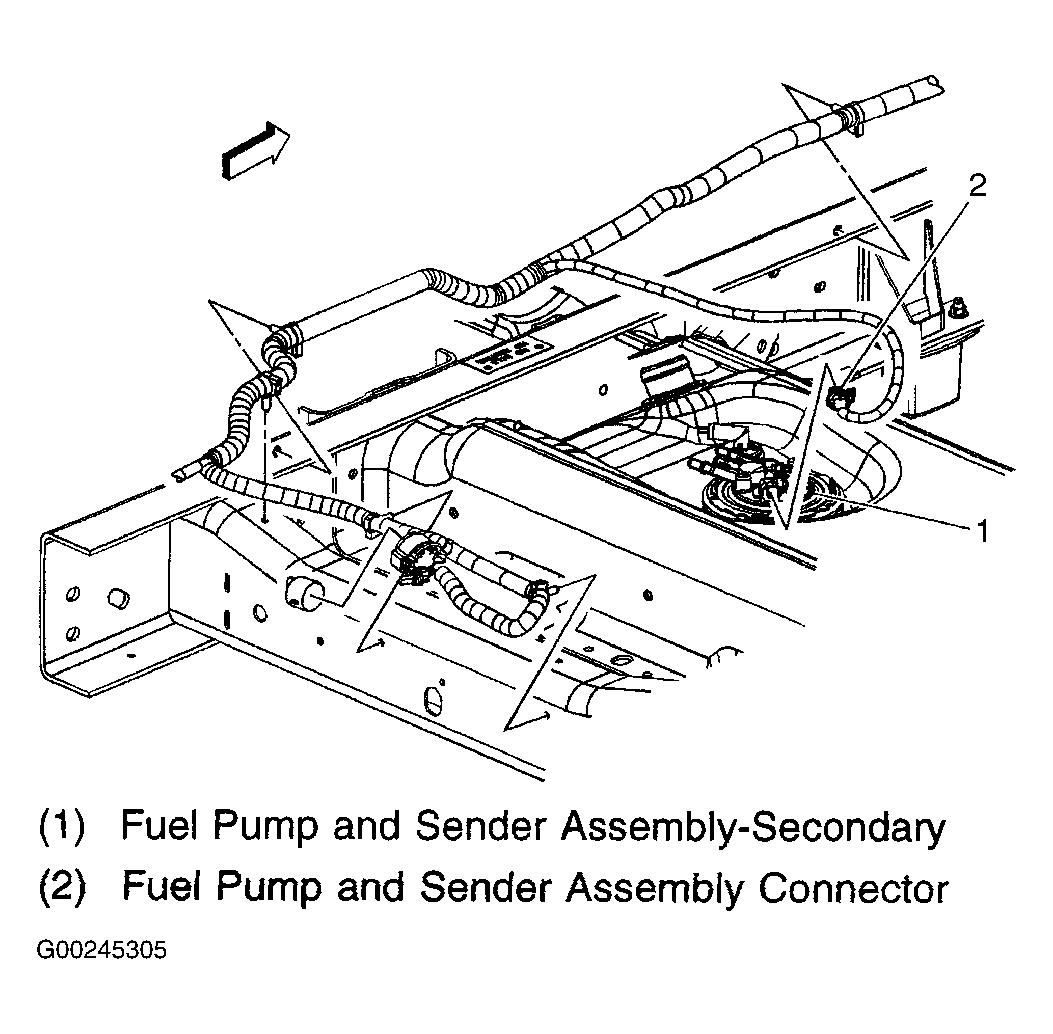

Fig 7: Locating Fuel Pump & Sender Assembly - Secondary

Courtesy of GENERAL MOTORS CORP.

Fig 8: Locating Fuel Pump Relay - Secondary

Courtesy of GENERAL MOTORS CORP.

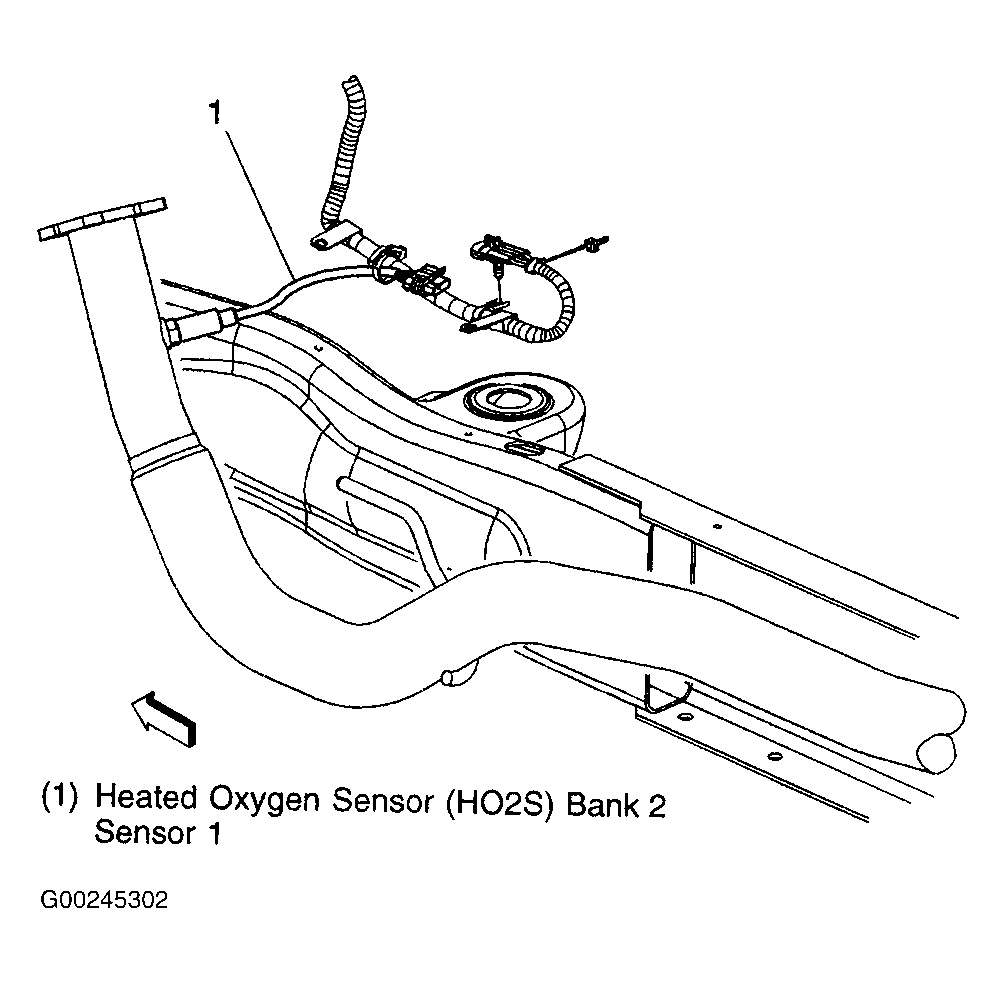

Fig 9: Locating Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1

Courtesy of GENERAL MOTORS CORP.

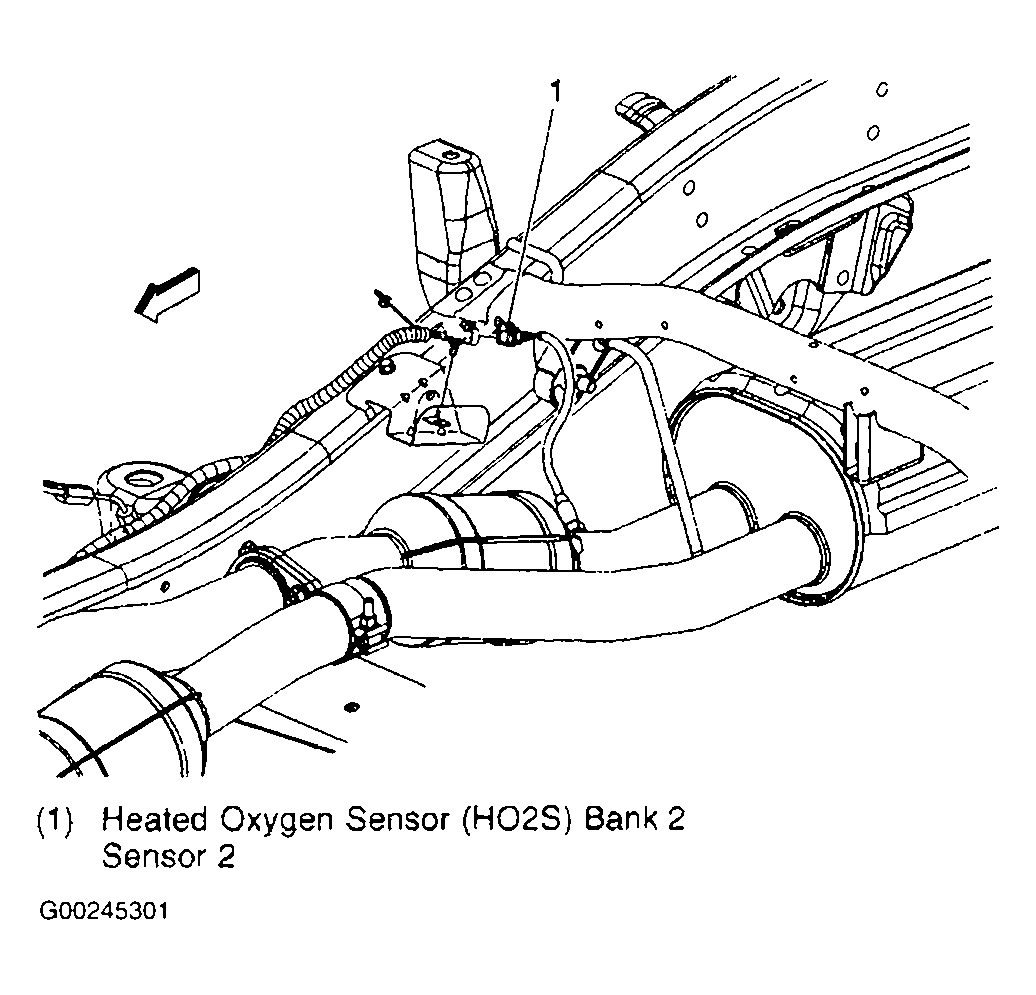

Fig 10: Locating Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2

Courtesy of GENERAL MOTORS CORP.

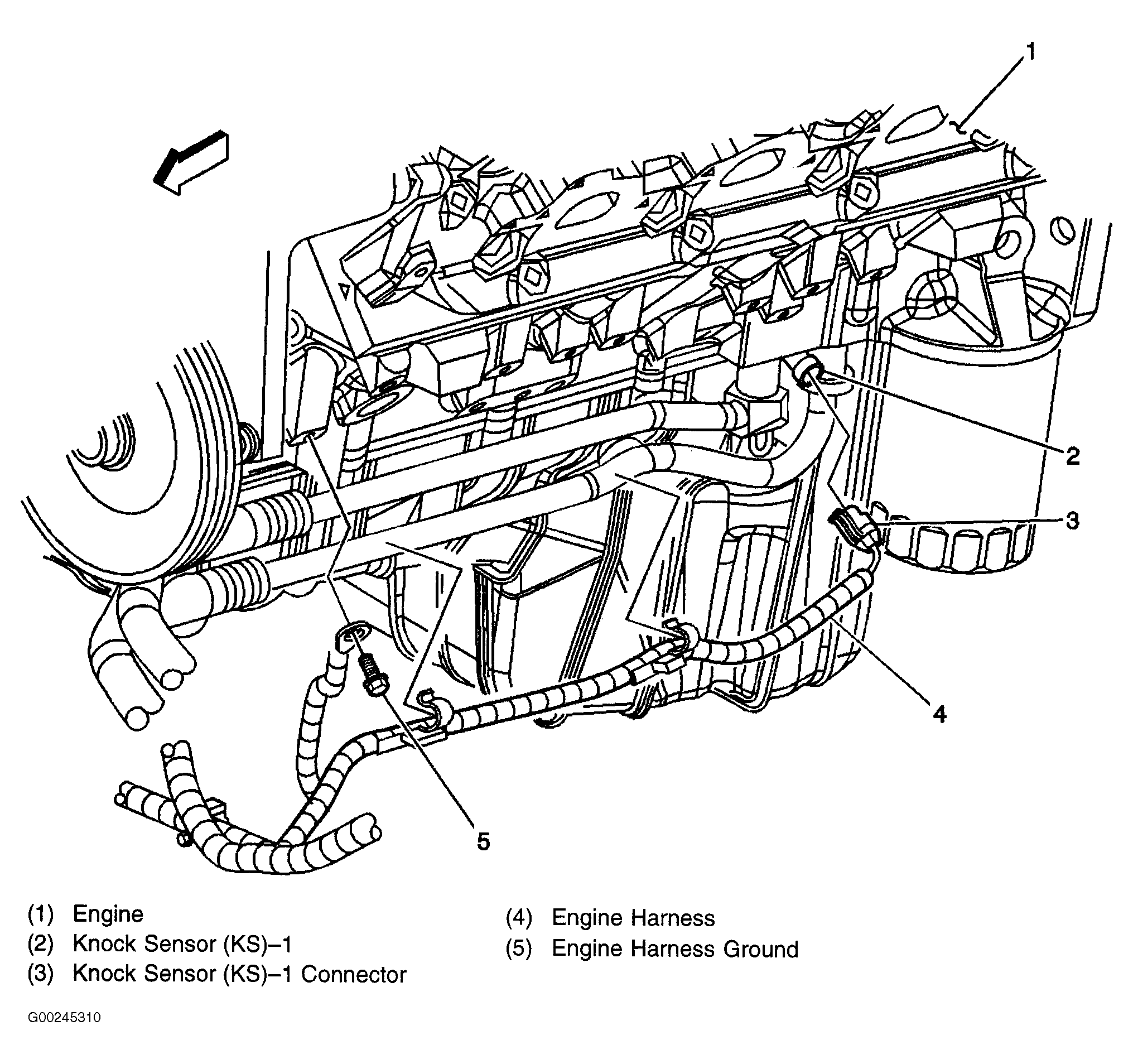

Fig 11: Locating Knock Sensor (KS) - 1

Courtesy of GENERAL MOTORS CORP.

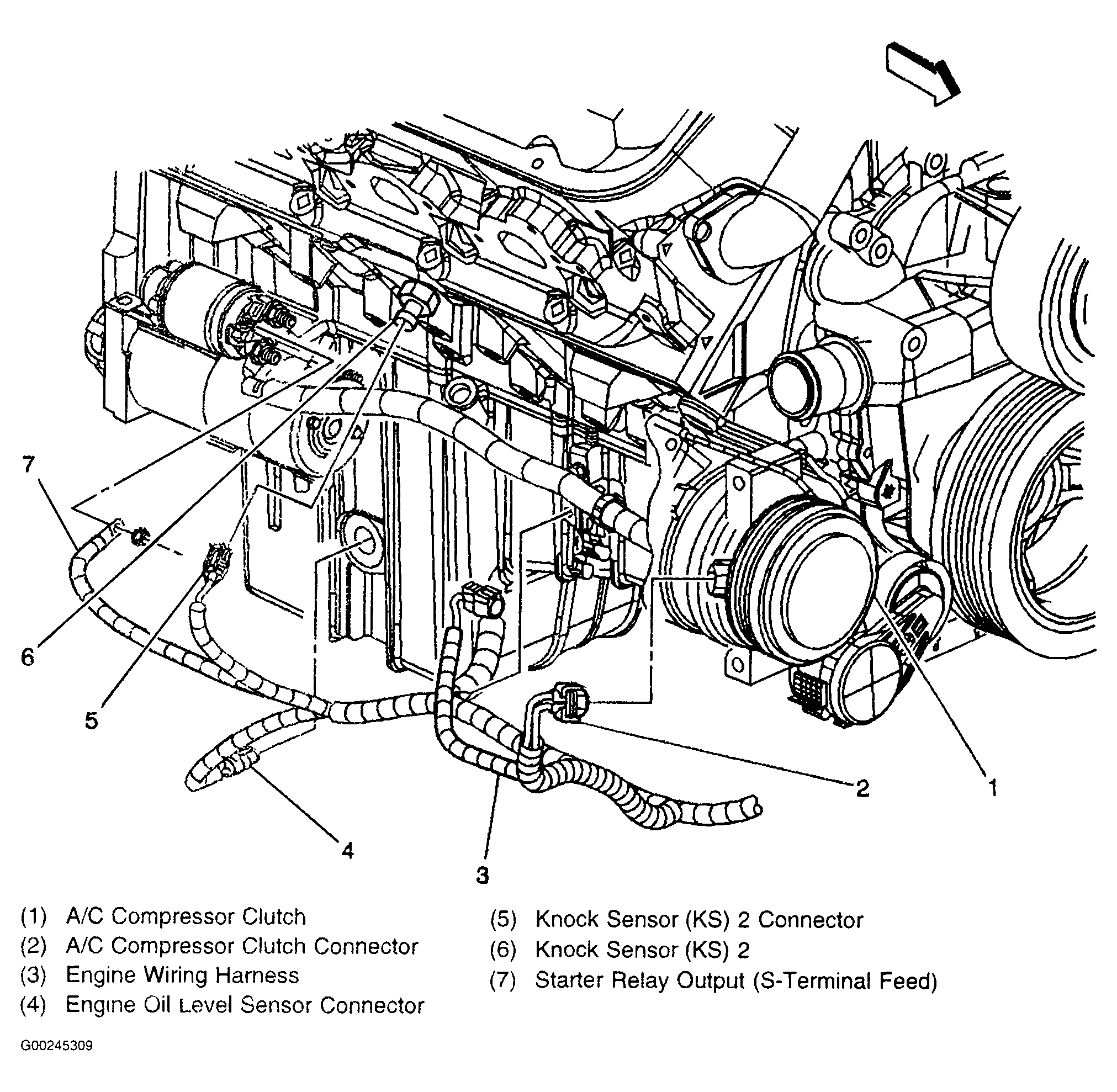

Fig 12: Locating Knock Sensor (KS) - 2

Courtesy of GENERAL MOTORS CORP.

Fig 13: Locating Mass Air Flow/Intake Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

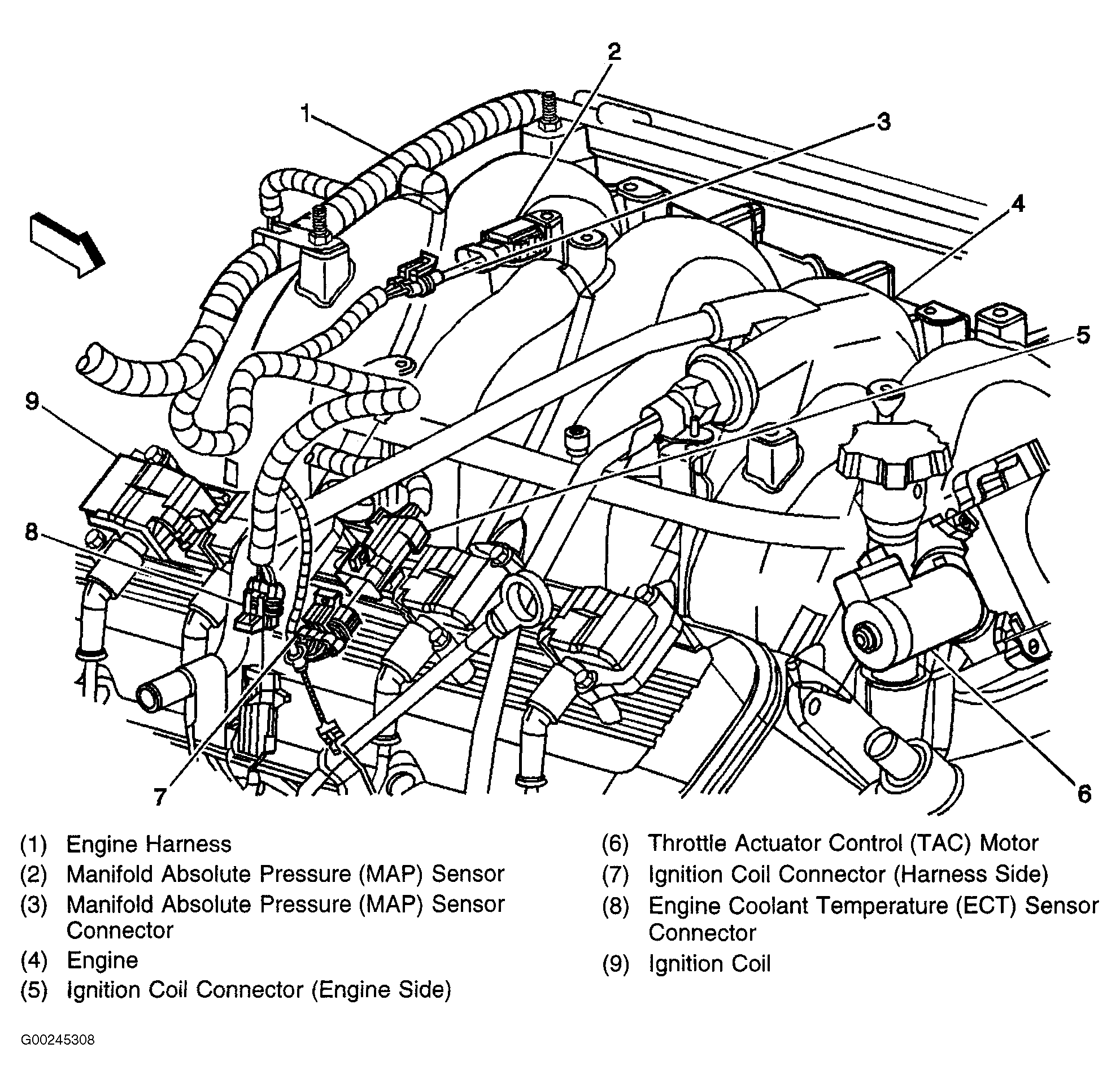

Fig 14: Locating Manifold Absolute Pressure (MAP) Sensor

Courtesy of GENERAL MOTORS CORP.

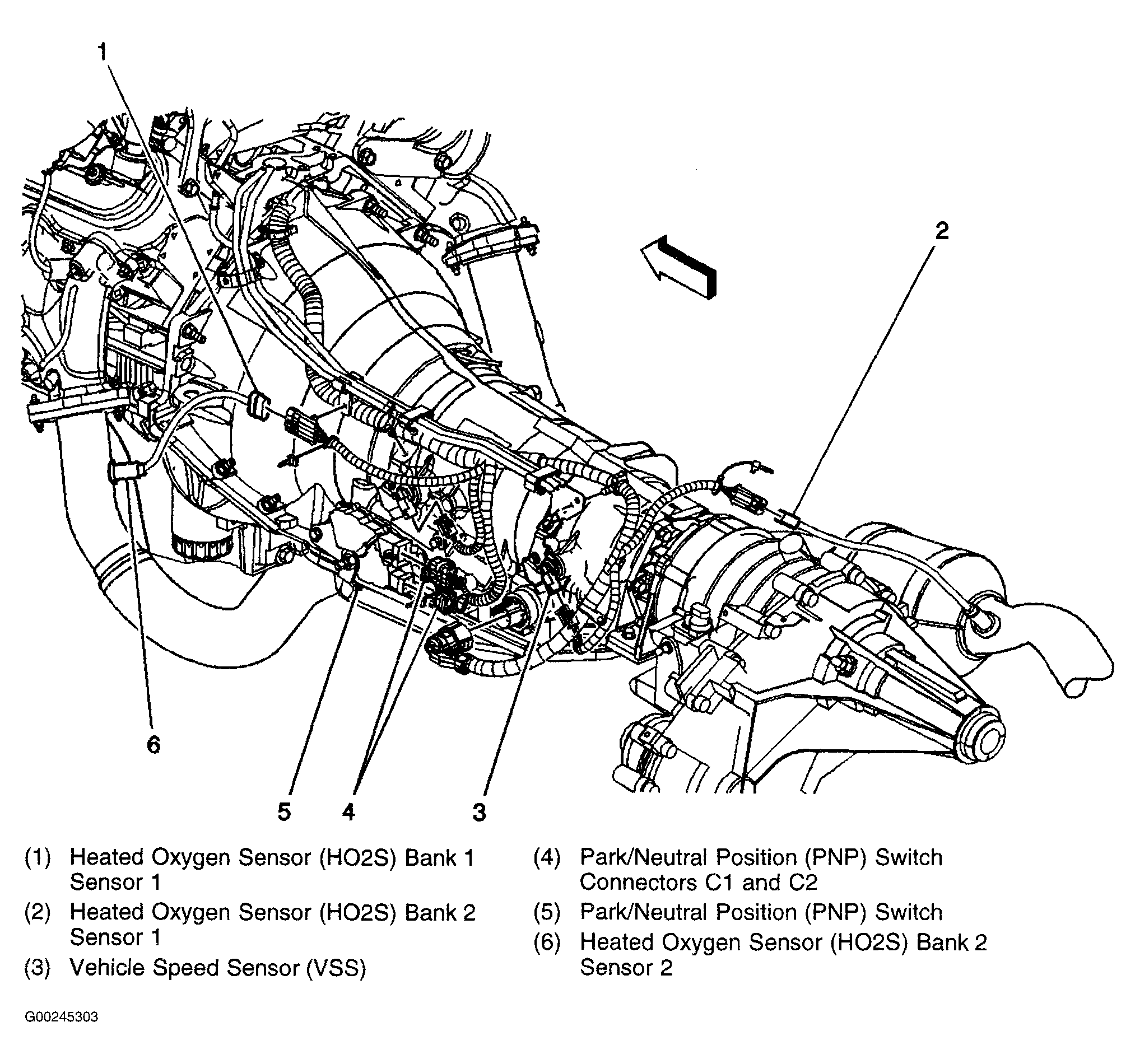

Fig 15: Locating Park/Neutral Position (PNP) Switch

Courtesy of GENERAL MOTORS CORP.

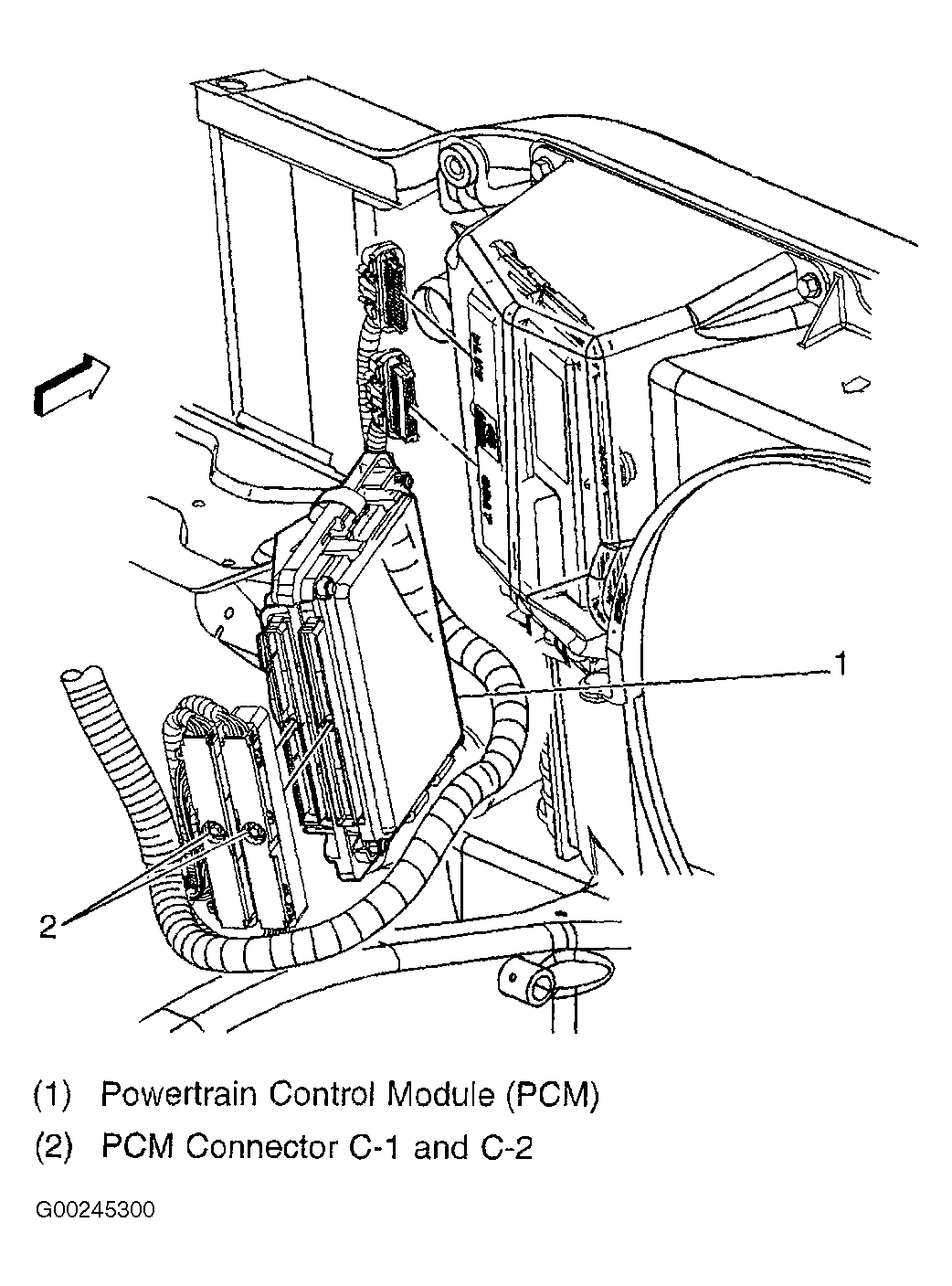

Fig 16: Locating Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.

Fig 17: Locating Throttle Actuator Control (TAC) Module

Courtesy of GENERAL MOTORS CORP.

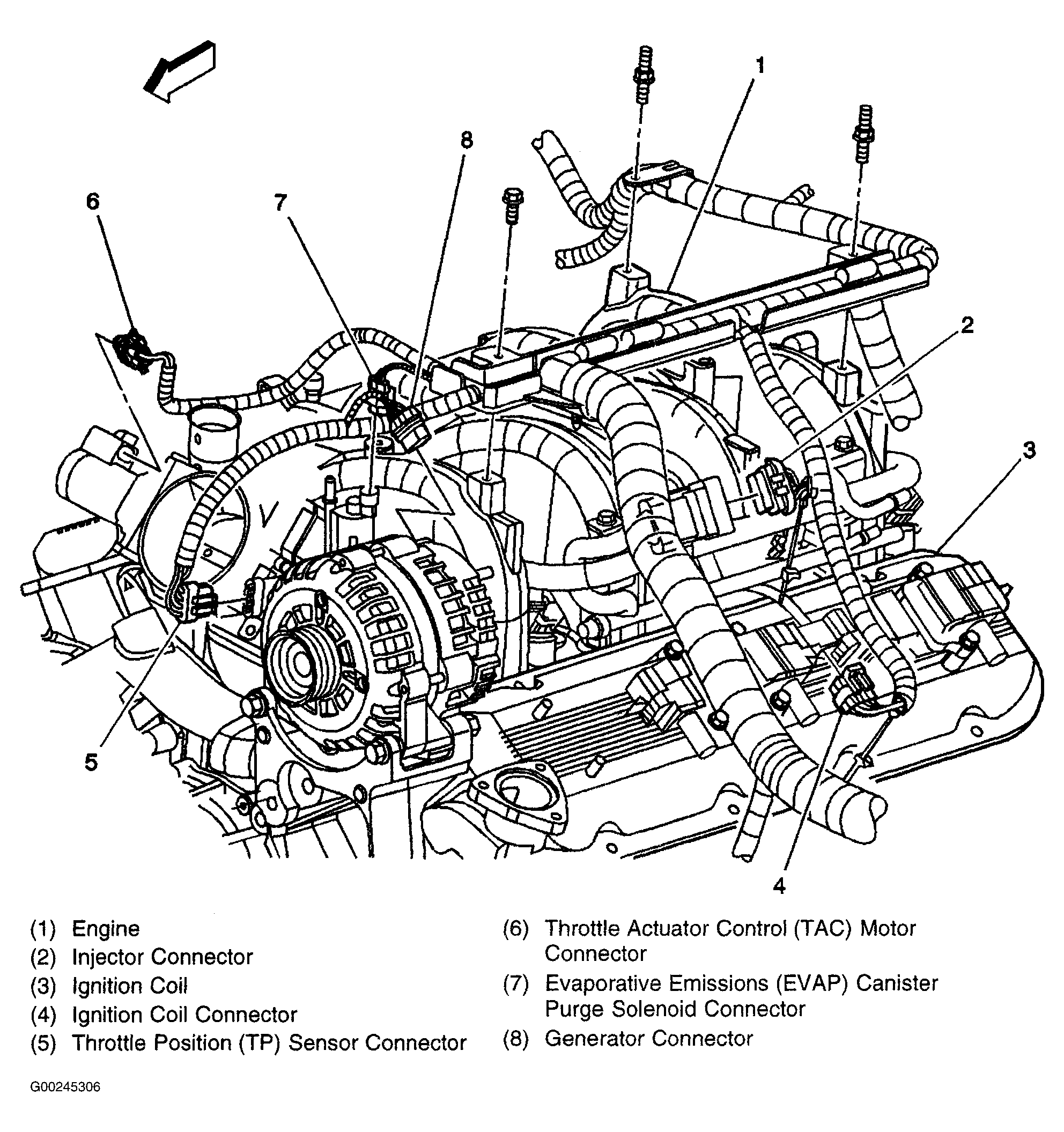

Fig 18: Locating Throttle Position (TP) Sensor

Courtesy of GENERAL MOTORS CORP.
