Removal Procedure

  1. Remove the rear seat, if required. Refer to SEAT REPLACEMENT-REAR (EXTENDED CAB W/4TH DOOR) or SEAT REPLACEMENT-REAR (EXTENDED CAB) or SEAT REPLACEMENT-REAR (60/40 SPLIT) .
  2. Remove the rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT-FRONT SEAT .
  3. Remove the rear seat belt to body bolts.
  4. Remove the rear seat belt retractor to body bolt (1).

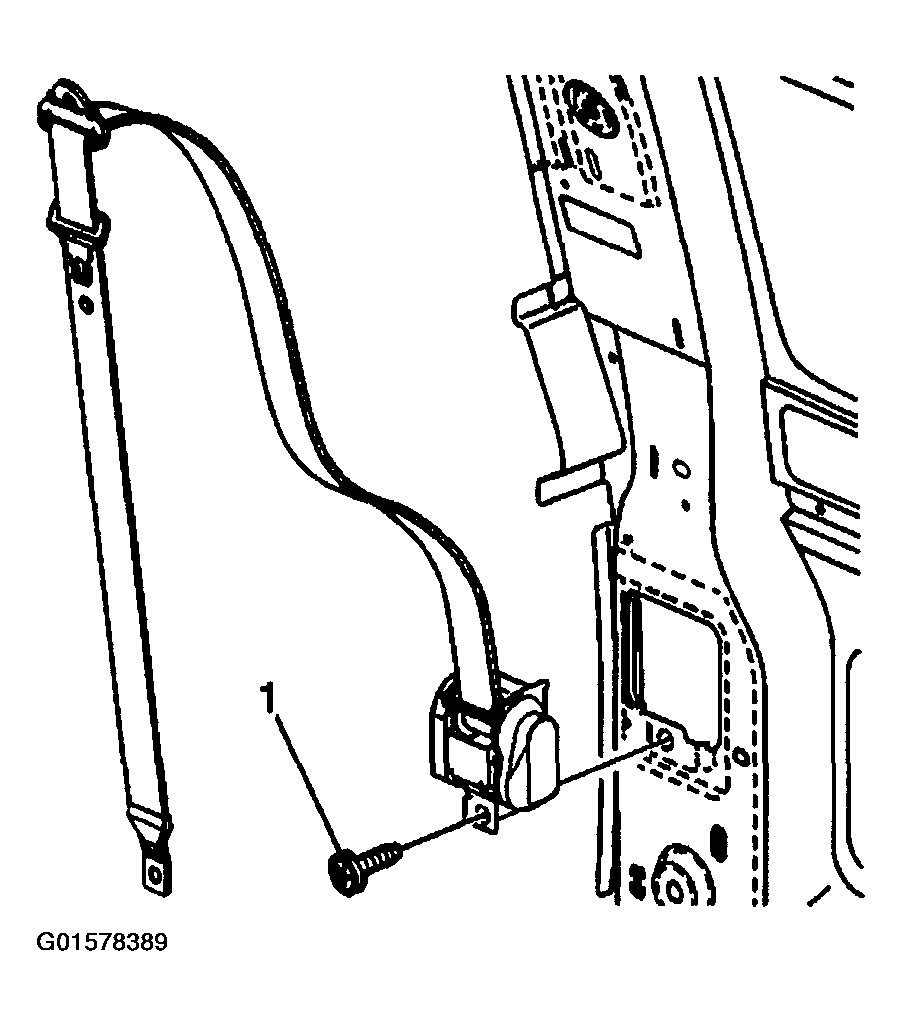

    5. Fig 1: Removing Rear Seat Belt Retractor To Body Bolts (Crew Cab)
    G01578389Courtesy of GENERAL MOTORS CORP.
  5. Remove the retractor from the vehicle.
