Installation Procedure

  1. Install the seat belt buckle assembly to the center front seat.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the seat belt buckle bolt.

    Tighten

    Tighten the bolt to 53 N.m (39 lb ft).

  3. Install the seat belt latch assembly to the center front seat.

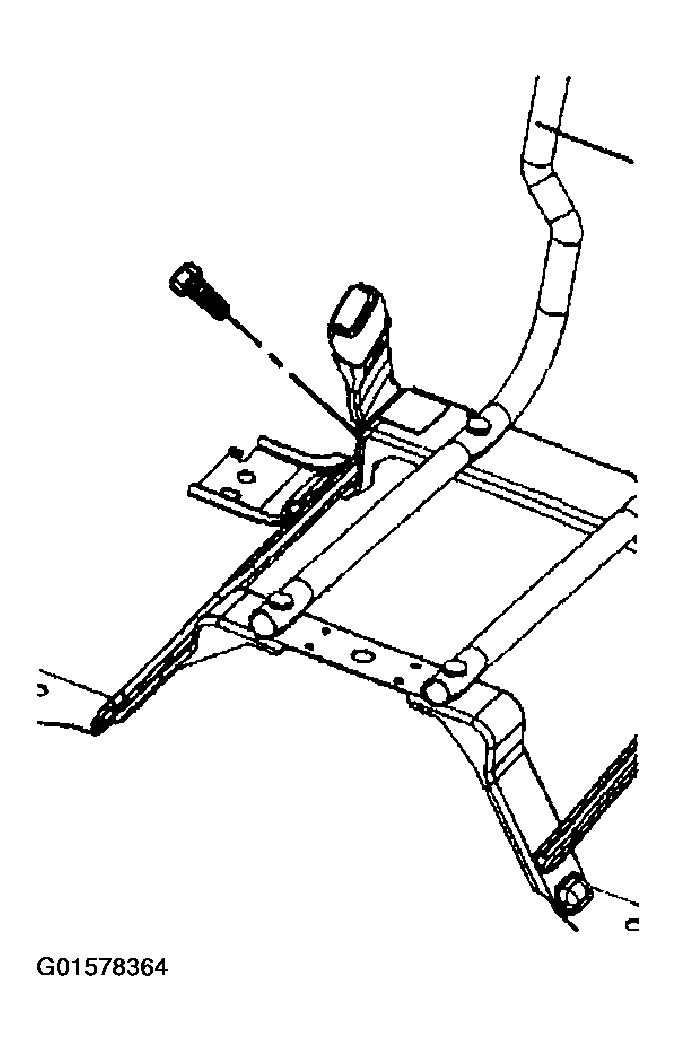

    Fig 1: Installing Center Front Seat Belt Buckle Bolt
    G01578364Courtesy of GENERAL MOTORS CORP.
  4. Install the seat belt latch bolt.

    Tighten

    Tighten the bolt to 53 N.m (39 lb ft).

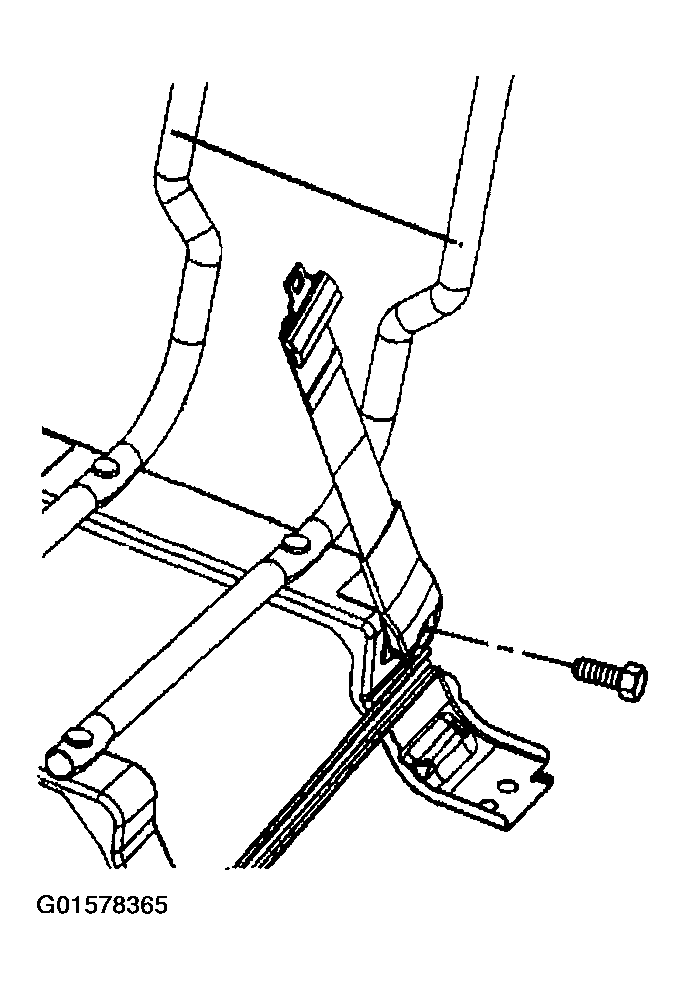

    Fig 2: Installing Center Front Seat Belt Latch Bolt
    G01578365Courtesy of GENERAL MOTORS CORP.
