Installation Procedure

  1. Position the buckle assembly to the floor panel stud.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the rear seat belt buckle nuts.

    Tighten

    Tighten the nuts to 53 N.m (39 lb ft).

  3. Fold the rear seat down.
  4. Pull the seat belt buckle through the seat cushion.

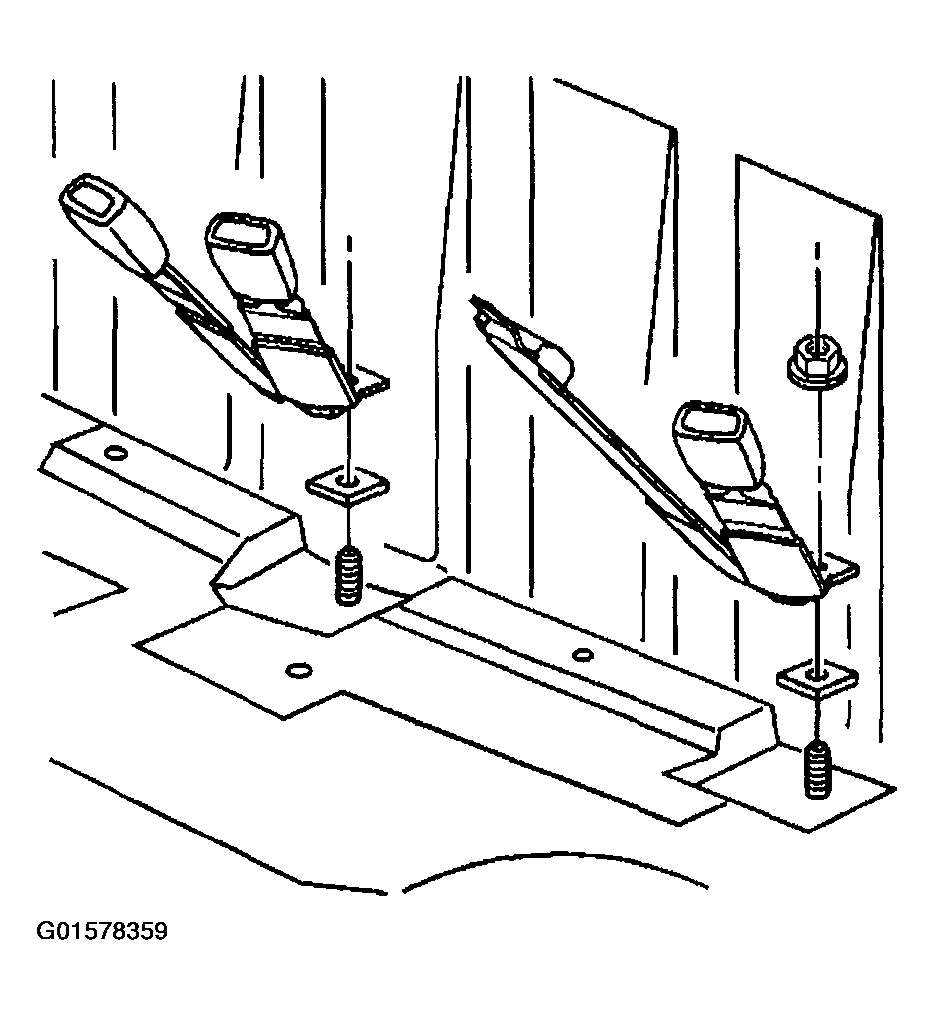

    Fig 1: Rear Seat Belt Buckle & Latch (Extended Cab)
    G01578359Courtesy of GENERAL MOTORS CORP.
