Installation Procedure

  1. Install the seat belt buckle in the vehicle.
  2. Connect the electrical connection (2).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the front seat belt buckle nut (1).

    Tighten

    Tighten the nut to 53 N.m (39 lb ft).

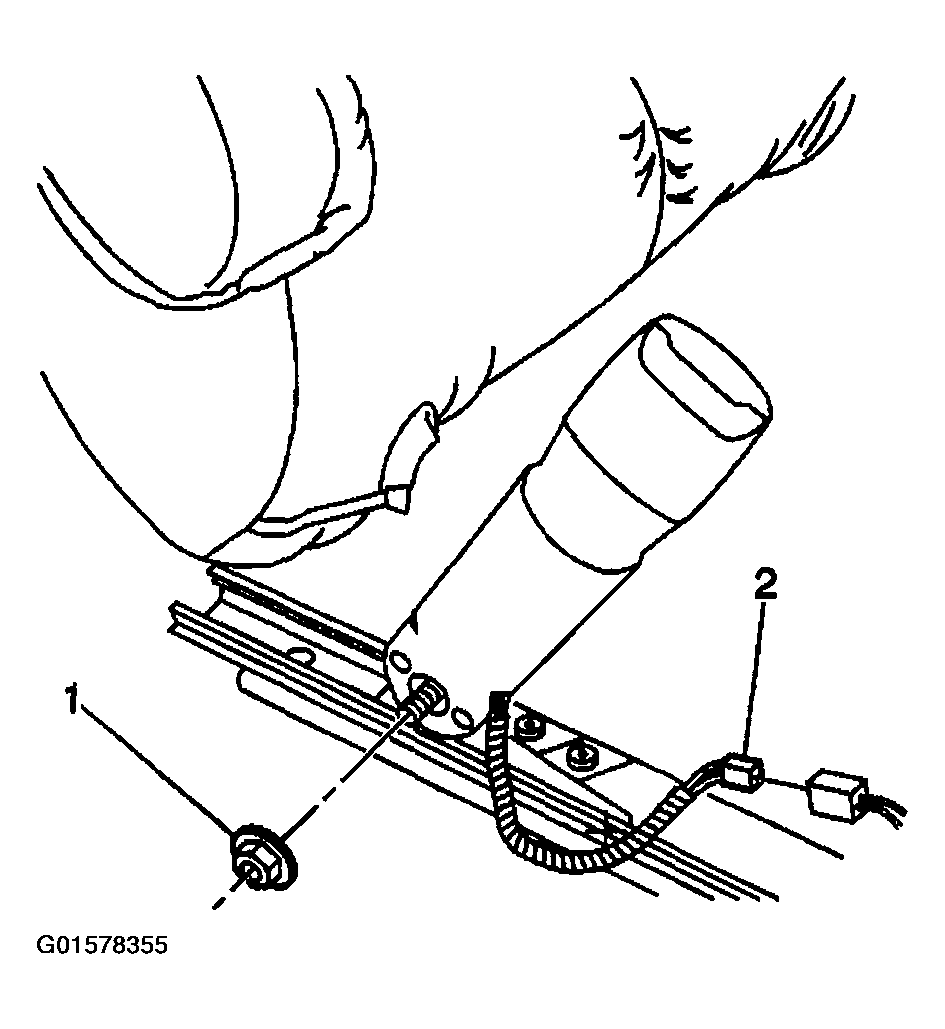

    Fig 1: Installing Front Seat Belt Buckle Nut
    G01578355Courtesy of GENERAL MOTORS CORP.
