Engine Oil Level Switch Connector End View (LB7)

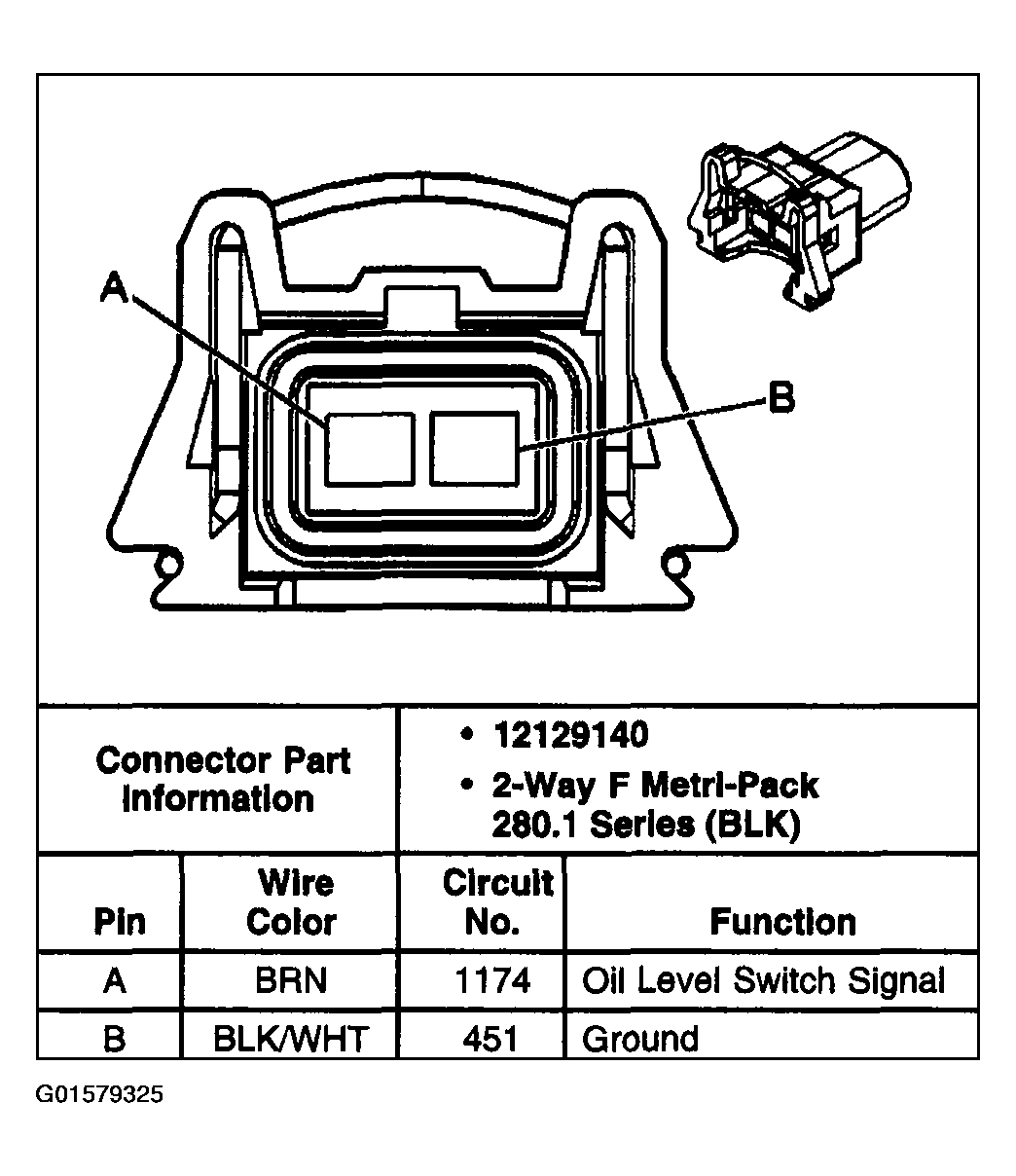

Fig 1: Engine Oil Level Switch Connector End View (LB7)

G01579325

Courtesy of GENERAL MOTORS CORP.
