Outside Mirror Schematics

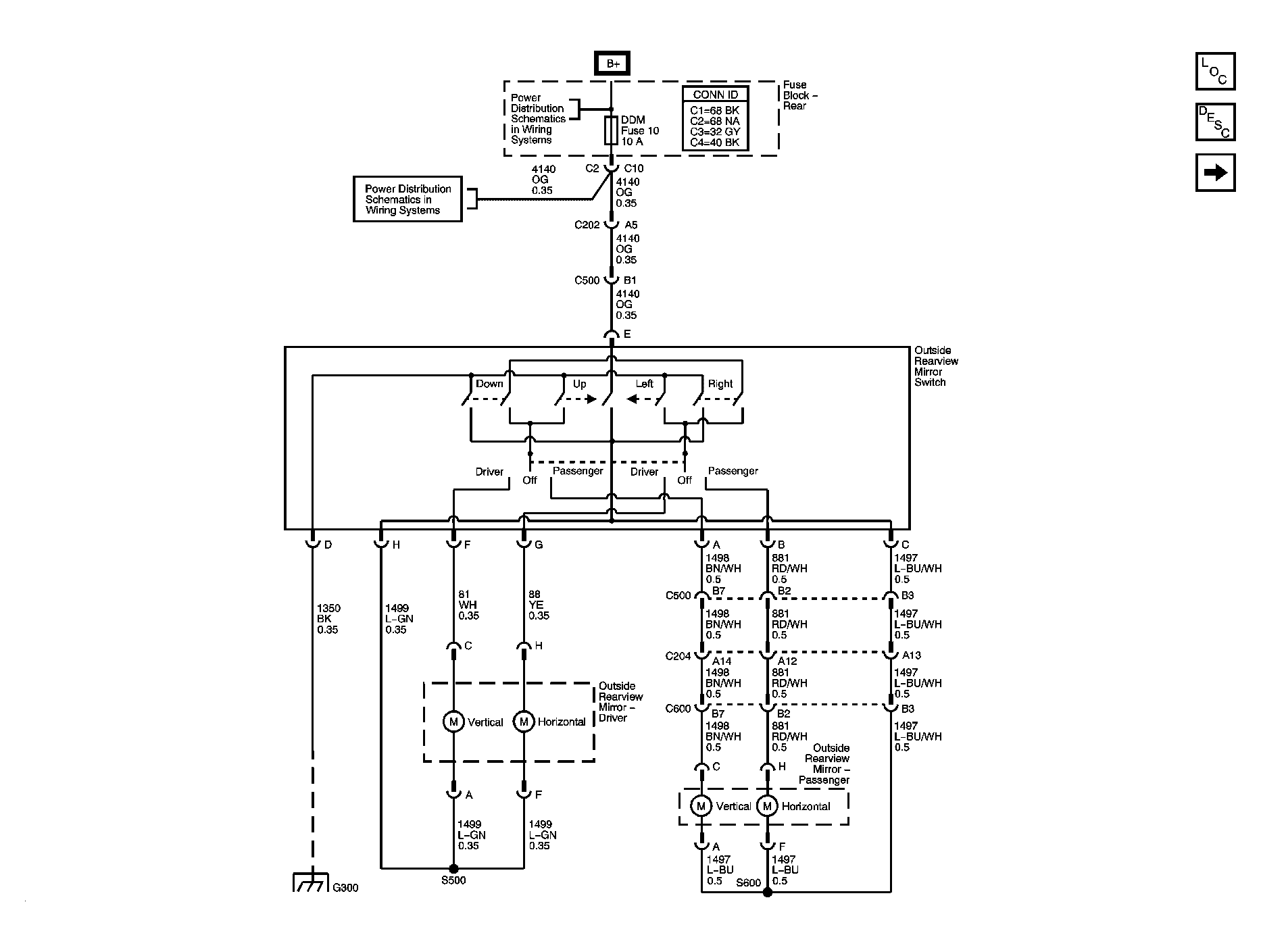

Fig 1: Power Mirrors Schematic

GM1219273

Courtesy of GENERAL MOTORS CORP.

Fig 2: Heated Mirrors Schematic

GM1219275

Courtesy of GENERAL MOTORS CORP.
