Folding Top Disassembled View

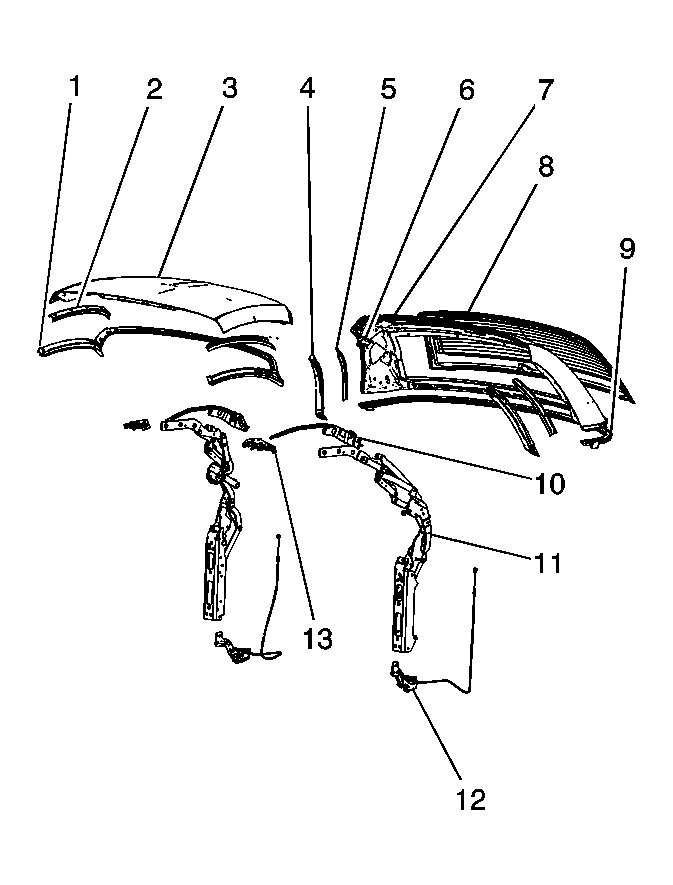

Fig 1: Roof Panel & Lift Mechanism Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Weatherstrip Assembly - Front Panel
2	Retainer - Front Panel Seal Assembly RH
3	Panel Assembly - RF Front
4	Seal - Lock Pillar Glass Run Channel - RH
5	Retainer - Glass Run Channel B-Pillar RH
6	Striker Assembly - Panel to Panel
7	Panel Assembly - RF RR
8	Window Assembly - F/Top RR
9	Weatherstrip Assembly - RR Panel
10	Latch Assembly - Panel LH
11	Rail Assembly - Side LH
12	Capture Assembly - Top Stack Down - LH
13	Assembly - Alignment Pin LH

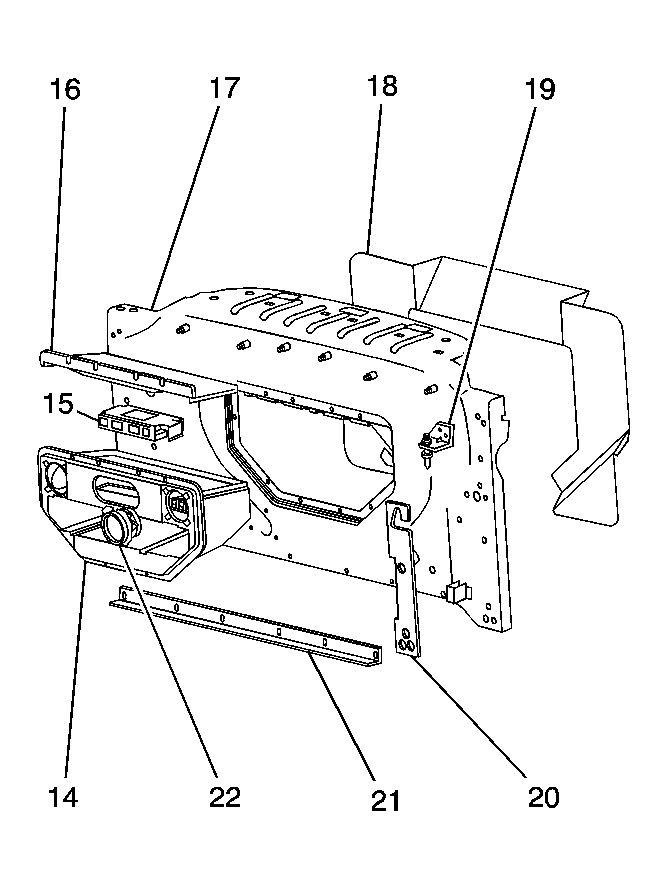

Fig 2: Back Seat Body Panel Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
14	Bin Assembly - Bulkhead
15	Module Assembly - RF Retractable
16	Lid - Bulkhead Bin
17	Front Bulkhead Assembly - Primed
18	Acoustic Insulation - Front Bulkhead
19	Bracket Assembly - Front Bulkhead Locator LH
20	Spacer Bulkhead - LH
21	Floor Bracket Front Bulkhead
22	Base Speaker - RDO 3.5 Inch

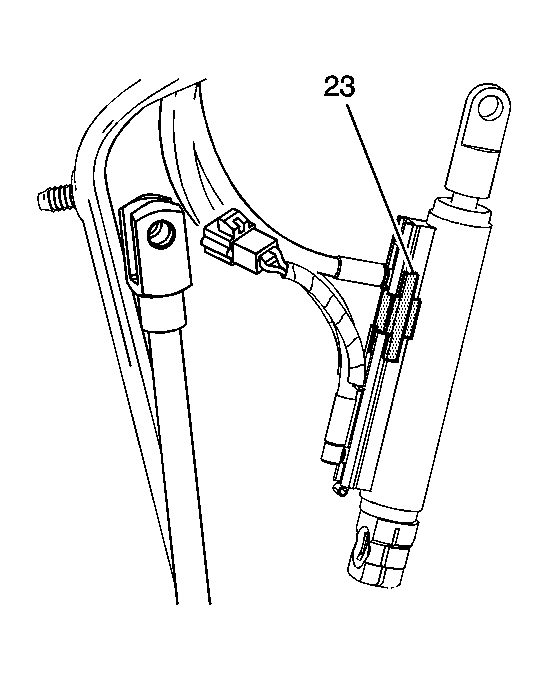

Fig 3: Stowage Lid Hall Effect Sensor Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
23	Cylinder - Tonneau Latch

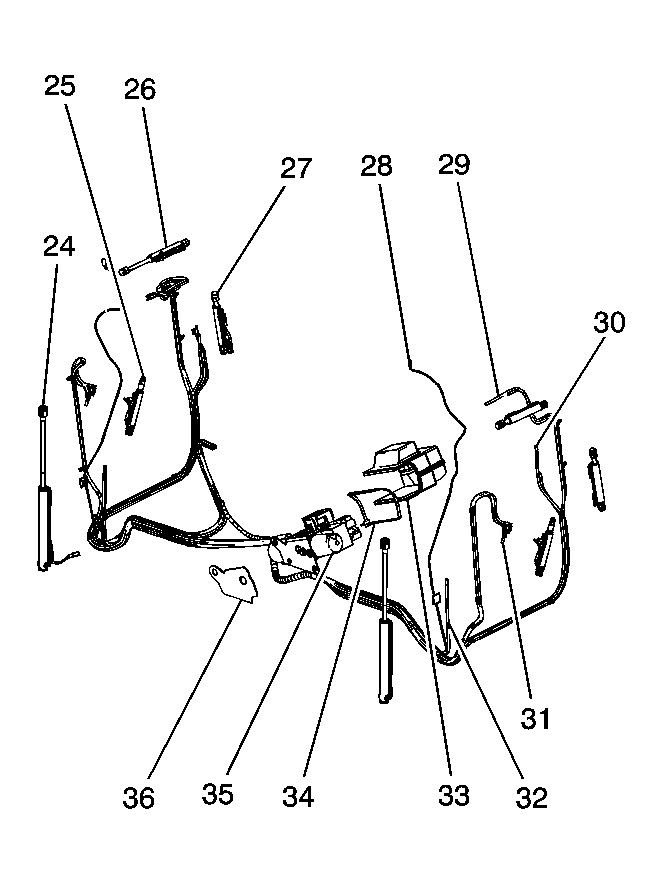

Fig 4: Hydraulic Pump & Hoses Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
24	Cylinder - Top HYD Drive RH
25	Cylinder Assembly - RF Retract PNL STOW COMPT LID LAT
26	Cylinder Assembly - RF Retract STOW COMPT CLOSEOUT PNL ACTR
27	Cylinder Assembly - RF Retract PNL STOW COMPT LID
28	Defrost Wire - Backlite
29	Hose Assembly - RF Retract PNL STOW COMPT CLSOUT PNL ACTR HYD
30	Hose Assembly - RF Retract PNL STOW COMPT LID ACTR CYL HYD
31	Hose Assembly - RF Retract PNL STOW COMPT LID LAT HYD
32	Hose Set - Top HYD Drive CYL RH
33	Hydraulic Motor Housing
34	Strap - Motor Housing Cover
35	Electro-HYD Pump Unit
36	Bracket - Hydraulic System (part is POA to hydraulic system)

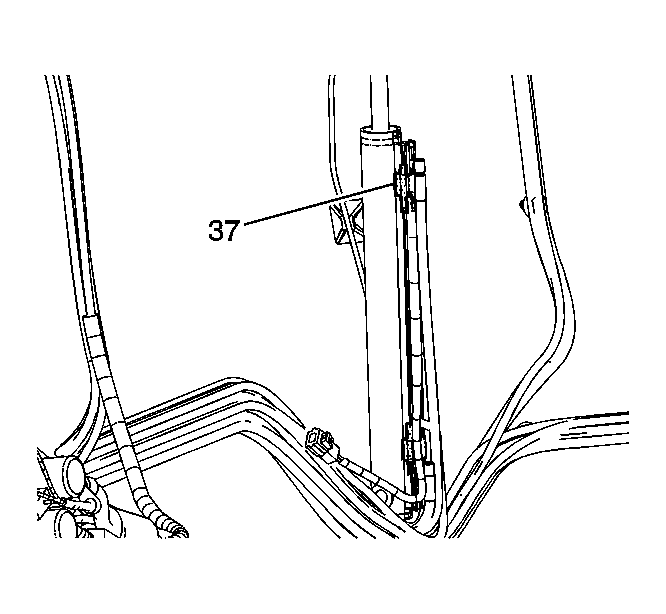

Fig 5: Main Lift Cylinder Hall Effect Sensors Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
37	Hall Effect Sensor - Top HYD Drive Cyl

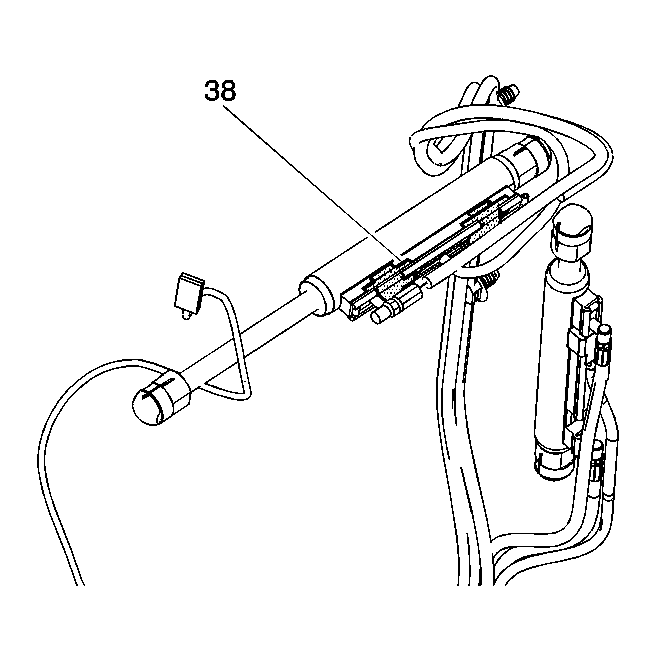

Fig 6: Stowage Lid Extension Panel Hall Effect Sensors Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
38	Hall Sensor - Flipper Door Cylinder

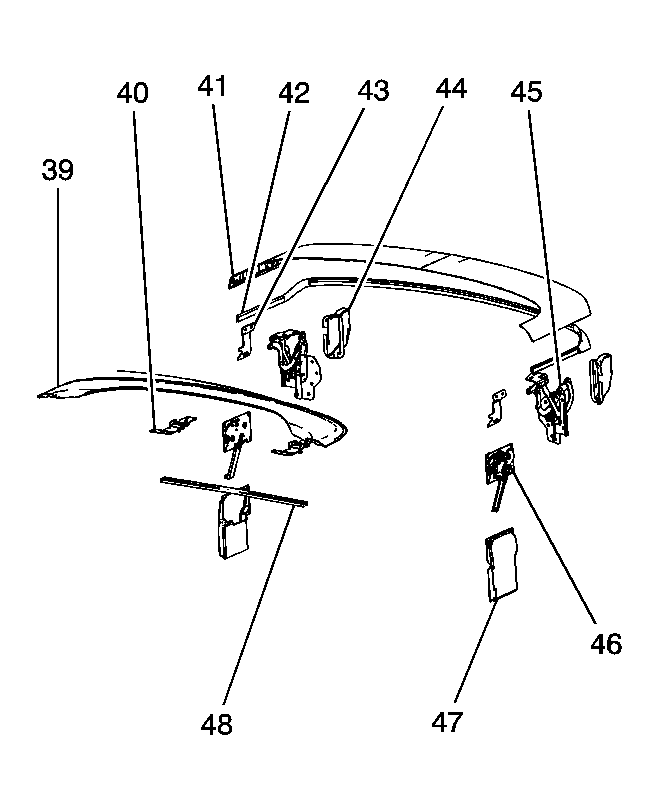

Fig 7: Stowage Lid & Extension Panel Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
39	Panel Assembly - Flipper Door Primed
40	Hinge Assembly - Flipper Door RH
41	Panel Assembly - Roof Tonneau (retractable roof stowage compartment lid)
42	Weatherstrip - Tonneau
43	Striker Assembly - Tonneau Latch RH
44	Closeout - Tonneau Hinge RH
45	Hinge Assembly - Tonneau/Body Attach LH
46	Latch Assembly - Tonneau LH
47	CO Closeout Tonneau Latch LH
48	Nut Plate - Bin Box Attach
