Installation Procedure

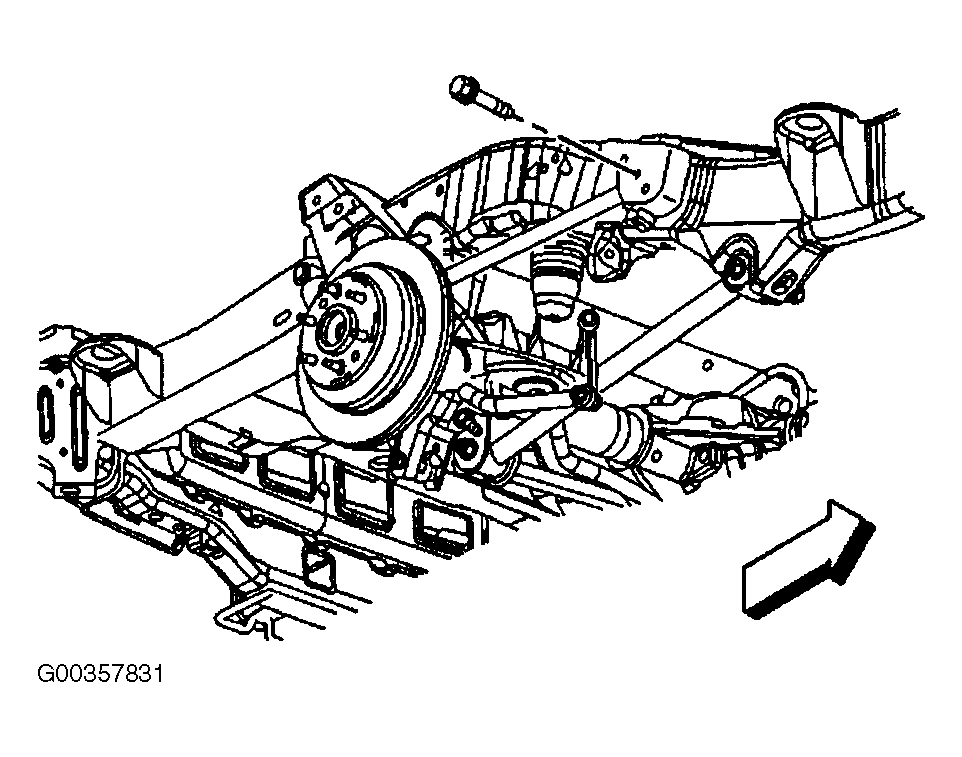

  1. Install the rear axle upper control arm. See Figure.
  2. Install the rear axle upper control arm to the frame. Hand tighten only.

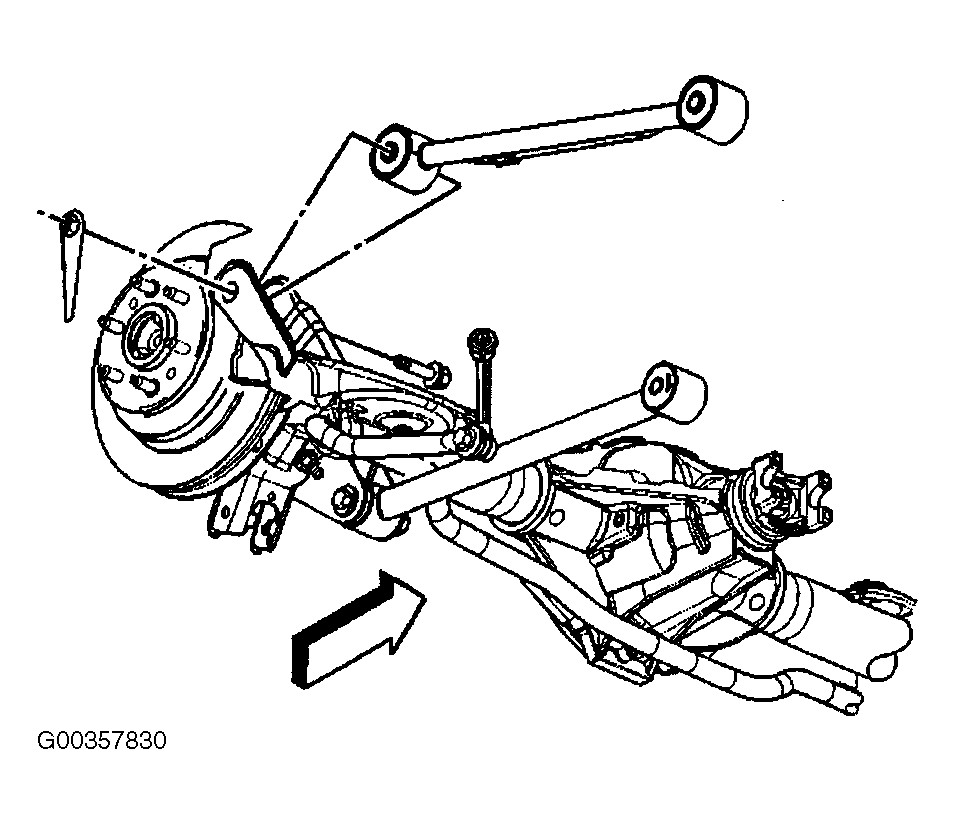

  3. Install the rear axle upper control arm to axle. See Figure. Tighten both rear axle upper control arm mounting bolts to 131 N.m (97 lb ft).
  4. Remove the rear axle support.
  5. Install the wheelhouse liner.
  6. Install the tire and wheel.
  7. Lower the vehicle.
