Removal Procedure

  1. Raise and support the vehicle.
  2. Raise and support the rear axle at the designed D-height. Refer to Trim Height Specifications in General Diagnosis .
  3. Remove the rear axle lower control arm to the axle mounting nut and bolt.

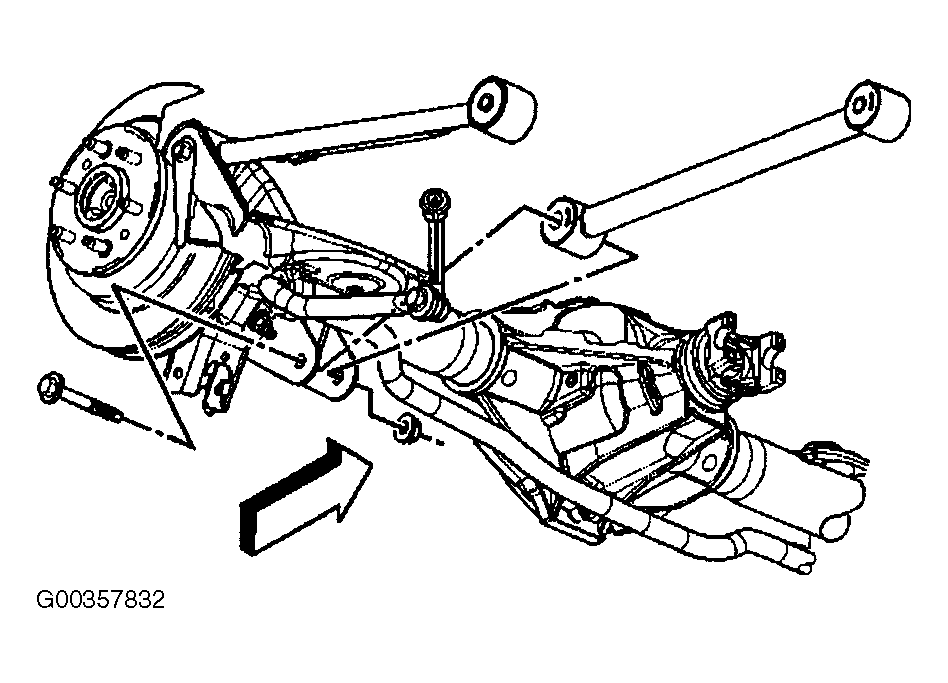

    Fig 1: Removing Rear Axle Lower Control Arm-To-Axle Mounting Nut & Bolt
    G00357832Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear axle lower control arm to the frame mounting nut and bolt.

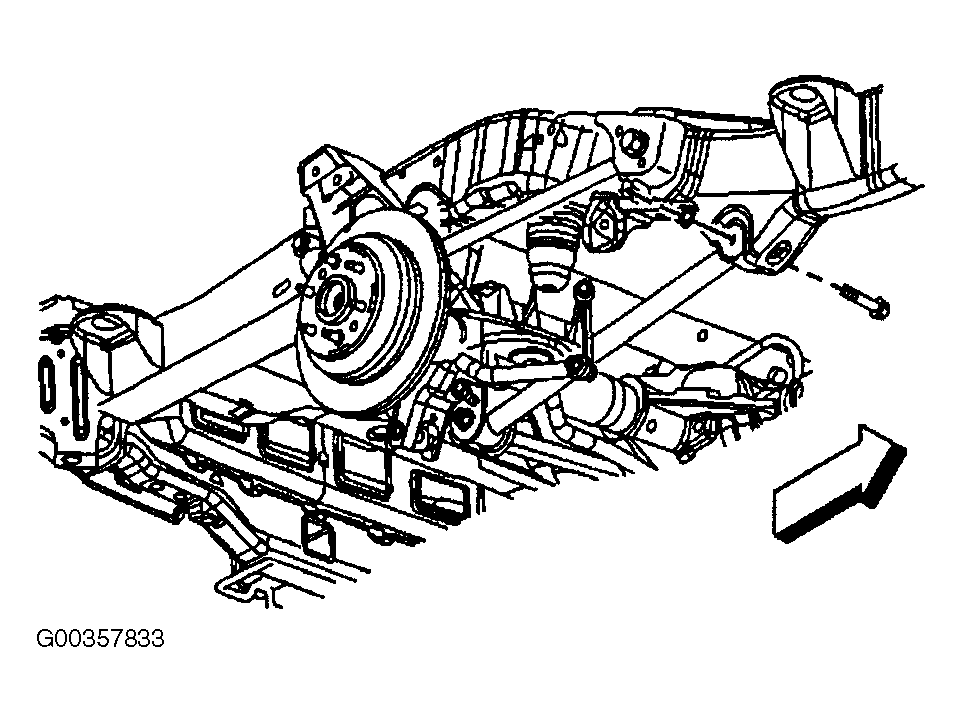

    Fig 2: Removing Rear Axle Lower Control Arm-To-Frame Mounting Nut & Bolt
    G00357833Courtesy of GENERAL MOTORS CORP.
  5. Remove the lower control arm.
