Inline Harness Connector End Views

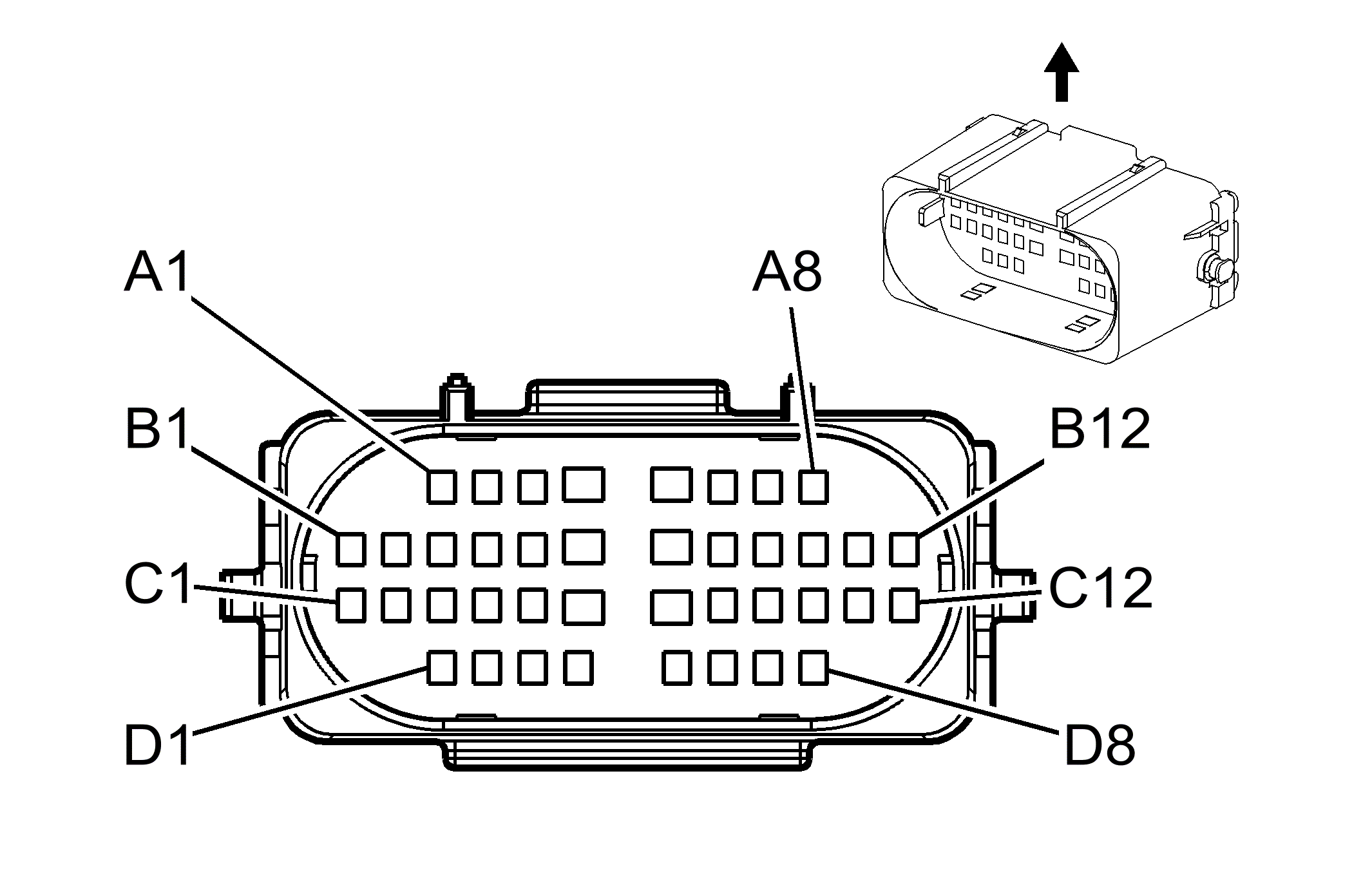

C100 Engine Harness To I/P Harness Connector End Views

GM646433Courtesy of GENERAL MOTORS CORP.
GM655777Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336418
  • 38-Way F GT 150 280 Sealed 4.0 5.2 (BK)
 Connector Part Information
  • 15317380
  • 38-Way M GT 150 280 Sealed 4.0 5.2 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 OG 440 Battery Positive Voltage A1 OG 440 Battery Positive Voltage
A2 D-BU 473 High Speed Cooling Fan Relay Control A2 D-BU 473 High Speed Cooling Fan Relay Control
A3 GY 2709 5-Volt Reference A3 GY 2709 5-Volt Reference
A4-A7 - - Not Used A4-A7 - - Not Used
A8 D-GN 890 Fuel Tank Pressure Sensor Signal A8 D-GN 890 Fuel Tank Pressure Sensor Signal
B1 GY 397 Cruise Control On Switch Signal B1 GY 397 Cruise Control On Switch Signal
B2-B7 - - Not Used B2-B7 - - Not Used
B8 YE 710 Class 2 Serial Data Secondary B8 YE 710 Class 2 Serial Data Secondary
B9 L-BU 1320 Stop Lamp Supply Voltage B9 L-BU 1320 Stop Lamp Supply Voltage
B10 D-GN 335 Low Speed Cooling Fan Relay Control B10 D-BU 335 Low Speed Cooling Fan Relay Control
B11 YE/BK 1827 Vehicle Speed Signal B11 YE/BK 1827 Vehicle Speed Signal
B12 GY/BK 87 Cruise Control Resume/Accel Switch Signal B12 GY/BK 87 Cruise Control Resume/Accel Switch Signal
C1 WH 121 Engine Speed Signal C1 WH 121 Engine Speed Signal
C2 - - Not Used C2 - - Not Used
C3 BK 2759 Fuel Tank Pressure Sensor Low Reference C3 BK 2759 Fuel Tank Pressure Sensor Low Reference
C4 PK 1020 Ignition 0 Voltage C4 PK 1020 Ignition 0 Voltage
C5 BN/WH 419 MIL Control C5 BN/WH 419 MIL Control
C6-C7 - - Not Used C6-C7 - - Not Used
C8 PU 420 TCC Brake Switch/Cruise Control Release Signal C8 PU 420 TCC Brake Switch/Cruise Control Release Signal
C9 - - Not Used C9 - - Not Used
C10 PU 1589 Fuel Level Sensor Signal C10 PU 1589 Fuel Level Sensor Signal
C11 D-GN 1049 ECM/PCM/VCM Class 2 Serial Data C11 D-GN 1049 ECM/PCM/VCM Class 2 Serial Data
C12 D-GN/WH 817 Vehicle Speed Signal C12 WH 817 Vehicle Speed Signal
D1 D-BU 84 Cruise Control Set/Coast Switch Signal D1 D-BU 84 Cruise Control Set/Coast Switch Signal
D2-D5 - - Not Used D2-D5 - - Not Used
D6 D-GN 1433 PNP Start Switch Signal D6 D-GN 1433 PNP Start Switch Signal
D7 - - Not Used D7 - - Not Used
D8 OG 440 Battery Positive Voltage D8 OG 440 Battery Positive Voltage
C103 Forward Lamp Harness To I/P Harness Connector End Views

GM632344Courtesy of GENERAL MOTORS CORP.
GM632342Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326842
  • 10-Way F 150 Sealed (BK)
 Connector Part Information
  • 15326847
  • 10-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A - - Not Used A - - Not Used
B D-GN 335 Low Speed Cooling Fan Relay Control B D-GN 335 Low Speed Cooling Fan Relay Control
C D-BU 473 High Speed Cooling Fan Relay Control C D-BU 473 High Speed Cooling Fan Relay Control
D PU 359 DRL Supply Voltage D PU 359 DRL Supply Voltage
E PU 359 DRL Supply Voltage E PU 359 DRL Supply Voltage
F PU 34 Fog Lamp Supply Voltage F PU 34 Fog Lamp Supply Voltage
G-J - - Not Used G-J - - Not Used
K BK/WH 56 Rear Compartment Lid Release Actuator K BK/WH 56 Rear Compartment Lid Release Actuator
C104 Front Fascia Harness To Forward Lamp Harness Connector End Views

GM646383Courtesy of GENERAL MOTORS CORP.
GM632345Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326863
  • 16-Way F GT 150 Sealed 4.0 (BK)
 Connector Part Information
  • 15326868
  • 16-Way M 150 Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BN 2309 Front Park Lamps Supply Voltage A BN 2309 Front Park Lamps Supply Voltage
B BN 2309 Front Park Lamps Supply Voltage B BN 2309 Front Park Lamps Supply Voltage
C L-BU 2114 Left Turn Signal Lamps Supply Voltage C L-BU 2114 Left Turn Signal Lamps Supply Voltage
D L-BU 2114 Left Turn Signal Lamps Supply Voltage D L-BU 2114 Left Turn Signal Lamps Supply Voltage
E BK 350 Ground E BK 350 Ground
F PU 34 Fog Lamp Supply Voltage F PU 34 Fog Lamp Supply Voltage
G PU 34 Fog Lamp Supply Voltage G PU 34 Fog Lamp Supply Voltage
H BK 350 Ground H BK 350 Ground
J BK 250 Ground J BK 250 Ground
K BK 250 Ground K BK 250 Ground
L BN 2309 Front Park Lamps Supply Voltage L BN 2309 Front Park Lamps Supply Voltage
M BN 2309 Front Park Lamps Supply Voltage M BN 2309 Front Park Lamps Supply Voltage
N D-BU 2115 Right Turn Signal Lamps Supply Voltage N D-BU 2115 Right Turn Signal Lamps Supply Voltage
P D-BU 2115 Right Turn Signal Lamps Supply Voltage P D-BU 2115 Right Turn Signal Lamps Supply Voltage
R-S - - Not Used R-S - - Not Used
C105 Chassis Harness To I/P Harness Connector End Views

GM847310Courtesy of GENERAL MOTORS CORP.

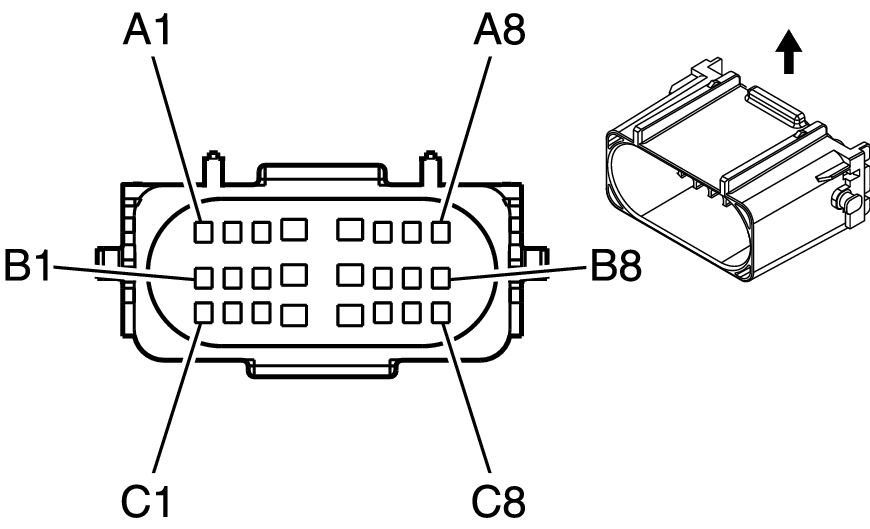

GM586335Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15366099
  • 24-Way F GT 150 280 SLD 4.0, 5.8 (BK)
 Connector Part Information
  • 15336173
  • 24-Way M Metri-Pack Mixed Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 RD/BK 744 Rear Compartment Lid Ajar Switch Signal A1 RD/BK 744 Rear Compartment Lid Ajar Switch Signal
A2 BK/WH 56 Rear Compartment Lid Release Actuator A2 BK/WH 56 Rear Compartment Lid Release Actuator
A3 YE 820 CHMSL Supply Voltage A3 YE 820 CHMSL Supply Voltage
A4 OG 2040 Battery Positive Voltage A4 OG 2040 Battery Positive Voltage
A5 BN/WH 1571 Traction Control Switch Signal A5 BN/WH 1571 Traction Control Switch Signal
A6 BN 2509 Left Rear Park Lamps Supply Voltage A6 BN 2509 Left Rear Park Lamps Supply Voltage
A7 BN/WH 2609 Right Rear Park Lamps Supply Voltage A7 BN/WH 2609 Right Rear Park Lamps Supply Voltage
A8 BN 2509 Left Rear Park Lamps Supply Voltage A8 BN 2509 Left Rear Park Lamps Supply Voltage
B1 L-GN 24 Backup Lamp Supply Voltage B1 L-GN 24 Backup Lamps Supply Voltage
B2 L-GN 24 Backup Lamp Supply Voltage B2 L-GN 24 Backup Lamps Supply Voltage
B3 BN 2509 Left Rear Park Lamps Supply Voltage B3 BN 2509 Left Rear Park Lamps Supply Voltage
B4 BN/WH 2609 Right Rear Park Lamps Supply Voltage B4 BN/WH 2609 Right Rear Park Lamps Supply Voltage
B5 BN 2109 Trailer Park Lamps Supply Voltage B5 BN 2109 Trailer Park Lamps Supply Voltage
B6 YE/BK 1827 Vehicle Speed Signal B6 YE/BK 1827 Vehicle Speed Signal
B7 L-BU 1122 ABS/TCS Class 2 Serial Data B7 L-BU 1122 ABS/TCS Class 2 Serial Data
B8 BN 253 Rear Compartment Lid Release Relay Control B8 BN 253 Rear Compartment Lid Release Relay Control
C1 D-GN 890 Fuel Tank Pressure Sensor Signal C1 D-GN 890 Fuel Tank Pressure Sensor Signal
C2 GY 2709 5-Volt Reference C2 GY 2709 5-Volt Reference
C3 BK 2759 Low Reference C3 BK 2759 Low Reference
C4 PU 1589 Fuel Level Sensor Signal C4 PU 1589 Fuel Level Sensor Signal
C5-C6 - - Not Used C5-C6 - - Not Used
C7 L-GN 901 Rear Compartment Present Switch Signal C7 L-GN 901 Rear Compartment Present Switch Signal
C8 OG 1732 Inadvertent Courtesy Lamps Power Supply Voltage C8 OG 1732 Inadvertent Courtesy Lamps Power Supply Voltage
C106 Forward Lamp Harness To Park/Turn Signal Harness RF Connector End Views

GM684807Courtesy of GENERAL MOTORS CORP.
GM655690Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110293
  • 3-Way F Metri-Pack 150 Series, Sealed (BK)
 Connector Part Information
  • 12129615
  • 3-Way M Metri-Pack 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-BU 2115 Right Turn Signal Lamp Supply Voltage A GN - Right Turn Signal Lamp Supply Voltage
B BN 2309 Front Park Lamp Supply Voltage B RD/OG - Front Park Lamp Supply Voltage
C BK 250 Ground C BK - Ground
C107 Forward Lamp Harness To Park/Turn Signal Harness LF Connector End Views

GM684807Courtesy of GENERAL MOTORS CORP.
GM655690Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110293
  • 3-Way F Metri-Pack 150 Series, Sealed (BK)
 Connector Part Information
  • 12129615
  • 3-Way M Metri-Pack 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-BU 2114 Left Turn Signal Lamp Supply Voltage A GN - Left Turn Signal Lamp Supply Voltage
B BN 2309 Front Park Lamp Supply Voltage B RD/OG - Front Park Lamp Supply Voltage
C BK 250 Ground C BK - Ground

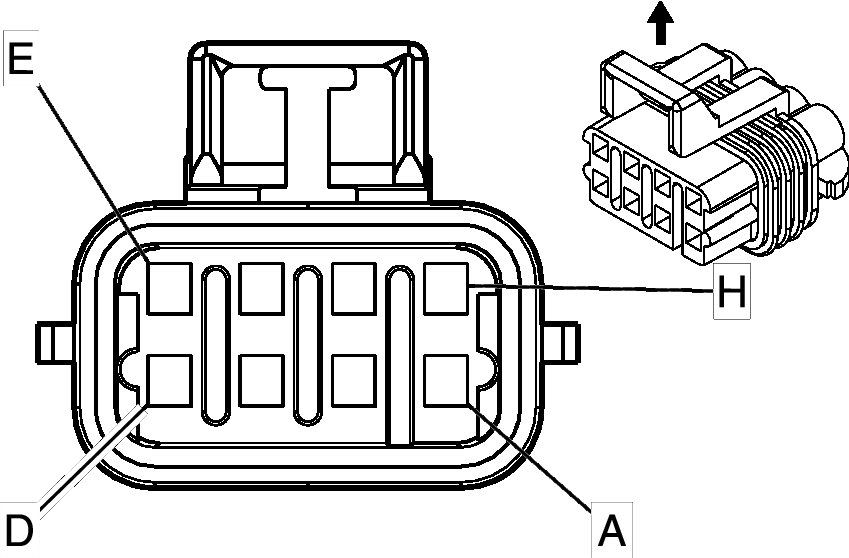

C108 Engine Harness To Ignition Coil Harness Connector End Views

GM684790Courtesy of GENERAL MOTORS CORP.
GM365940Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047938
  • 7-Way F Metri-Pack 150 Series, Sealed (L-GY)
 Connector Part Information
  • 15326169
  • 7-Way M Metri-Pack 150 Series, Sealed (L-GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 550 Ground A BK 151 Ground
B RD/WH 2122 IC 2 Control B RD 2127 IC 2 Control
C D-GN/WH 2124 IC 4 Control C D-GN 2125 IC 4 Control
D - - Not Used D - - Not Used
E BN/WH 2130 Low Reference E BN 2129 Low Reference
F L-BU/WH 2126 IC 6 Control F L-BU 2123 IC 6 Control
G PU/WH 2128 IC 8 Control G PU 2121 IC 8 Control
H PK 1339 Ignition 1 Voltage H PK 1239 Ignition 1 Voltage
C109 Engine Harness To Ignition Coil Harness Connector End Views

GM684790Courtesy of GENERAL MOTORS CORP.
GM365940Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047938
  • 7-Way F Metri-Pack 150 Series, Sealed (L-GY)
 Connector Part Information
  • 15326169
  • 7-Way M Metri-Pack 150 Series, Sealed (L-GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 550 Ground A BK 151 Ground
B RD 2127 IC 7 Control B RD 2127 IC 7 Control
C D-GN 2125 IC 5 Control C D-GN 2125 IC 5 Control
D - - Not Used D - - Not Used
E BN 2129 Low Reference E BN 2129 Low Reference
F L-BU 2123 IC 3 Control F L-BU 2123 IC 3 Control
G PU 2121 IC 1 Control G PU 2121 IC 1 Control
H PK 1239 Ignition 1 Voltage H PK 1239 Ignition 1 Voltage
C115 Engine Harness To Knock Sensors Connector End Views

GM635009Courtesy of GENERAL MOTORS CORP.

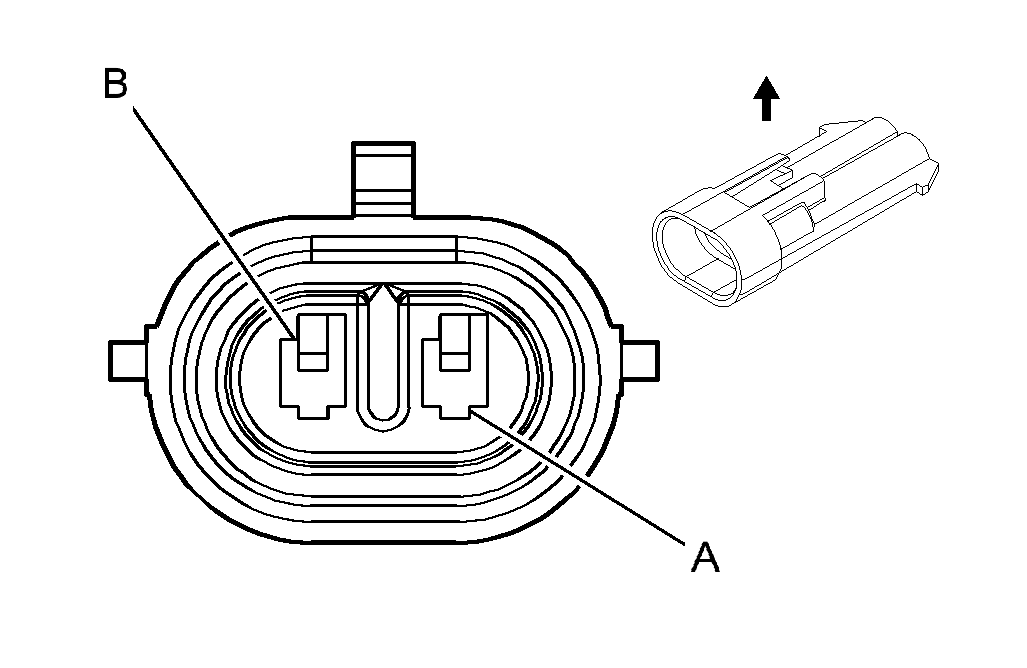

GM988127Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052641
  • 2-Way F Metri-Pack 150 Series, Sealed (BK)
 Connector Part Information
  • 12052647
  • 2-Way M Metri-Pack 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-BU 496 Knock Sensor 1 Signal A D-BU 496 Knock Sensor 1 Signal
B L-BU 1876 Knock Sensor 2 Signal B L-BU 1876 Knock Sensor 2 Signal
C175 Engine Harness To Transmission Connector End Views

GM684877Courtesy of GENERAL MOTORS CORP.
GM808696Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191511
  • 20-Way F Micro-Pack 100 Series (GY)
 Connector Part Information
  • 12160782
  • 20-Way M Micro-Pack 100 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-GN 1222 1-2 Shift Solenoid Valve Control A D-GN 1222 1-2 Shift Solenoid Valve Control
B YE/BK 1223 2-3 Shift Solenoid Valve Control B YE/BK 1223 2-3 Shift Solenoid Valve Control
C RD/BK 1228 PC Solenoid Valve High Control (Sol. A) C RD/BK 1228 PC Solenoid Valve High Control (Sol. A)
D L-BU/WH 1229 PC Solenoid Valve Low Control (Sol. A) D L-BU/WH 1229 PC Solenoid Valve Low Control (Sol. A)
E PK 1020 Off/Run/Crank Voltage E PK 1020 Off/Run/Crank Voltage
L YE/BK 1227 Transmission Fluid Temperature Sensor Signal L YE/BK 1227 Transmission Fluid Temperature Sensor Signal
M BK 2762 Low Reference M BK 2762 Low Reference
N PK 1224 Transmission Fluid Pressure Switch Signal A N PK 1224 Transmission Fluid Pressure Switch Signal A
P RD 1226 Transmission Fluid Pressure Switch Signal C P RD 1226 Transmission Fluid Pressure Switch Signal C
R D-BU 1225 Transmission Fluid Pressure Switch Signal B R D-BU 1225 Transmission Fluid Pressure Switch Signal B
S WH 687 3-2 Shift Solenoid Valve Control S WH 687 3-2 Shift Solenoid Valve Control
T TN/BK 422 Torque Converter Clutch Solenoid Control T TN/BK 422 Torque Converter Clutch Solenoid Control
U BN 418 Torque Converter Clutch PWM Solenoid Control U BN 418 Torque Converter Clutch PWM Solenoid Control
C200 Body Harness To I/P Harness Connector End Views

GM594473Courtesy of GENERAL MOTORS CORP.
GM684931Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336479
  • 4-Way F Metri-Pack 280 (YE)
 Connector Part Information
  • 15336476
  • 4-Way M Metri-Pack 280 (YE)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 L-GN 2116 Seat Belt Pretensioner Right - High Control A1 L-GN 2116 Seat Belt Pretensioner Right - High Control
A2 OG 2117 Seat Belt Pretensioner Right - Low Control A2 OG 2117 Seat Belt Pretensioner Right - Low Control
B1 GY 2103 Side Impact Module - Right - High Control B1 GY 2103 Side Impact Module - Right - High Control
B2 D-BU 2104 Side Impact Module - Right - Low Control B2 D-BU 2104 Side Impact Module - Right - Low Control
C201 Steering Column Harness To I/P Harness Connector End Views

GM794237Courtesy of GENERAL MOTORS CORP.
GM510556Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047842
  • 17-Way F Metri-Pack 150 Series (BK)
  • 12084183
  • 18-Way F Metri-Pack 630 Series (BK)
  • 12047840
  • 13-Way F Metri-Pack 280 Series (L-GY)
 Connector Part Information
  • 12077822
  • 48-Way M Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 - - Not Used A1 - - Not Used
A2 PK 639 Ignition 1 Voltage A2 PK 639 Ignition 1 Voltage
A3 BN 2309 Front Park Lamps Supply Voltage A3 - - Not Used
A4 L-GN 1427 Hazard/Position Lamp Cutout Relay Control A4 L-GN 1427 Hazard/Position Lamp Cutout Relay Control
A5 D-GN 1428 Hazard/Position Lamp Cutout Relay Control A5 D-GN 1428 Hazard/Position Lamp Cutout Relay Control
A6 BK 58 Right Cornering Lamp Supply Voltage A6 - - Not Used
A7 OG 57 Left Cornering Lamp Supply Voltage A7 - - Not Used
A8 - - Not Used A8 - - Not Used
A9 OG/BK 1816 Driver Information Center Set/Reset Switch Signal A9 OG 1816 Driver Information Center Set/Reset Switch Signal
A10 PU 1358 Driver Information Center Switch Signal A10 D-GN/WH 1358 Driver Information Center Switch Signal
A11 WH 111 Hazard Switch Signal A11 WH 111 Hazard Switch Signal
A12 L-GN 1011 Remote Radio Control Signal A12 L-GN 1011 Remote Radio Control Signal
A13 D-BU 894 Driver Information Center Toggle Switch Signal A13 D-BU 894 Driver Information Center Toggle Switch Signal
A14 YE 1327 Driver Information Center Fuel Signal A14 YE 1327 Driver Information Center Fuel Signal
A15 BN/WH 230 Instrument Panel Lamps Dimming Control A15 BN/WH 230 Instrument Panel Lamps Dimming Control
A16 BK 2250 Ground A16 BK 2250 Ground
A17 - - Not Used A17 - - Not Used
B1-B2 - - Not Used B1-B2 - - Not Used
B3 PK 2283 Rear Wiper/Washer Switch Supply Voltage B3 WH 2283 Rear Wiper/Washer Switch Supply Voltage
B4 - - Not Used B4 - - Not Used
B5 RD 142 Battery Positive Voltage B5 RD 142 Battery Positive Voltage
B6 BN 4 Accessory Voltage B6 BN 4 Accessory Voltage
C1 YE 5 Crank Voltage C1 YE 5 Crank Voltage
C2 RD/WH 812 12-Volt Reference C2 RD/WH 812 12-Volt Reference
C3 - - Not Used C3 - - Not Used
C4 OG/BK 1835 Security System Sensor Low Reference C4 BK 1835 Security System Sensor Low Reference
C5 WH 1390 Off/Run/Crank Voltage C5 WH 1390 Off/Run/Crank Voltage
C6 PK 3 Ignition 1 Voltage C6 PK 3 Ignition 1 Voltage
D1 OG 300 Ignition 3 Voltage D1 OG 300 Ignition 3 Voltage
D2 RD/WH 342 Battery Positive Voltage D2 RD 342 Battery Positive Voltage
D3 YE 1836 Security System Sensor Signal D3 YE 1836 Security System Sensor Signal
D4 BK/YE 28 Horn Relay Control D4 BK 28 Horn Relay Control
D5-D6 - - Not Used D5-D6 - - Not Used
E1 - - Not Used E1 - - Not Used
E2 TN 751 Ground E2 BK/WH 751 Ground
E3 GY/BK 87 Cruise Control Resume/Accel Switch Signal E3 GY/BK 87 Cruise Control Resume/Accel Switch Signal
E4 PK 94 Windshield Washer Switch Signal 1 E4 PK 94 Windshield Washer Switch Signal 1
E5 D-BU/WH 477 Windshield Wiper Switch High Signal E5 D-BU 477 Windshield Wiper Switch High Signal
E6 L-GN 80 Key In Ignition Switch Signal E6 L-GN 80 Key In Ignition Switch Signal
E7 YE 1996 Remote Shift Selector Signal E7 YE 1996 Remote Shift Selector Signal
E8 GY 478 Windshield Wiper Switch Supply Voltage E8 GY 478 Windshield Wiper Switch Supply Voltage
E9 GY/WH 397 Cruise Control On Switch Signal E9 GY 397 Cruise Control On Switch Signal
E10 D-BU 84 Cruise Control Set/Coast Switch Signal E10 D-BU 84 Cruise Control Set/Coast Switch Signal
E11 YE/BK 307 Headlamp Switch Flash To Pass Signal E11 YE 307 Headlamp Switch Flash To Pass Signal
E12 L-GN 11 Headlamp High Beam Supply Voltage E12 L-GN 11 Headlamp High Beam Supply Voltage
E13 BN 341 Ignition 3 Voltage E13 BN 341 Ignition 3 Voltage
C202 I/P Harness To Body Harness Connector End Views

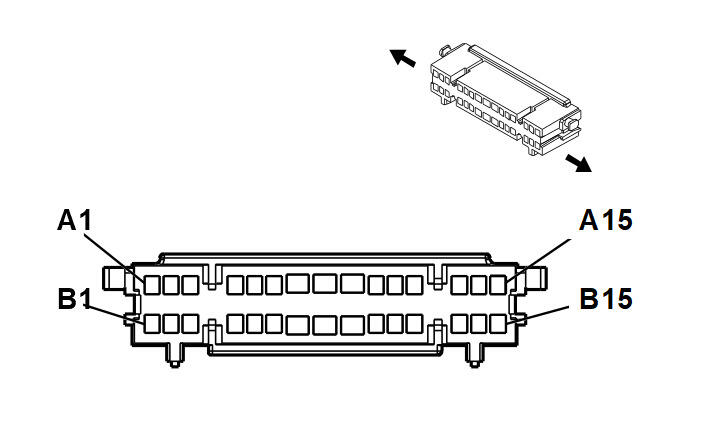

GM655763Courtesy of GENERAL MOTORS CORP.

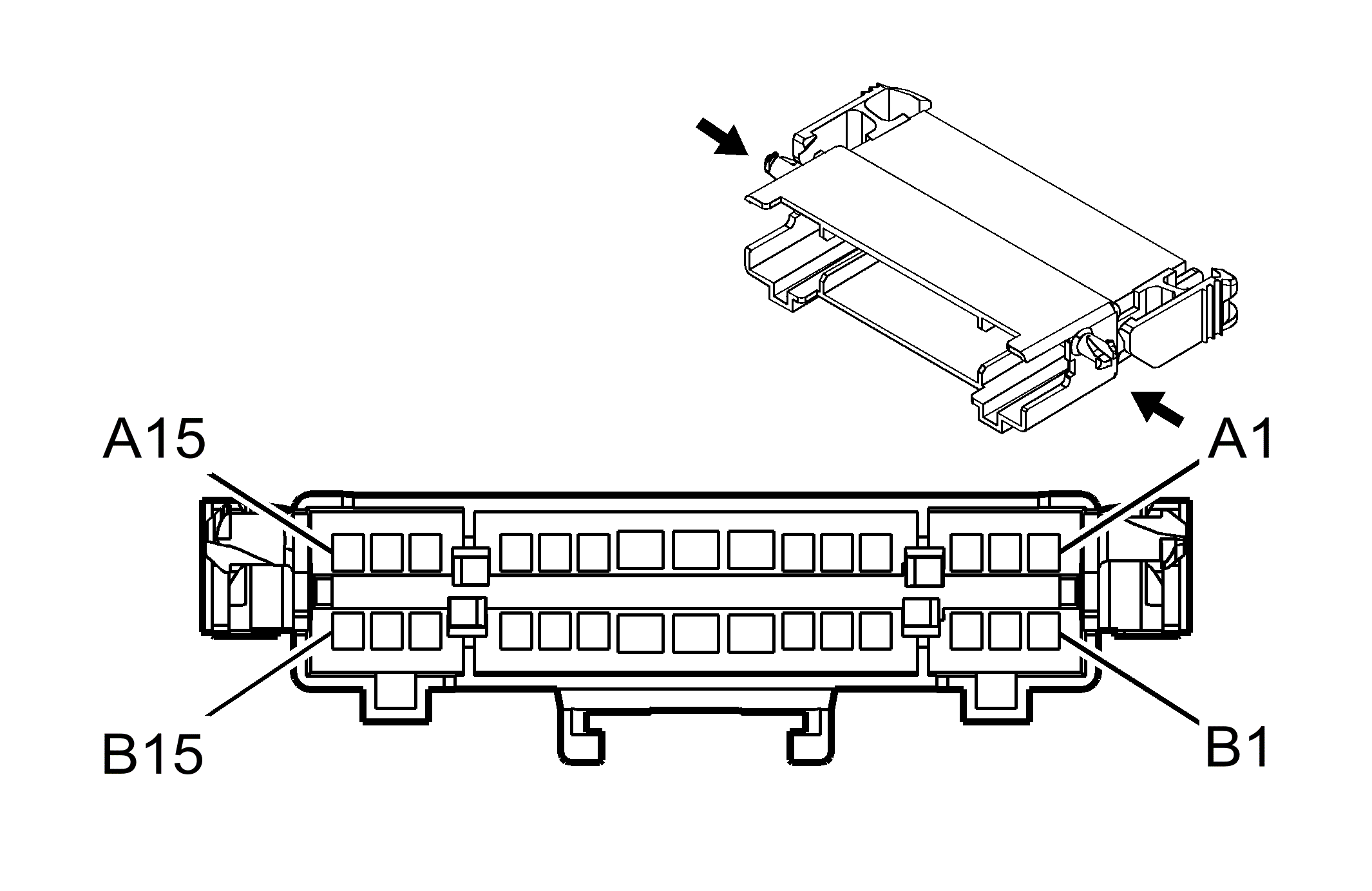

GM655824Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304908
  • 30-Way F GT 150 280 (BK)
 Connector Part Information
  • 15326762
  • 30-Way M GT 150 280 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 D-GN 1488 Noise Compensation Microphone Supply Voltage (Premium Radio) A1 D-GN 1488 Noise Compensation Microphone Supply Voltage (Premium Radio)
A2 L-GN/BK 1354 Drain Wire (Premium Radio) A2 L-GN/BK 1354 Drain Wire (Premium Radio)
A3 L-BU 915 Power Window Left Position Sensor 2 A3 L-BU 915 Power Window Left Position Sensor 2
A4 L-GN 916 Power Window Left Position Sensor 1 A4 L-GN 916 Power Window Left Position Sensor 1
A5 OG 4140 Battery Positive Voltage A5 OG 4140 Battery Positive Voltage
A6 L-GN 262 Driver Door Key Switch Signal A6 L-GN 262 Driver Door Key Switch Signal
A7 D-BU 164 Power Window Motor Left Front Up Control A7 D-BU 164 Power Window Motor Left Front Up Control
A8 BN 165 Power Window Motor Left Front Down Control A8 BN 165 Power Window Motor Left Front Down Control
A9 OG 2040 Battery Positive Voltage A9 OG 2040 Battery Positive Voltage
A10 GY 295 Door Lock Actuator Lock Control A10 GY 295 Door Lock Actuator Lock Control
A11 L-GN/BK 394 Door Handle Switch Signal - LF A11 L-GN/BK 394 Door Handle Switch Signal - LF
A12 GY/BK 745 Left Front Door Ajar Switch Signal A12 GY/BK 745 Left Front Door Ajar Switch Signal
A13 D-BU 2479 Passenger Heated Seat Element Supply Voltage (KA1) A13 D-BU 2479 Passenger Heated Seat Element Supply Voltage (KA1)
A14 PK 2480 Passenger Heated Seat Cushion Element Control (KA1) A14 PK 2480 Passenger Heated Seat Cushion Element Control (KA1)
A15 BN 2509 Left Rear Park Lamps Supply Voltage A15 BN 2509 Left Rear Park Lamps Supply Voltage
B1 BN 2509 Left Rear Park Lamps Supply Voltage B1 BN 2509 Left Rear Park Lamps Supply Voltage
B2 BN 2509 Left Rear Park Lamps Supply Voltage B2 BN 2509 Left Rear Park Lamps Supply Voltage
B3 YE 820 CHMSL Supply Voltage B3 YE 820 CHMSL Supply Voltage
B4 BN/WH 2609 Right Rear Park Lamps Supply Voltage B4 BN/WH 2609 Right Rear Park Lamps Supply Voltage
B5 BN/WH 2609 Right Rear Park Lamps Supply Voltage B5 BN/WH 2609 Right Rear Park Lamps Supply Voltage
B6 OG 110 Folding Top Switch Up Signal B6 OG 110 Folding Top Switch Up Signal
B7 D-GN/WH 1135 A/T Shift Lock Control Solenoid Supply Voltage B7 D-GN/WH 1135 A/T Shift Lock Control Solenoid Supply Voltage
B8 - - Not Used B8 - - Not Used
B9 GY 6137 A/C Request Signal B9 GY 6137 A/C Request Signal
B10 BN 100 Folding Top Switch Down Signal B10 BN 100 Folding Top Switch Down Signal
B11 L-BU 166 Power Window Switch Right Up Signal B11 L-BU 166 Power Window Switch Right Up Signal
B12 TN 167 Power Window Switch Right Down Signal B12 TN 167 Power Window Switch Right Down Signal
B13 L-GN 901 Rear Compartment Present Switch B13 L-GN 901 Rear Compartment Present Switch
B14 L-GN 2763 Power Window Switch Left Front Up Signal B14 L-GN 2763 Power Window Switch Left Front Up Signal
B15 OG 2764 Power Window Switch Left Front Down Signal B15 OG 2764 Power Window Switch Left Front Down Signal
C204 Body Harness To I/P Harness Connector End Views

GM655763Courtesy of GENERAL MOTORS CORP.
GM655824Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304908
  • 30-Way F GT 150 280 (BK)
 Connector Part Information
  • 15326762
  • 30-Way M GT 150 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 GY 1690 Automatic Day/Night Mirror Signal (W/DF4) A1 GY 1690 Automatic Day/Night Mirror Signal (W/DF4)
A2 PK 1691 Automatic Day/Night Mirror Low Reference (W/DF4) A2 PK 1691 Automatic Day/Night Mirror Low Reference (W/DF4)
A3 PK 353 I/P Module Suppression Indicator Control A3 PK 353 I/P Module Suppression Indicator Control
A4 L-BU 1803 I/P Module Suppression Indicator Supply Voltage A4 L-BU 1803 I/P Module Suppression Indicator Supply Voltage
A5 TN 2163 Side Impact Sensor - Right - Voltage A5 TN 2163 Side Impact Sensor - Right - Voltage
A6 D-GN 2164 Side Impact Sensor - Right - Signal A6 D-GN 2164 Side Impact Sensor - Right - Signal
A7 OG 3540 Battery Positive Voltage A7 OG 3540 Battery Positive Voltage
A8 PK 1501 Heated Seat High/Low Signal (KA1) A8 PK 1501 Heated Seat High/Low Signal (KA1)
A9 BK 956 Low Reference A9 BK 956 Low Reference
A10 RD 931 Power Window Return Signal A10 RD 931 Power Window Return Signal
A11 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage A11 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
A12 RD/WH 881 Passenger Mirror Motor Right Control A12 RD/WH 881 Passenger Mirror Motor Right Control
A13 L-BU 1497 Mirror Motor Supply Voltage A13 L-BU 1497 Mirror Motor Supply Voltage
A14 BN/WH 1498 Passenger Mirror Motor Up/Down Control A14 BN/WH 1498 Passenger Mirror Motor Up/Down Control
A15 L-BU 5056 Seat Position Switch - Right - Signal A15 L-BU 5056 Seat Position Switch - Right - Signal
B1 D-BU 1363 Seat Belt Switch - Left - Low Reference B1 D-BU 1363 Seat Belt Switch - Left - Low Reference
B2 OG 954 5-Volt Reference (KA1) B2 OG 954 5-Volt Reference (KA1)
B3 OG 2740 Battery Positive Voltage B3 OG 2740 Battery Positive Voltage
B4 - - Not Used B4 - - Not Used
B5 BARE 1573 Drain Wire (Premium Radio) B5 BARE 1573 Drain Wire (Premium Radio)
B6 D-GN 1947 Left Front Low Level Audio Signal (-) (Premium Radio) B6 D-GN 1947 Left Front Low Level Audio Signal (-) (Premium Radio)
B7 GY 118 Left Front Speaker Output (-) (Premium Radio) B7 GY 118 Left Front Speaker Signal Output (-) (Premium Radio)
B8 TN 201 Left Front Speaker Output (+) (Premium Radio) B8 TN 201 Left Front Speaker Output (+) (Premium Radio)
B9 RD/BK 744 Rear Compartment Lid Ajar Switch Signal B9 RD/BK 744 Rear Compartment Lid Ajar Switch Signal
B10 D-BU 46 Right Rear Speaker Output (+) (Base Radio) B10 D-BU 46 Right Rear Speaker Output (+) (Base Radio)
TN 511 Left Front Low Level Audio Signal (+) (Premium Radio) TN 511 Left Front Low Level Audio Signal (+) (Premium Radio)
B11 D-GN 117 Right Front Speaker Output (-) (Base Radio) B11 D-GN 117 Right Front Speaker Output (-) (Base Radio)
OG/BK 1546 Front Low Level Audio Signal (-) (Premium Radio) OG/BK 1546 Front Low Level Audio Signal (-) (Premium Radio)
B12 L-GN 200 Right Front Speaker Output (+) (Base Radio) B12 L-GN 200 Right Front Speaker Output (+) (Base Radio)
L-GN 512 Right Front Low Level Audio Signal (+) (Premium Radio) L-GN 512 Right Front Low Level Audio Signal (+) (Premium Radio)
B13 L-BU 115 Right Rear Speaker Output (-) (Base Radio) B13 L-BU 115 Right Rear Speaker Output (-) (Base Radio)
BARE 2011 Drain Wire (Premium Radio) BARE 2011 Drain Wire (Premium Radio)
B14 YE 116 Left Rear Speaker Output (-) (Base Radio) B14 YE 116 Left Rear Speaker Output (-) (Base Radio)
D-BU 1857 Left Front Midrange Speaker Output (+) (Premium Radio) D-BU 1857 Left Front Midrange Speaker Output (+) (Premium Radio)
B15 BN 199 Left Rear Speaker Output (+) (Base Radio) B15 BN 199 Left Rear Speaker Output (+) (Base Radio)
L-BU 1957 Left Front Midrange Speaker Output (-) (Premium Radio) L-BU 1957 Left Front Midrange Speaker Output (-) (Premium Radio)
C205 I/P Harness To Cigar Lighter Extension Harness Connector End Views

GM82383Courtesy of GENERAL MOTORS CORP.
GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 640 Battery Positive Voltage A OG 640 Battery Positive Voltage
B BK 2250 Ground B BK 2250 Ground
C300 I/P Harness To Driver Seat Harness Connector End Views

GM823321Courtesy of GENERAL MOTORS CORP.
GM823318Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326952
  • 16-Way F 280 Series (BK)
 Connector Part Information
  • 15326956
  • 16-Way M 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BN/WH 1048 Seat Control Module Class 2 Serial Data (AAB) A BN/WH 1048 Seat Control Module Class 2 Serial Data (AAB)
B OG 2740 Battery Positive Voltage (AAB) B OG 2740 Battery Positive Voltage (AAB)
C OG 3540 Battery Positive Voltage C OG 3540 Battery Positive Voltage
D BK 1350 Ground D BK 1350 Ground
E BK/WH 238 Driver Seat Belt Switch Signal E BK/WH 238 Driver Seat Belt Switch Signal
F D-BU 1363 Seat Belt Switch Left - Low Reference F D-GN 933 Seat Belt Switch Left - Low Reference
G L-GN 5055 Seat Belt Switch Left - Signal G L-GN 932 Seat Belt Switch Left - Signal
H D-BU 1363 Seat Belt Switch Left - Low Reference H D-GN 933 Seat Belt Switch Left - Low Reference
J OG 954 5-Volt Reference (KA1) J OG 940 5-Volt Reference (KA1)
K PK 1501 Heated Seat High/Low Signal (KA1) K D-BU 1501 Heated Seat High/Low Signal (KA1)
L BK 956 Low Reference (KA1) L BK 950 Low Reference (KA1)
M PK 2480 Passenger Heated Seat Element Control (KA1) M BK 2480 Passenger Heated Seat Element Control (KA1)
N D-BU 2479 Passenger Heated Seat Element Supply Voltage (KA1) N RD 2479 Passenger Heated Seat Element Supply Voltage (KA1)
P-S - - Not Used P-S - - Not Used
C303 Headliner Harness To Body Harness Connector End Views

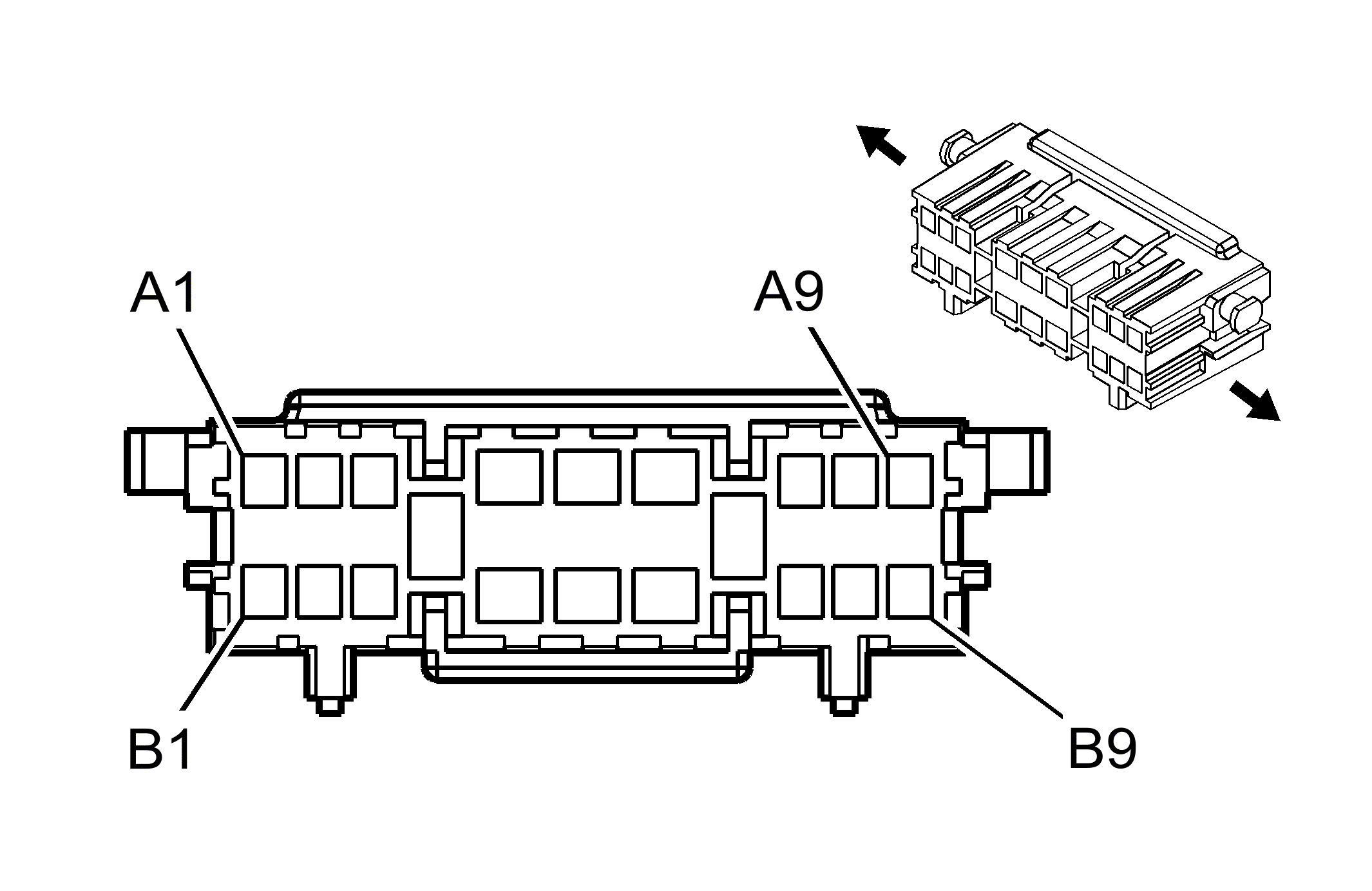

GM646392Courtesy of GENERAL MOTORS CORP.

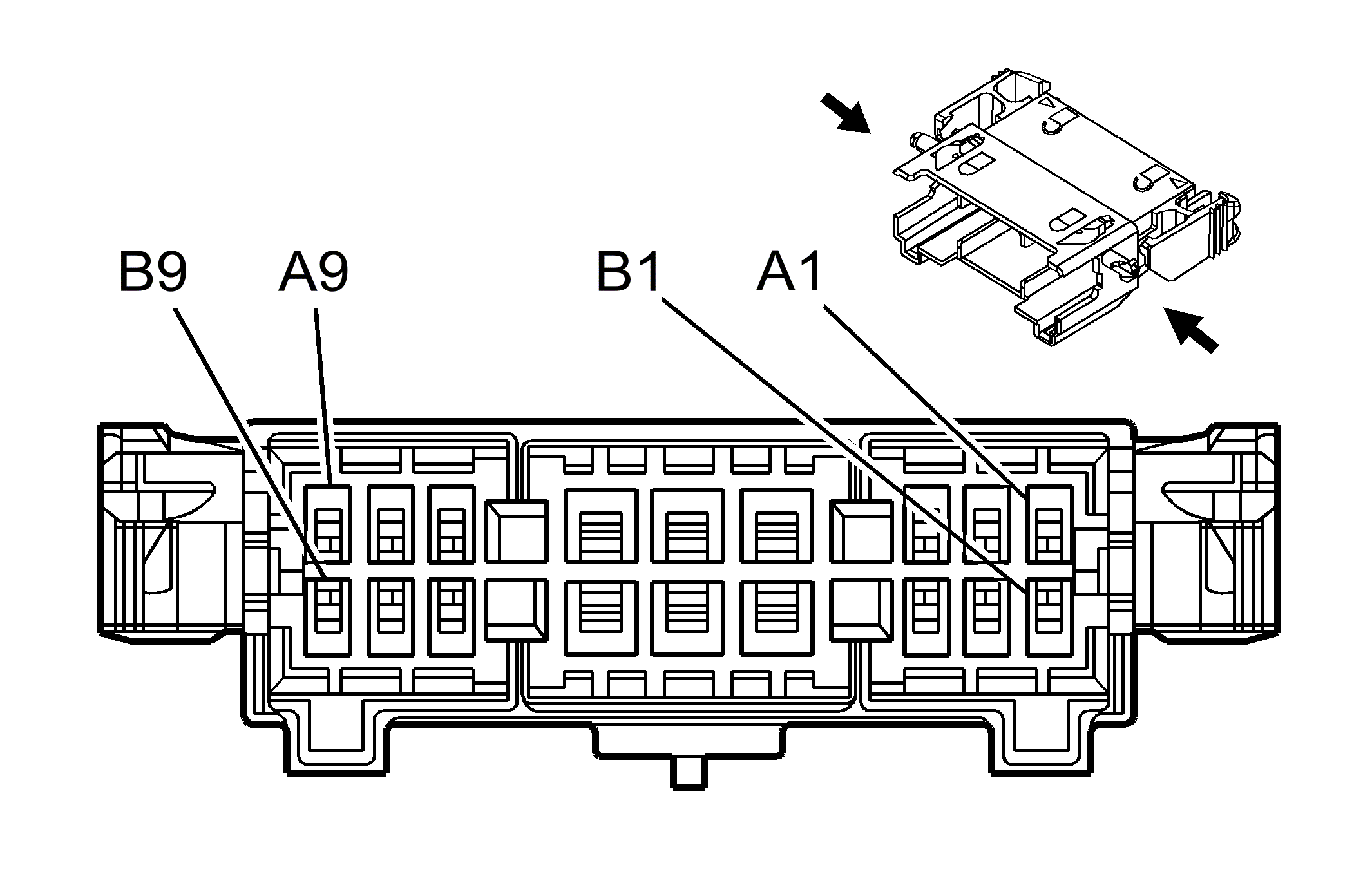

GM808884Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304690
  • 18-Way F GT 150 280 (GY)
 Connector Part Information
  • 15336467
  • 18-Way M Global Terminal/Mixed (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 L-BU 908 Folding Top Outer Latch Striker Position Switch Disengaged Signal A1 L-BU 908 Folding Top Outer Latch Striker Position Switch - Disengaged Signal
A2 - - Not Used A2 - - Not Used
A3 L-BU 1803 I/P Module Suppression Indicator - Supply A3 L-BU 1803 I/P Module Suppression Indicator - Supply
A4 YE 903 Folding Top Outer Latch Striker Position Switch Released Signal A4 YE 903 Folding Top Outer Latch Striker Position Switch Released Signal
A5 D-BU 904 Folding Top Outer Latch Actuator Control A5 D-BU 904 Folding Top Outer Latch Actuator Control
A6 BK 905 Folding Top Outer Latch Actuator Control A6 BK 905 Folding Top Outer Latch Actuator Control
A7 PK 639 Ignition 1 Voltage (DF4) A7 PK 639 Ignition 1 Voltage (DF4)
A8 PK 1691 Automatic Day/Night Mirror Low Reference (DF4) A8 PK 1691 Automatic Day/Night Mirror Low Reference (DF4)
A9 L-GN 24 Backup Lamp Supply Voltage (DF4) A9 L-GN 24 Backup Lamp Supply Voltage (DF4)
B1 GY 1690 Automatic Day/Night Mirror Signal (DF4) B1 GY 1690 Automatic Day/Night Mirror Signal (DF4)
B2 OG 3140 Battery Positive Voltage (DF4) B2 OG 3140 Battery Positive Voltage (DF4)
B3 PK 353 I/P Module Suppression Indicator Control B3 PK 353 I/P Module Suppression Indicator Control
B4 BK 1450 Ground B4 BK 1450 Ground
B5 GY 1698 Enable Signal B5 GY 1698 Enable Signal
B6 WH 906 Folding Top Outer Latch Position Switch Latched Signal B6 WH 906 Folding Top Outer Latch Position Switch Latched Signal
B7 OG 1732 Inadvertent Courtesy Lamps Supply Voltage B7 OG 1732 Inadvertent Courtesy Lamps Supply Voltage
B8 GY/BK 690 Courtesy Lamp Supply Voltage B8 GY/BK 690 Courtesy Lamp Supply Voltage
B9 D-BU 907 Folding Top Outer Latch Position Switch Over Center Signal B9 D-BU 907 Folding Top Outer Latch Position Switch Over Center Signal
C304 PSIR Extension Harness To Header Harness Connector End Views

GM82383Courtesy of GENERAL MOTORS CORP.
GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PK 353 I/P Module Suppression Indicator Control A PK 353 I/P Module Suppression Indicator Control
B L-BU 1803 I/P Module Suppression Indicator - Supply Voltage B L-BU 1803 Passenger I/P Module Suppression Indicator Supply Voltage
C306 Body Harness To Passenger Seat Harness Connector End Views

GM823321Courtesy of GENERAL MOTORS CORP.
GM823318Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326952
  • 16-Way F 280 Series (BK)
 Connector Part Information
  • 15326956
  • 16-Way M 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A-B - - Not Used A-B - - Not Used
C OG 2240 Battery Positive Voltage (Base Radio) C OG 2240 Battery Positive Voltage
OG 3540 Battery Positive Voltage (Premium)
D BK 1450 Ground D BK 1450 Ground
E-F - - Not Used E-F - - Not Used
G L-BU 5056 Seat Position Switch - Right - Signal G D-GN 934 Seat Position Switch - Right - Signal
H D-BU 1363 Seat Belt Switch - Left - Low Reference H L-GN 933 Seat Belt Switch - Left - Low Reference
J OG 954 5-Volt Reference (KA1) J BN 940 5-Volt Reference (KA1)
K PK 1501 Heated Seat High/Low Signal (KA1) K PK 1501 Heated Seat High/Low Signal (KA1)
L BK 956 Low Reference (KA1) L D-BU 950 Low Reference (KA1)
M PK 2480 Passenger Heated Seat Element Control (KA1) M D-BU 2480 Passenger Heated Seat Element Control (KA1)
N D-BU 2479 Passenger Heated Seat Supply Voltage (KA1) N RD 2479 Passenger Heated Seat Supply Voltage (KA1)
P-S - - Not Used P-S - - Not Used
C308 Roof Harness To Body Harness Connector End Views

GM365938Courtesy of GENERAL MOTORS CORP.
GM655680Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015664
  • 4-Way F Metri-Pack 630 Series (BK)
 Connector Part Information
  • 12052623
  • 4-Way M Metri-Pack 630 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 28 Rear Defog Element Supply Voltage A PU 293 Rear Defog Element Supply Voltage
B OG 29 Battery Positive Voltage B OG 1240 Battery Positive Voltage
C BK 30 Ground C BK 1450 Ground
D - - Not Used D - - Not Used
C309 Roof Harness To Body Harness Connector End Views

GM40422Courtesy of GENERAL MOTORS CORP.
GM40425Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (GY)
 Connector Part Information
  • 12064763
  • 6-Way M Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PK 25 Ignition 0 Voltage A PK 1020 Ignition 0 Voltage
B TN 33 Rear Compartment Lid Release Relay Signal B BN 253 Rear Compartment Lid Release Relay Signal
C WH 14 Rear Compartment Lid Ajar Switch Signal C RD/BK 744 Rear Compartment Lid Ajar Switch Signal
D TN 13 Rear Compartment Lid Release Switch D BK 1576 Rear Compartment Lid Release Switch
E-F - - Not Used E-F - - Not Used
C313 Driver Harness To Lumbar Harness Connector End Views

GM38274Courtesy of GENERAL MOTORS CORP.
GM1390769Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12034343
  • 2-Way F Metri-Pack 280 Series (BK)
 Connector Part Information
  • 12034344
  • 2-Way M Metri-Pack 280 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-BU 277 Driver Seat Lumbar Motor Forward Control A RD 277 Driver Seat Lumbar Motor Forward Control
B GY/BK 276 Driver Seat Lumbar Motor Rearward Control B BK 276 Driver Seat Lumbar Motor Rearward Control
C314 Passenger Harness To Lumbar Harness Connector End Views

GM38274Courtesy of GENERAL MOTORS CORP.
GM1390769Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12034343
  • 2-Way F Metri-Pack 280 Series (BK)
 Connector Part Information
  • 12034344
  • 2-Way M Metri-Pack 280 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-BU 211 Passenger Seat Lumbar Motor Forward Control A RD 211 Passenger Seat Lumbar Motor Forward Control
B GY/BK 276 Passenger Seat Lumbar Motor Rearward Control B BK 276 Passenger Seat Lumbar Motor Rearward Control
C400 Tailgate Harness To Chassis Harness Connector End Views

GM537107Courtesy of GENERAL MOTORS CORP.
GM605500Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series, Sealed (WH)
 Connector Part Information
  • 12162343
  • 2-Way M Metri-Pack 150 (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 820 CHMSL Supply Voltage A YE 820 CHMSL Supply Voltage
B BLK 1550 Ground B BK 1550 Ground
C401 Rear Fascia Harness To Chassis Harness Connector End Views

GM632357Courtesy of GENERAL MOTORS CORP.
GM646396Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326829
  • 6-Way F 150 Sealed (BK)
 Connector Part Information
  • 15326833
  • 6-Way M GT 150 Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BN 2509 Left Rear Park Lamps Supply Voltage A BN 2509 Left Rear Park Lamps Supply Voltage
B BK 1550 Ground B BK 1550 Ground
C L-GN 24 Backup Lamp Supply Voltage C L-GN 24 Backup Lamp Supply Voltage
D L-GN 24 Backup Lamp Supply Voltage D L-GN 24 Backup Lamp Supply Voltage
E BN 2509 Left Rear Park Lamps Supply Voltage E BN 2509 Left Rear Park Lamps Supply Voltage
F BN/WH 2609 Right Rear Park Lamps Supply Voltage F BN/WH 2609 Right Rear Park Lamps Supply Voltage
C402 Chassis Harness To Auxiliary Power Outlet Harness Connector End Views

GM603213Courtesy of GENERAL MOTORS CORP.

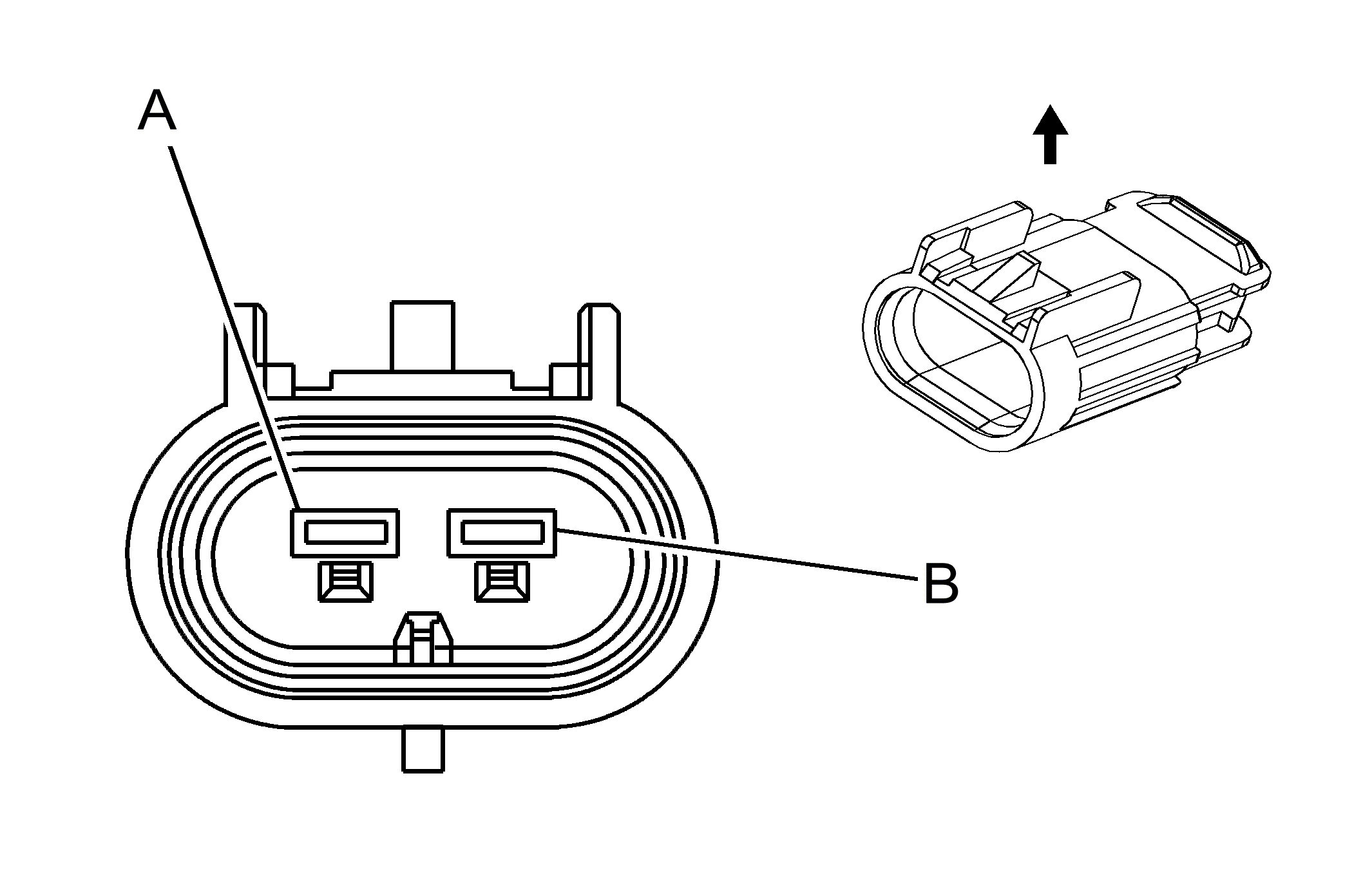

GM873041Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326679
  • 2-Way F GT 280 Sealed (BK)
 Connector Part Information
  • 15326678
  • 2-Way M GT 280 Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 2040 Battery Positive Voltage A BK 2040 Battery Positive Voltage
B BK 1550 Ground B RD 1550 Ground
C404 Chassis Harness To Bed Cover Harness Connector End Views

GM456551Courtesy of GENERAL MOTORS CORP.
GM280761Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160482
  • 4-Way F (BK)
 Connector Part Information
  • 12160825
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-GN 901 Rear Compartment Present Switch Signal A L-GN 901 Rear Compartment Present Switch Signal
B BK 1550 Ground B BK 1550 Ground
C OG 1732 Inadvertent Courtesy Lamps Supply Voltage C 0G 1732 Inadvertent Courtesy Lamps Supply Voltage (ERK)
D RD/BK 744 Rear Compartment Lid Ajar Switch Signal D - - Rear Compartment Lid Ajar Switch Signal (ERK)
C500 Driver Door Harness To I/P Harness Connector End Views

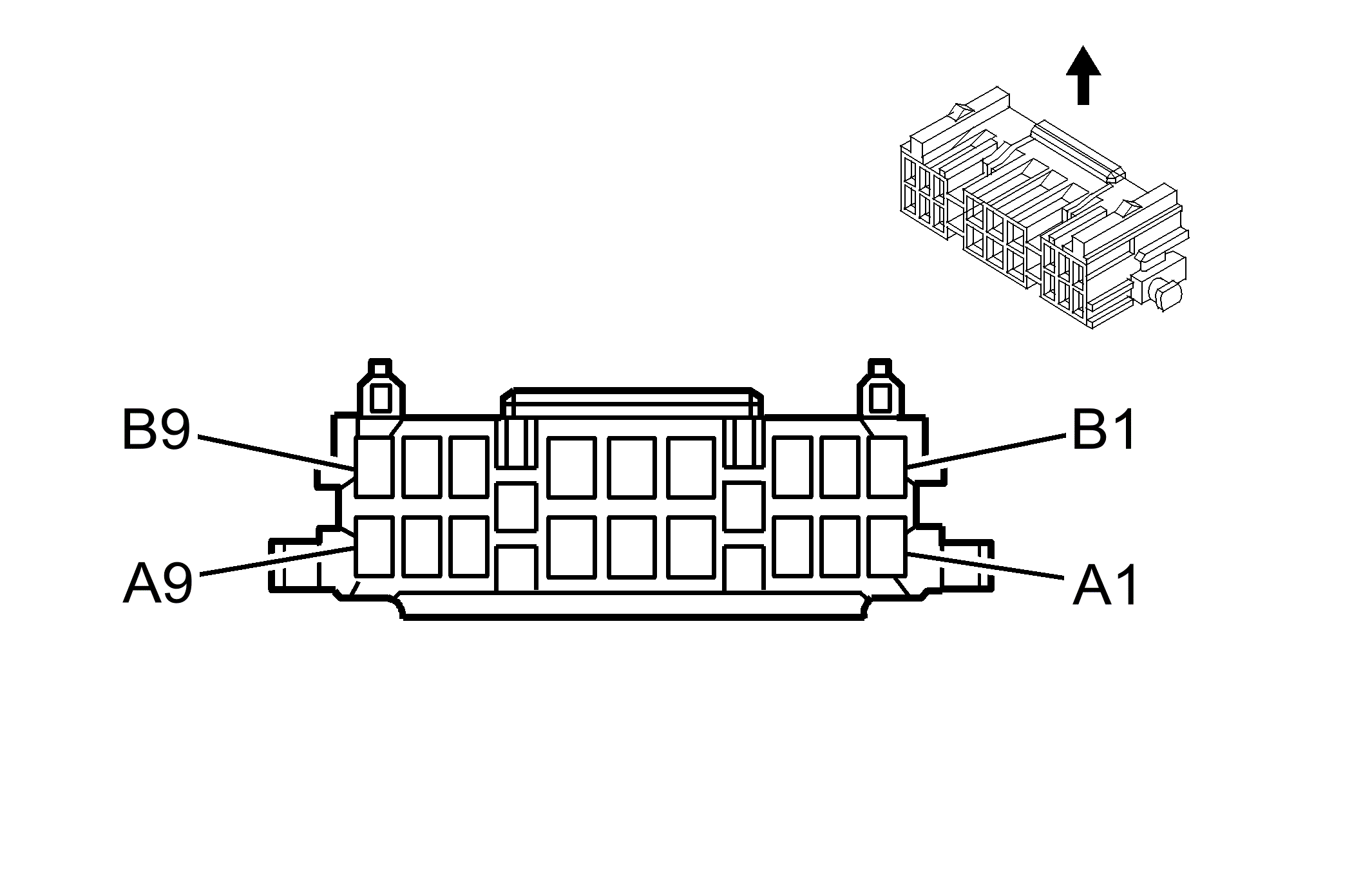

GM808699Courtesy of GENERAL MOTORS CORP.

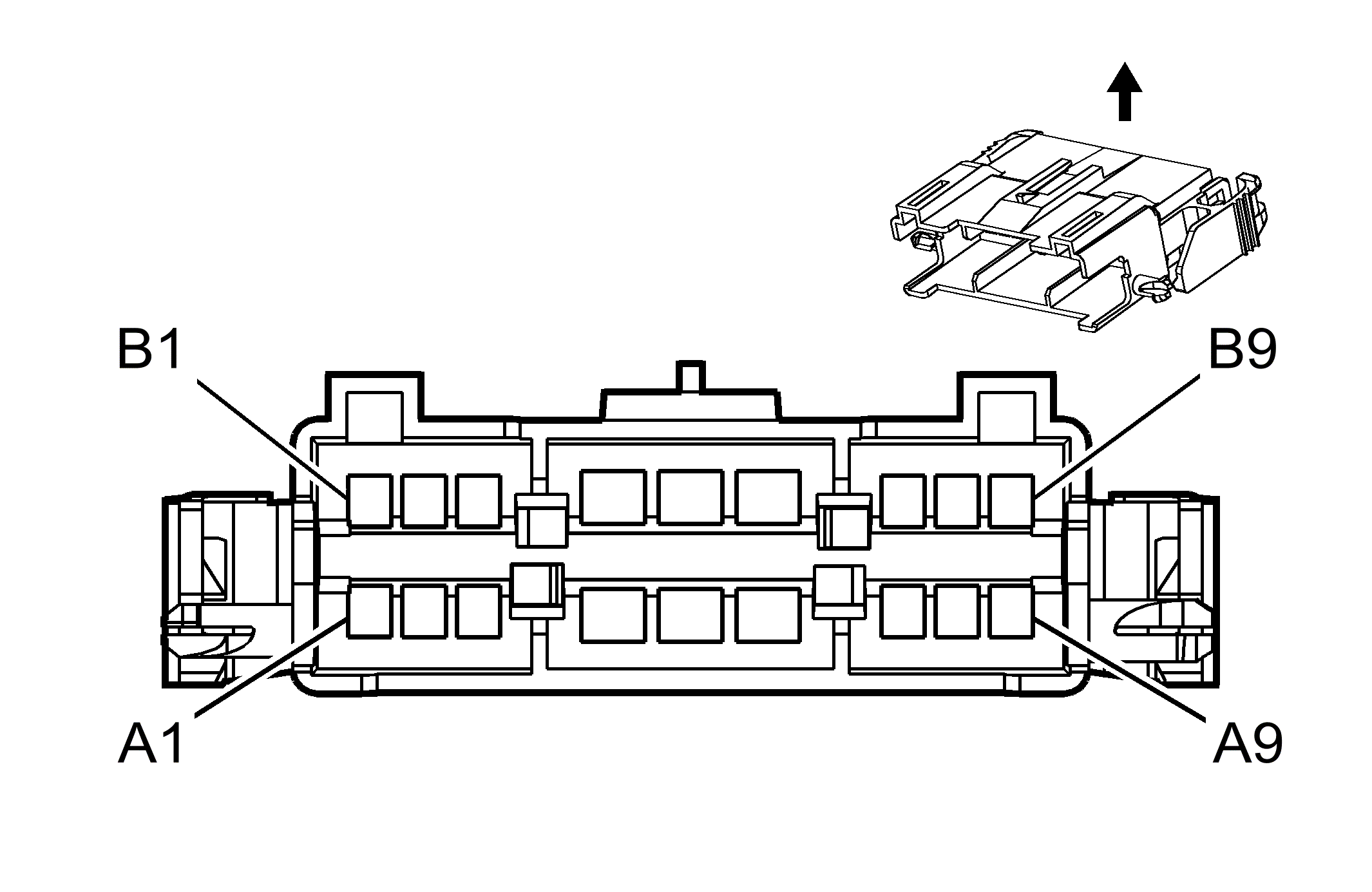

GM655857Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304692
  • 18-Way F GT 150 280 Series (BK)
 Connector Part Information
  • 15336468
  • 18-Way M GT 150 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 GY/BK 745 Left Front Door Ajar Switch Signal A1 GY/BK 745 Left Front Door Ajar Switch Signal
A2 - - Not Used A2 - - Not Used
A3 L-GN/BK 394 Door Handle Switch Signal - LF A3 L-GN/BK 394 Door Handle Switch Signal - LF
A4 - - Not Used A4 - - Not Used
A5 BK 1350 Ground A5 BK 1350 Ground
A6 GY 118 Left Front Speaker Output (-) A6 GY 118 Left Front Speaker Signal (-)
A7 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage A7 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
A8 GY 1690 Automatic Day/Night Mirror Signal (W/DF4) A8 GY 1690 Automatic Day/Night Mirror Signal (W/DF4)
A9 PK 1691 Automatic Day/Night Mirror Low Reference (W/DF4) A9 PK 1691 Automatic Day/Night Mirror Low Reference (W/DF4)
B1 OG 4140 Battery Positive Voltage B1 OG 4140 Battery Positive Voltage
B2 RD/WH 881 Passenger Mirror Motor Right Control B2 RD/WH 881 Passenger Mirror Motor Right Control
B3 L-BU/WH 1497 Passenger Mirror Motor Left/Down Control B3 L-BU/WH 1497 Passenger Mirror Motor Left/Down Control
B4 L-BU 164 Power Window Motor Left Front Up Control B4 D-BU 164 Power Window Motor Left Front Up Control
B5 BN 165 Power Window Motor Left Front Down Control B5 BN 165 Power Window Motor Left Front Down Control
B6 TN 201 Left Front Speaker Output (+) B6 TN 201 Left Front Speaker (+) (1)
B7 BN/WH 1498 Passenger Mirror Motor Left/Down Control B7 BN/WH 1498 Passenger Mirror Motor Left/Down Control
B8 L-BU 915 Power Window Left Position Sensor 2 B8 L-BU 915 Power Window Left Position Sensor 2
B9 L-GN 916 Power Window Left Position Sensor 1 B9 L-GN 916 Power Window Left Position Sensor 1
C501 Driver Door Harness To I/P Harness Connector End Views

GM803688Courtesy of GENERAL MOTORS CORP.
GM511671Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064871
  • 10-Way F Metri-Pack 150 Series (BU)
 Connector Part Information
  • 12064872
  • 10-Way M Metri-Pack 150 Series (BU)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-BU 1857 Left Front Midrange Speaker Output (+) (Premium Radio) A D-BU 1857 Left Front Midrange Speaker (+) (Premium Radio)
B L-BU 1957 Left Front Midrange Speaker Output (-) (Premium Radio) B L-BU 1957 Left Front Midrange Speaker (-) (Premium Radio)
C-D - - Not Used C-D - - Not Used
E GY 295 Door Lock Actuator Lock Control E GY 295 Door Lock Actuator Lock Control
F TN 294 Door Lock Actuator Unlock Control F TN 294 Door Lock Actuator Unlock Control
G L-GN 262 Driver Door Key Switch Signal G L-GN 262 Driver Door Key Switch Signal
H YE 2161 Side Impact Sensor - Left - Voltage H YE 2161 Side Impact Sensor - Left - Voltage
J WH 2162 Side Impact Sensor - Left - Signal J WH 2162 Side Impact Sensor - Left - Signal
K RD 931 Power Window Return Signal K RD 931 Power Window Return Signal
C600 Passenger Door Harness To Body Harness Connector End Views

GM808699Courtesy of GENERAL MOTORS CORP.
GM655857Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304692
  • 18-Way F Global Terminal/Mixed Series (BK)
 Connector Part Information
  • 15336468
  • 18-Way M GT 150 280 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 BK/WH 746 Right Front Door Ajar Switch Signal A1 BK/WH 746 Right Front Door Ajar Switch Signal
A2 - - Not Used A2 - - Not Used
A3 L-BU 395 Door Handle Switch Signal - RF A3 L-BU 395 Door Handle Switch Signal - RF
A4 - - Not Used A4 - - Not Used
A5 BK 1450 Ground A5 BK 1450 Ground
A6 D-GN 117 Right Front Speaker Output (-) A6 D-GN 117 Right Front Speaker Output (-)
A7 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage A7 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
A8-A9 - - Not Used A8-A9 - - Not Used
B1 - - Not Used B1 - - Not Used
B2 RD/WH 881 Passenger Mirror Motor Right Control B2 RD/WH 881 Passenger Mirror Motor Right Control
B3 L-BU/WH 1497 Passenger Mirror Motor Left/Down Control B3 L-BU/WH 1497 Passenger Mirror Motor Left/Down Control
B4 D-BU 666 Power Window Motor Right Front Down Control B4 D-BU 666 Power Window Motor Right Front Down Control
B5 BN 667 Power Window Motor Right Front Up Control B5 BN 667 Power Window Motor Right Front Up Control
B6 L-GN 200 Right Front Speaker Output (+) B6 L-GN 200 Right Front Speaker Output (+)
B7 BK/WH 1498 Passenger Mirror Motor Left/Down Control B7 BN/WH 1498 Passenger Mirror Motor Left/Down Control
B8 L-BU 926 Power Window Right Position Sensor 1 B8 L-BU 926 Power Window Right Position Sensor 1
B9 L-GN 927 Power Window Right Position Sensor 2 B9 L-GN 927 Power Window Right Position Sensor 2
C601 Passenger Door Harness To Body Harness Connector End Views

GM803688Courtesy of GENERAL MOTORS CORP.
GM511671Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064871
  • 10-Way F Metri-Pack 150 Series (BU)
 Connector Part Information
  • 12064872
  • 10-Way M Metri-Pack 150 Series (BU)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 1853 Right Front Midrange Speaker Output (+) (Premium Radio) A OG 1853 Right Front Midrange Speaker Output (+) (Premium Radio)
B D-GN 1953 Right Front Midrange Speaker Output (-) (Premium Radio) B D-GN 1953 Right Front Midrange Speaker Output (-) (Premium Radio)
C-D - - Not Used C-D - - Not Used
E GY 295 Door Lock Actuator Lock Control E GY 295 Door Lock Actuator Lock Control
F TN 294 Door Lock Actuator Unlock Control F TN 294 Door Lock Actuator Unlock Control
G L-GN 265 Passenger Door Key Switch Signal G L-GN 265 Passenger Door Key Switch Signal
H TN 2163 Side Impact Sensor - Right - Voltage H TN 2163 Side Impact Sensor - Right - Voltage
J D-GN 2164 Side Impact Sensor - Right - Signal J D-GN 2164 Side Impact Sensor - Right - Signal
K RD 931 Power Window Return Signal K RD 931 Power Window Return Signal
scientia non olet · About LEMON Manuals
