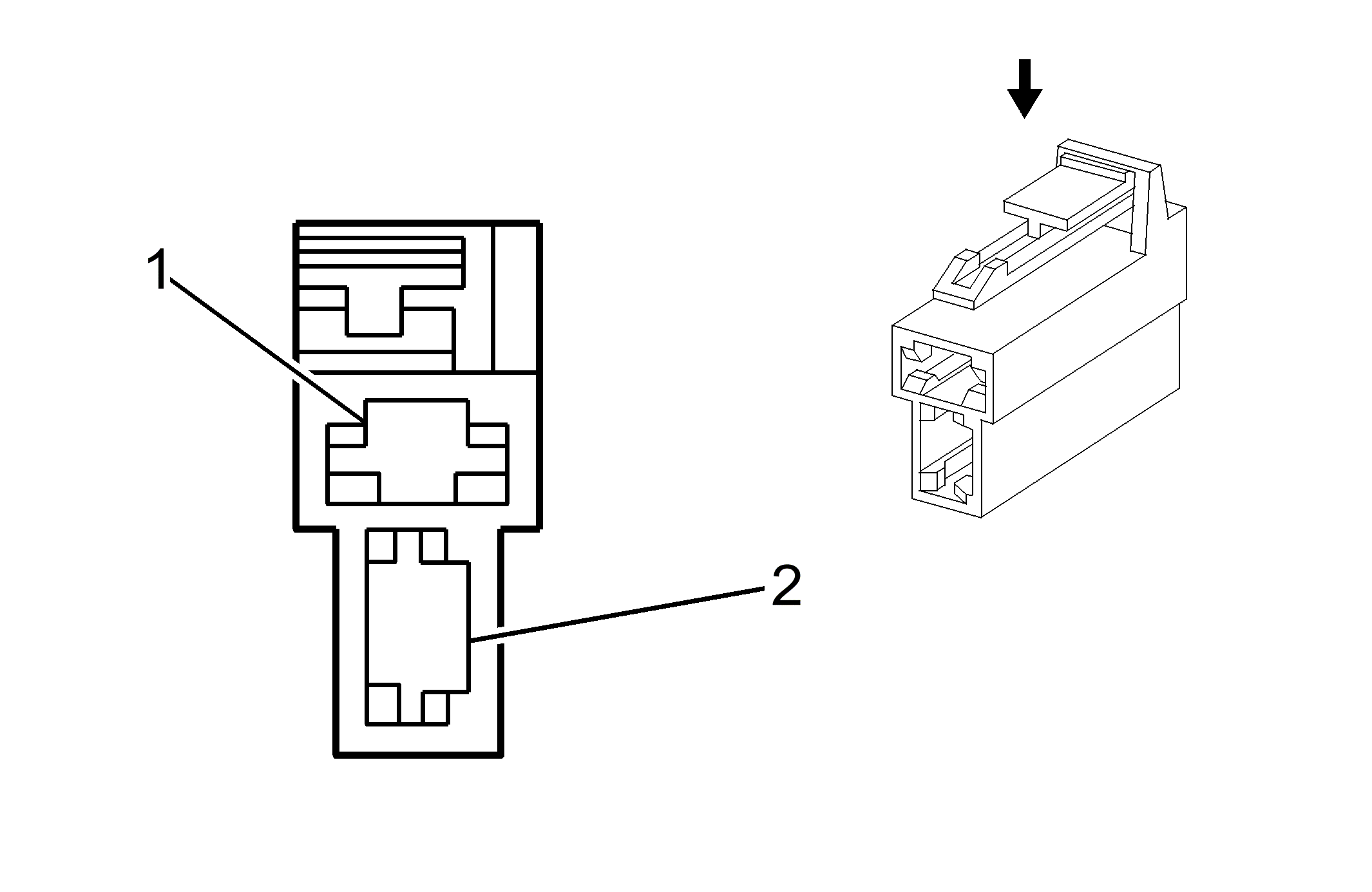

Blower Motor Connector End View
Blower Motor Connector End View
Blower Motor
Courtesy of GENERAL MOTORS CORP.
Connector Part Information
7123-6020
2-Way F Unsealed (NA)
Pin
Wire Color
Circuit No.
Function
1
RD
542
Battery Positive Voltage
2
OG
52
High Blower Motor Control
