Installation Procedure

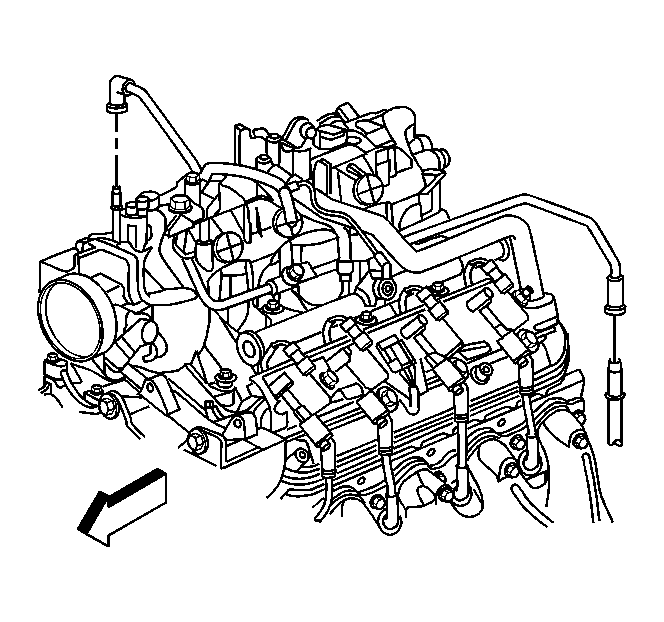

    Fig 1: View Of EVAP Purge Solenoid Vent Tube
    GM898353Courtesy of GENERAL MOTORS CORP.
  1. Remove the caps from the EVAP canister purge solenoid and the EVAP chassis pipe.
  2. Install the EVAP tube.
  3. Connect the EVAP tube to the EVAP chassis pipe.
  4. Connect the EVAP tube to the EVAP canister purge solenoid.
