Installation Procedure

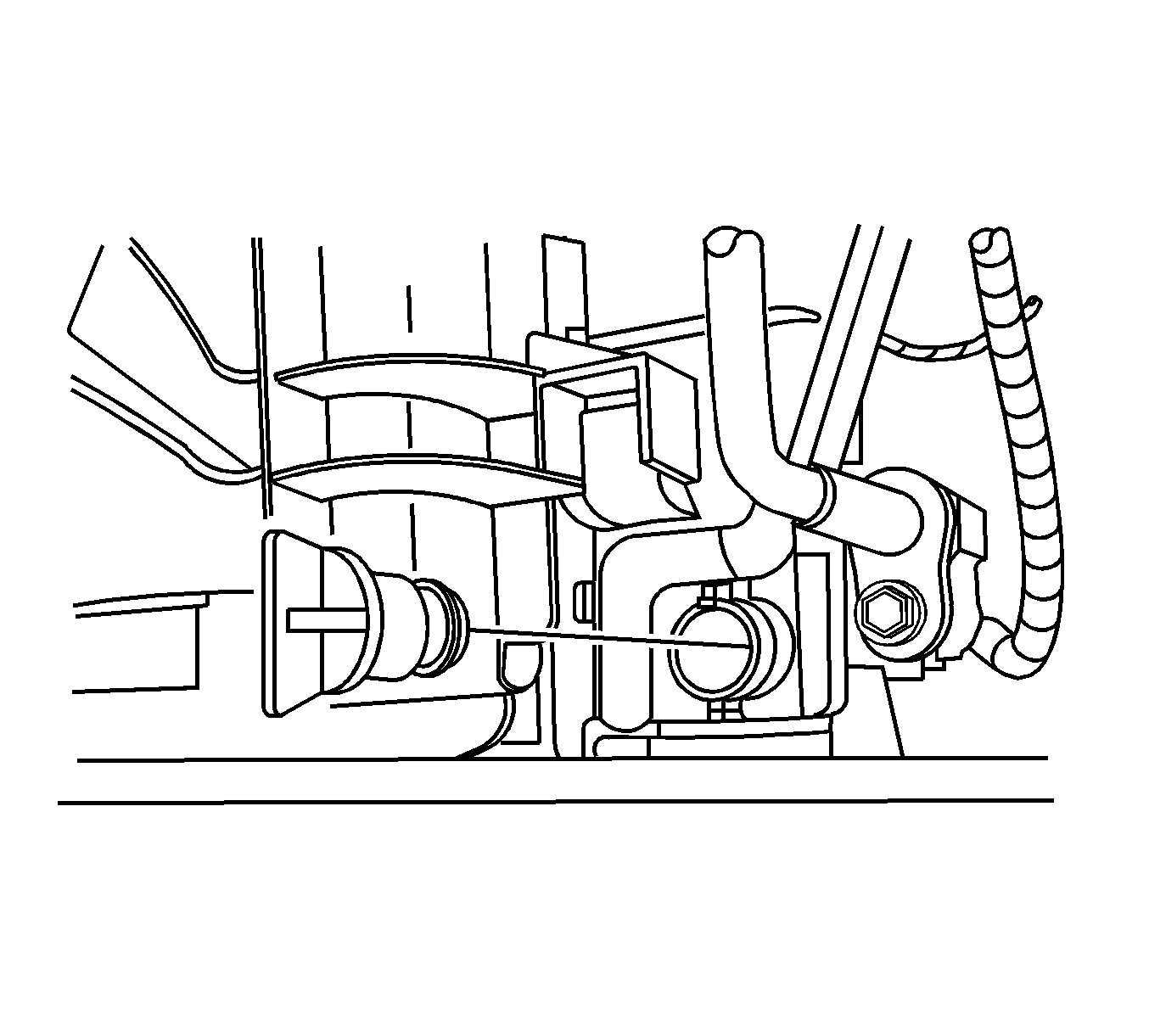

    Fig 1: Identifying Radiator Drain Cock
    GM928895Courtesy of GENERAL MOTORS CORP.
  1. Install the radiator drain cock.
  2. Tighten the radiator drain cock by hand only.
  3. Lower the vehicle.
  4. Fill the cooling system. Refer to Draining and Filling Cooling System .
