Repair and Diagnosis
>>
Engine Mechanical
>>
Cooling System (Mechanical)
>>
Engine Cooling System
>>
Component Locator
>>
Cooling System Component Views
Cooling System Component Views

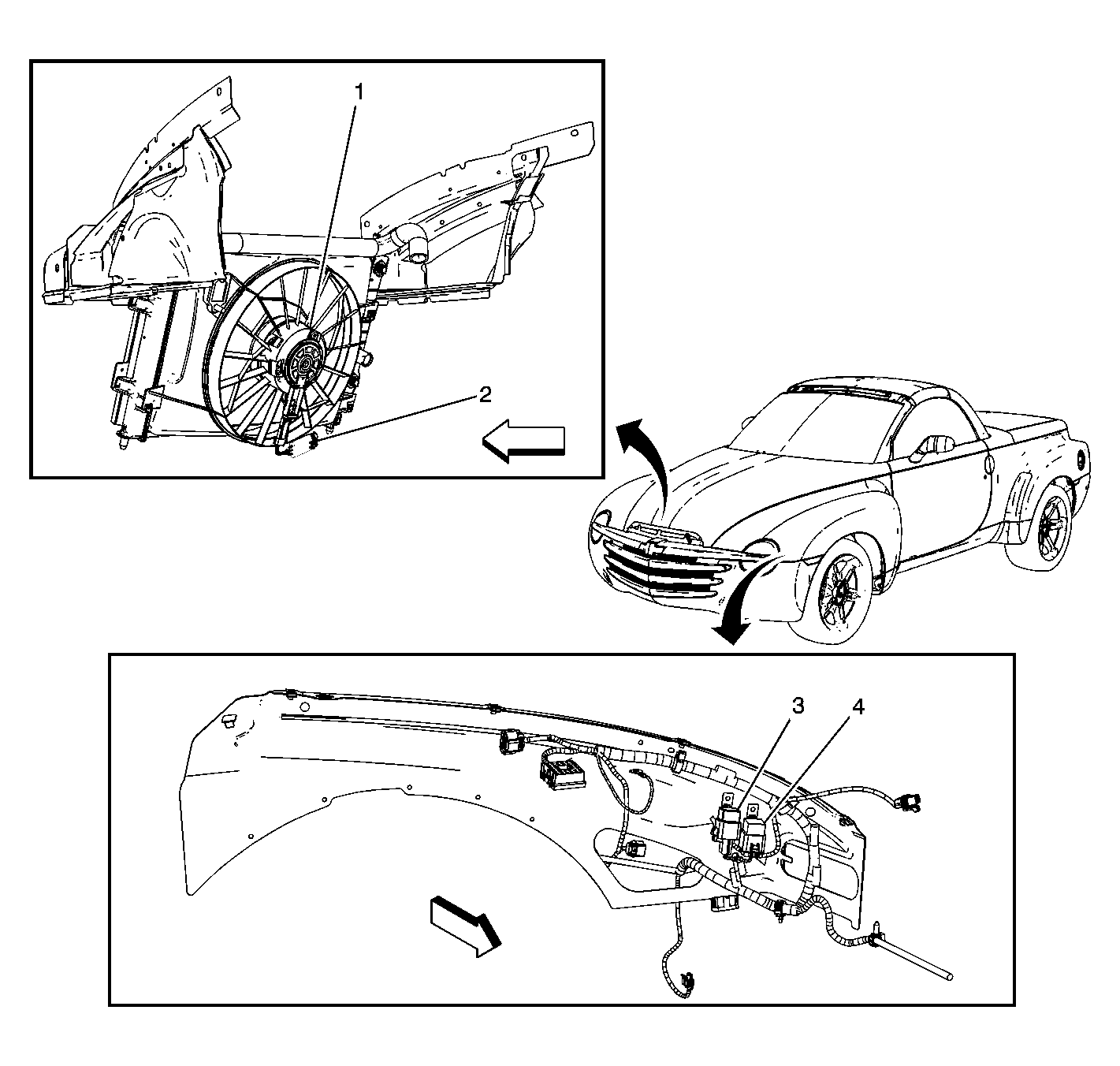

Fig 1: Engine Cooling Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Cooling Fan
2
Cooling Fan Connector
3
Cooling Fan 1 Relay
4
Cooling Fan 2 Relay
Courtesy of GENERAL MOTORS CORP.
