ABS Schematics

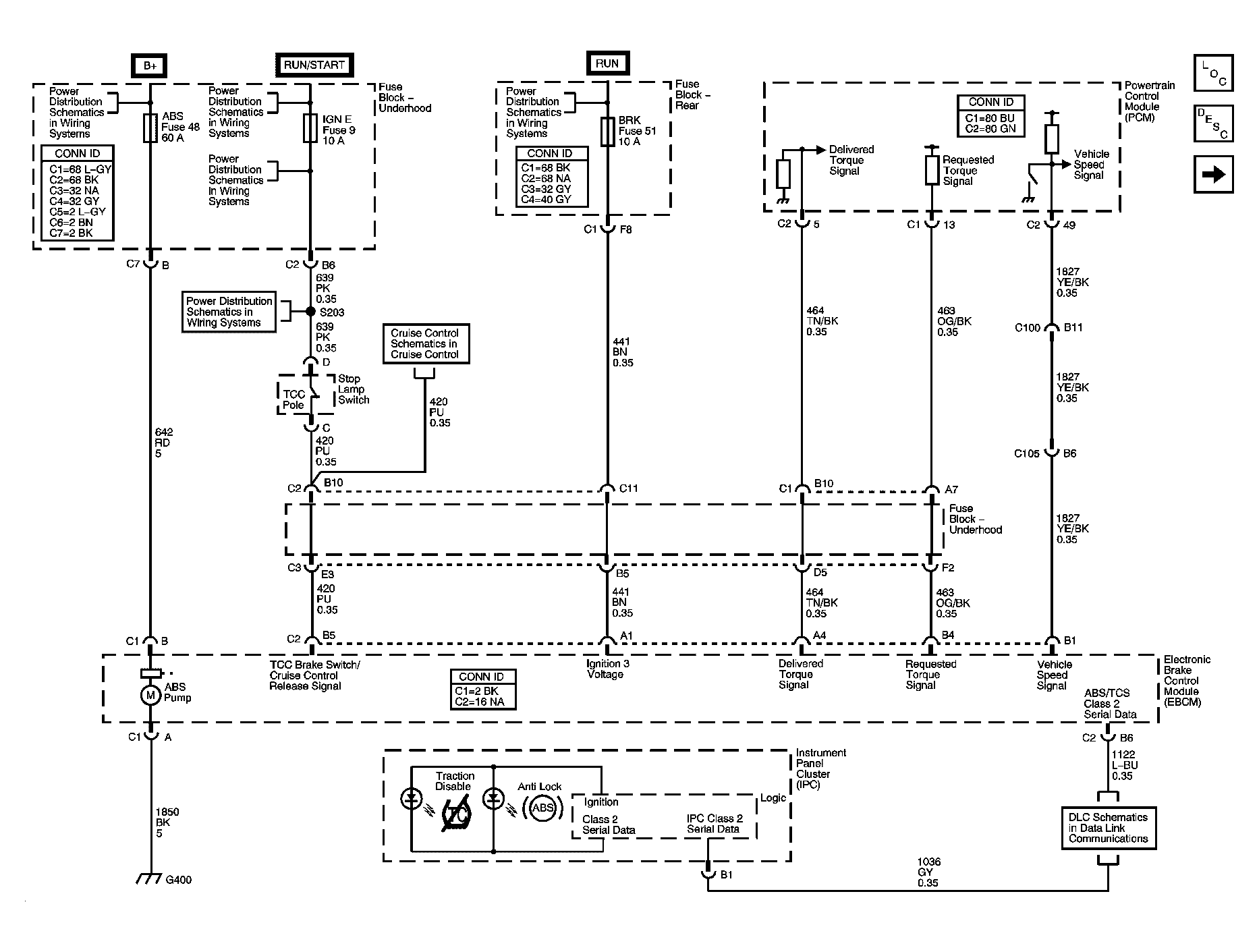

Fig 1: Power, Ground and Electronic Brake Control Module

GM1206933

Courtesy of GENERAL MOTORS CORP.

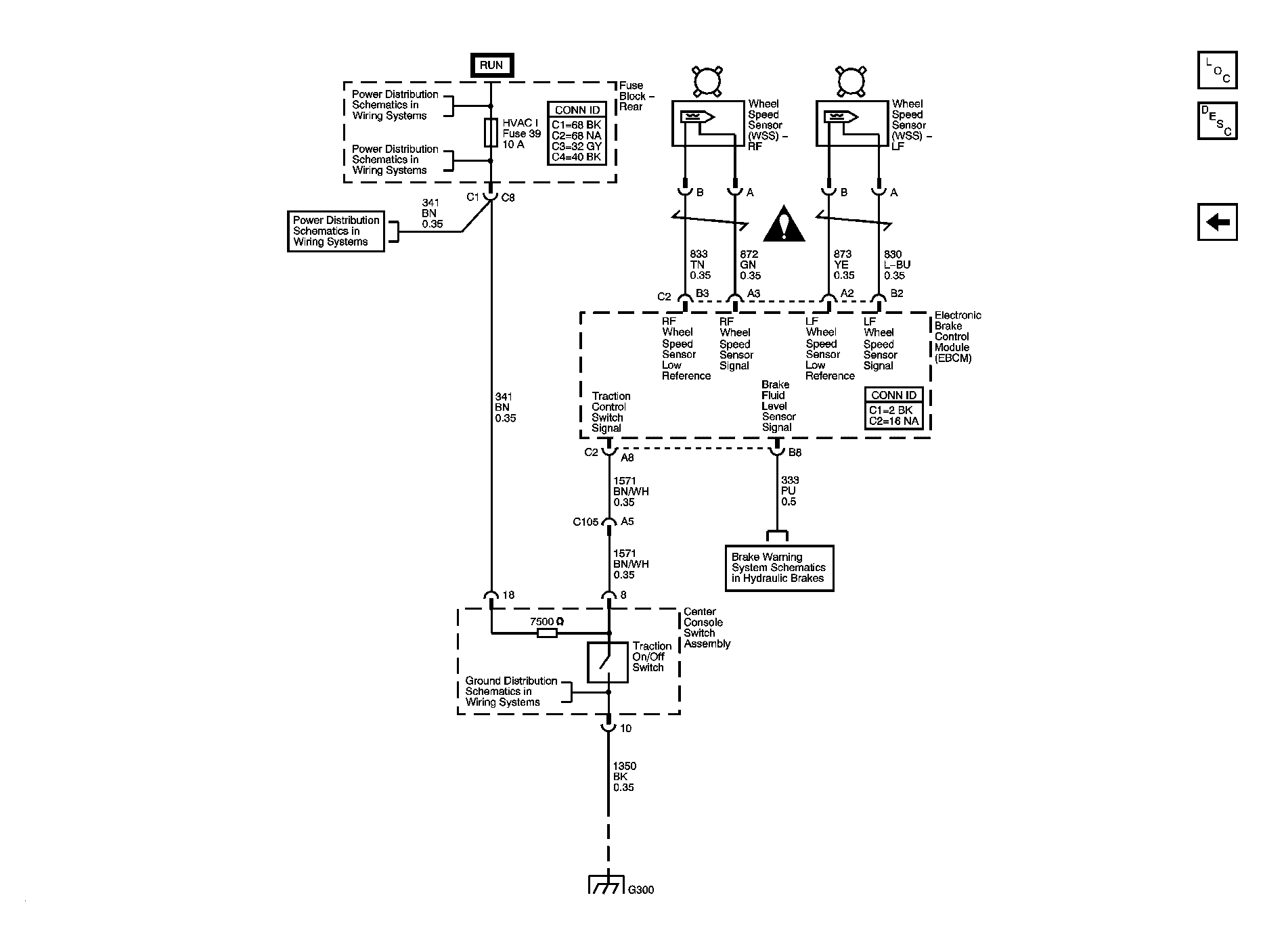

Fig 2: Wheel Speed Sensors and Traction Control

GM1206958

Courtesy of GENERAL MOTORS CORP.
