Lumbar Support Schematics

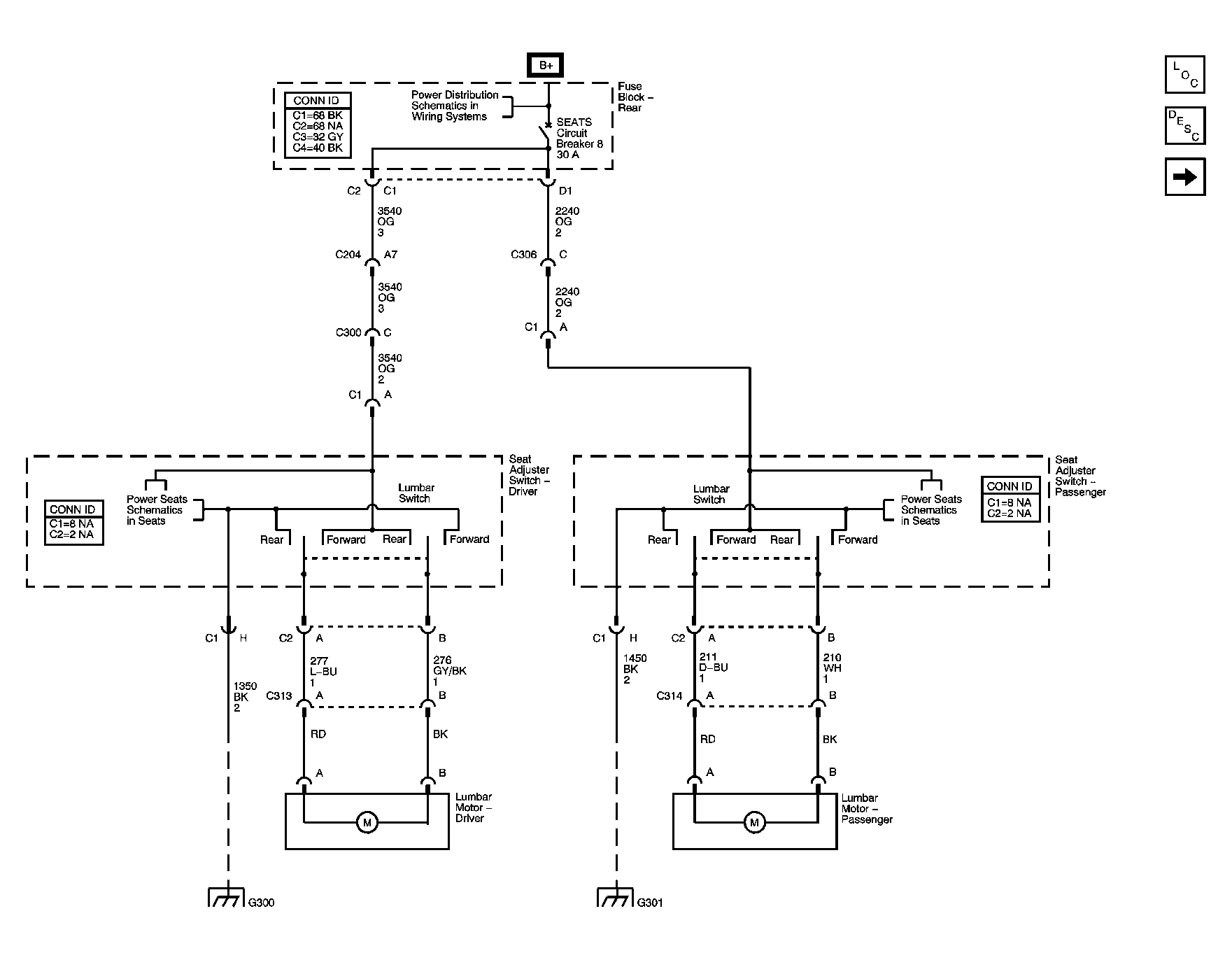

Fig 1: Driver 6-Way, Passenger 2-Way w/o Memory

GM1259292

Courtesy of GENERAL MOTORS CORP.

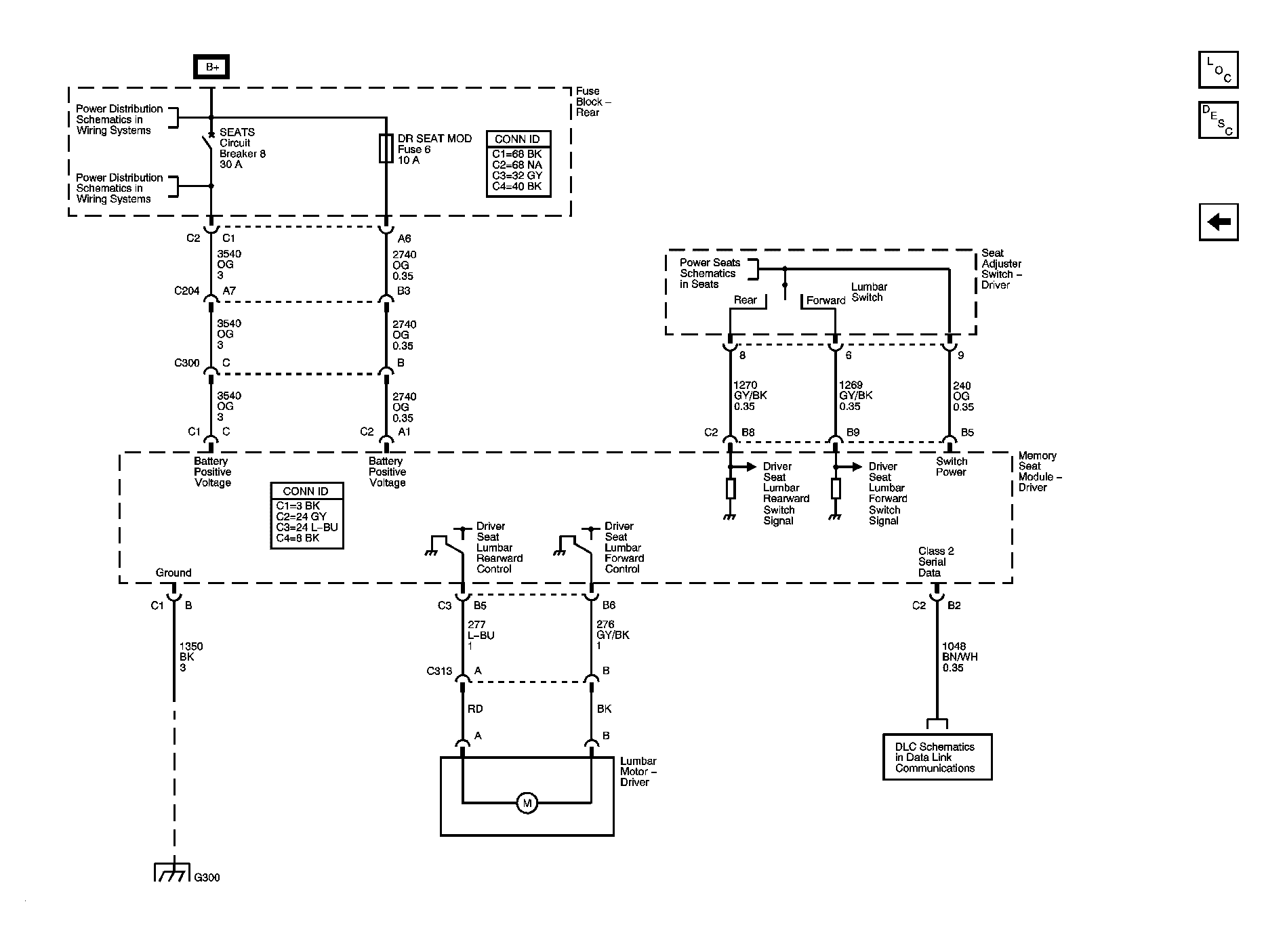

Fig 2: Driver 6-Way with Memory

GM1259425

Courtesy of GENERAL MOTORS CORP.
