Removal Procedure

  1. Remove the seats. Refer to Seat Replacement in Seats.
  2. Remove the console. Refer to Console Replacement in Instrument Panel, Gages and Console.
  3. Remove the door sill plate. Refer to Door Sill Plate Replacement  .
  4. Remove the hinge pillar trim. Refer to Trim Replacement - Hinge Pillar  .

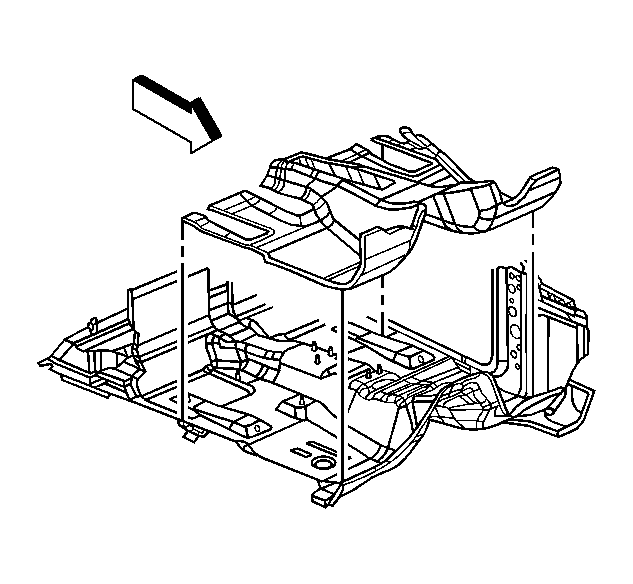

    5. Fig 1: View of Front Carpet
    GM1154103Courtesy of GENERAL MOTORS CORP.
  5. Remove the front carpet from the vehicle.
