Fuse Block - Underhood, Bottom View

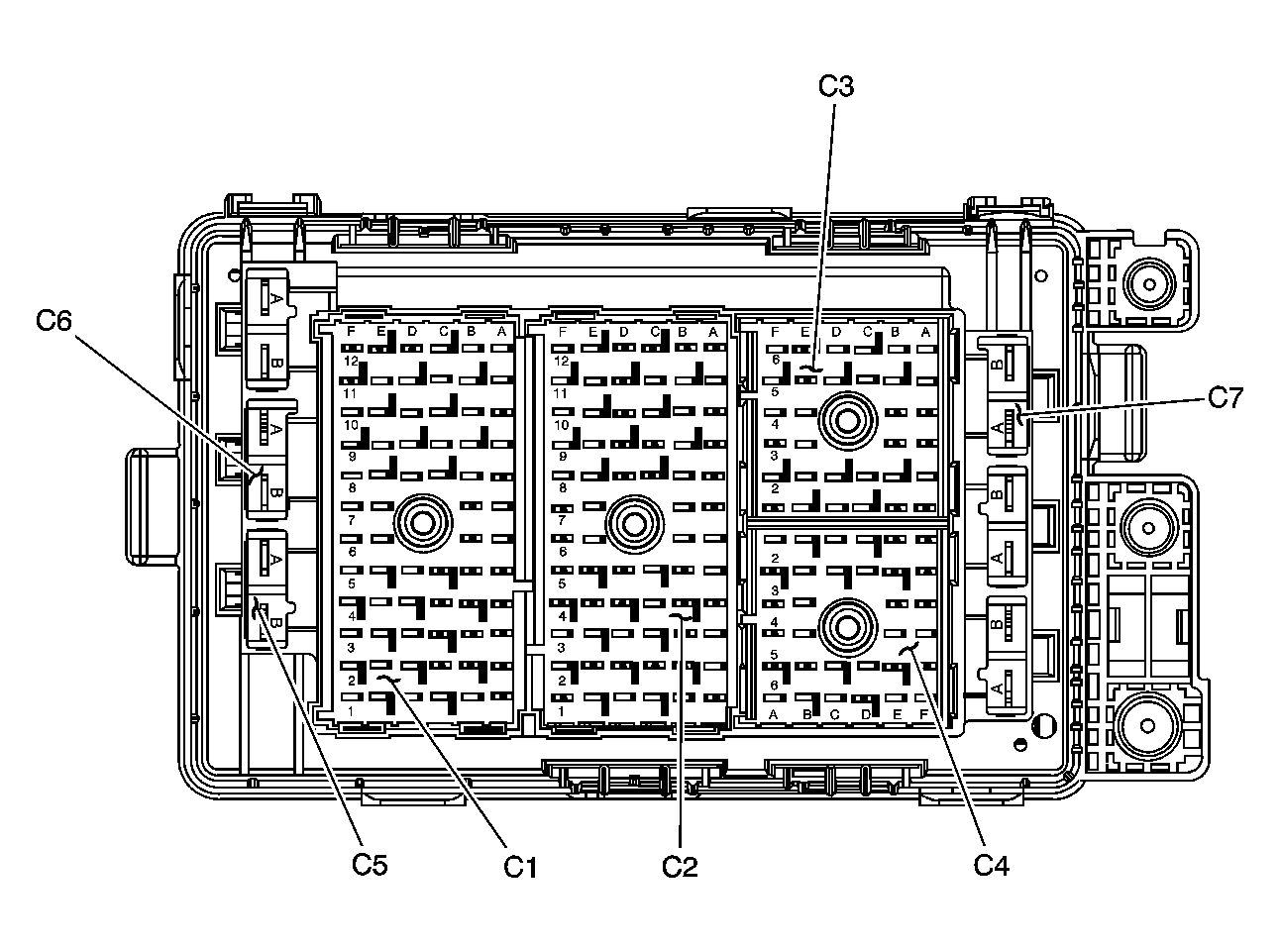

Fig 1: Fuse Block - Underhood, Bottom View
GM1201561Courtesy of GENERAL MOTORS CORP.

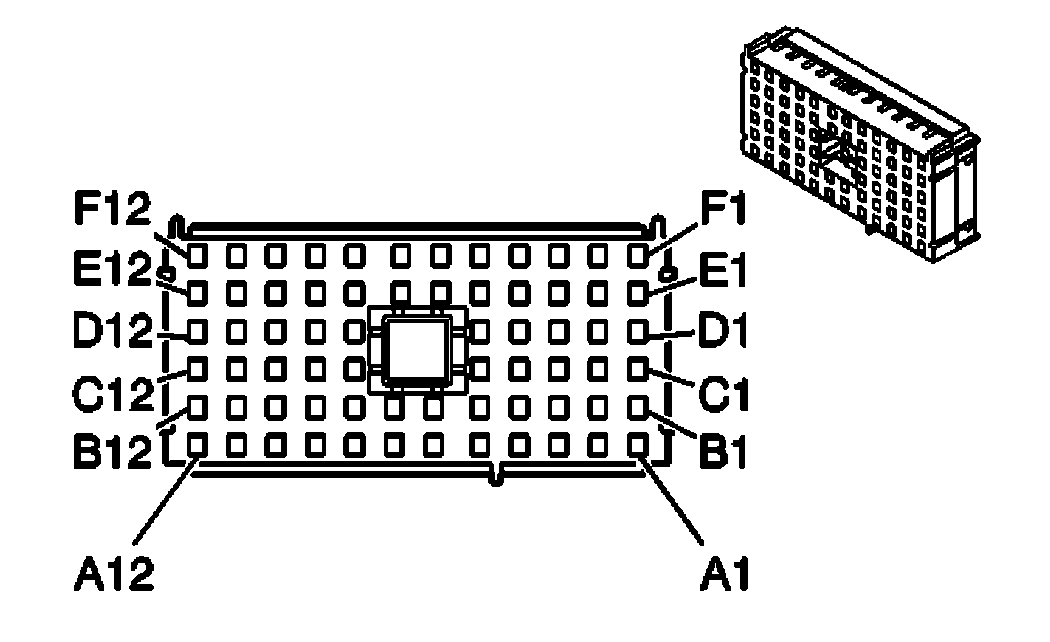

Fuse Block - Underhood C1 Connector End View

GM647955Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319897
  • 68-Way F Metri-Pack 280 Series, Flexlock (L-GY)
Pin Wire Color Circuit Number Function
A1 - - Not Used
A2 PK 1539 Run/Crank Ignition 1 Voltage
PK 1539 Run/Crank Ignition 1 Voltage
A3-A4 - - Not Used
A5 PK 639 Run/Crank Ignition 1 Voltage
A6 PU 806 Crank Voltage
A7 OG/BK 463 Requested Torque Signal
A8 PU 6 Starter Solenoid Crank Voltage
A9 - - Not Used
A10 YE 1737 Neutral Safety Switch Park/Neutral Signal
A11-A12 - - Not Used
B1 - - Not Used
B2 PK 339 Run/Crank Ignition 1 Voltage
B3-B4 - - Not Used
B5 PK 239 Run/Crank Ignition 1 Voltage
PK 239 Run/Crank Ignition 1 Voltage
B6 - - Not Used
B7 L-GN 275 Park Neutral Position Switch Park Signal
B8 D-GN/WH 465 Fuel Pump Primary Relay Control
B9 WH 1310 EVAP Canister Vent Solenoid Control
B10 TN/BK 464 Delivered Torque Signal
B11-B12 - - Not Used
C1 - - Not Used
C2 PK 539 Run/Crank Ignition 1 Voltage
PK 539 Run/Crank Ignition 1 Voltage
C3-C4 - - Not Used
C5 PK 439 Run/Crank Ignition 1 Voltage
C6-C9 - - Not Used
C10 BK 550 Ground
C11 - - Not Used
C12 PK 1339 Run/Crank Ignition 1 Voltage
PK 1339 Run/Crank Ignition 1 Voltage
D1 - - Not Used
D2 PK 1020 Off/Run/Crank Voltage
D3 BK 350 Ground
D4-D8 - - Not Used
D9 D-GN/WH 459 A/C Compressor Clutch Relay Control
D10 BK 550 Ground
BK 550 Ground
D11 D-GN 59 A/C Compressor Clutch Supply Voltage
D12 PK 1239 Run/Crank Ignition 1 Voltage
PK 1239 Run/Crank Ignition 1 Voltage
E1-E5 - - Not Used
E6 BK 450 Ground
E7 YE/BK 625 Starter Enable Relay Control
E8-E11 - - Not Used
E12 PK 839 Run/Crank Ignition 1 Voltage
F1-F2 - - Not Used
F3 BK 350 Ground
F4-F5 - - Not Used
F6 BK 450 Ground
BK 450 Ground
F7 BK 450 Ground
F8-F12 - - Not Used
Fuse Block - Underhood C2 Connector End View

GM647951Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319896
  • 68-Way F Metri-Pack 280 Series, Flexlock (BK)
Pin Wire Color Circuit Number Function
A1-A5 - - Not Used
A6 BN 2309 Front Park Lamp Supply Voltage
BN 2309 Front Park Lamp Supply Voltage
A7 OG 440 Battery Positive Voltage
OG 440 Battery Positive Voltage
A8-A9 - - Not Used
A10 YE 18 Left Rear Stop/Turn Lamp Supply Voltage
A11 - - Not Used
A12 OG 2268 Windshield Washer Relay Control
B1 D-BU 2115 Right Turn Signal Lamp Supply Voltage
B2 - - Not Used
B3 PK/WH 1970 Headlamp Low Beam Relay Control
B4-B5 - - Not Used
B6 PK 639 Run/Crank Ignition 1 Voltage
B7-B9 - - Not Used
B10 PU 420 Torque Converter Clutch Brake Switch Signal
PU 420 Torque Converter Clutch Brake Switch Signal
B11-B12 - - Not Used
C1 L-BU 2114 Left Turn Signal Lamp Supply Voltage
C2 D-GN/WH 1317 Fog Lamp Relay Control
C3 BN 253 Rear Compartment Lid Release Relay Signal
BN 253 Rear Compartment Lid Release Relay Signal
C4-C8 - - Not Used
C9 OG 1540 Battery Positive Voltage
C10 - - Not Used
C11 BN 441 Run Ignition 3 Voltage
C12 BK/WH 1969 Headlamp High Beam Relay Control
D1-D4 - - Not Used
D5 OG 140 Battery Positive Voltage
D6-D8 - - Not Used
D9 OG 640 Battery Positive Voltage
OG 640 Battery Positive Voltage
D10 D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage
D11-D12 - - Not Used
E1 OG 2340 Battery Positive Voltage
E2 BK 28 Horn Relay Control
E3 PK 1020 Off/Run/Crank Voltage
E4 - - Not Used
E5 PK 39 Run/Crank Ignition 1 Voltage
E6 L-GN/BK 584 Brake Transmission Shift Interlock Switch Supply Voltage
L-GN/BK 584 Brake Transmission Shift Interlock Switch Supply Voltage
E7-E11 - - Not Used
E12 OG 1140 Battery Positive Voltage
F1-F4 - - Not Used
F5 YE 1139 Run/Crank Ignition 1 Voltage
YE 1139 Run/Crank Ignition 1 Voltage
F6 - - Not Used
F7 YE 5 Crank Voltage
F8-F9 - - Not Used
F10 D-GN 1433 Clutch Start Switch Signal
F11 RD 142 Battery Positive Voltage
F12 - - Not Used

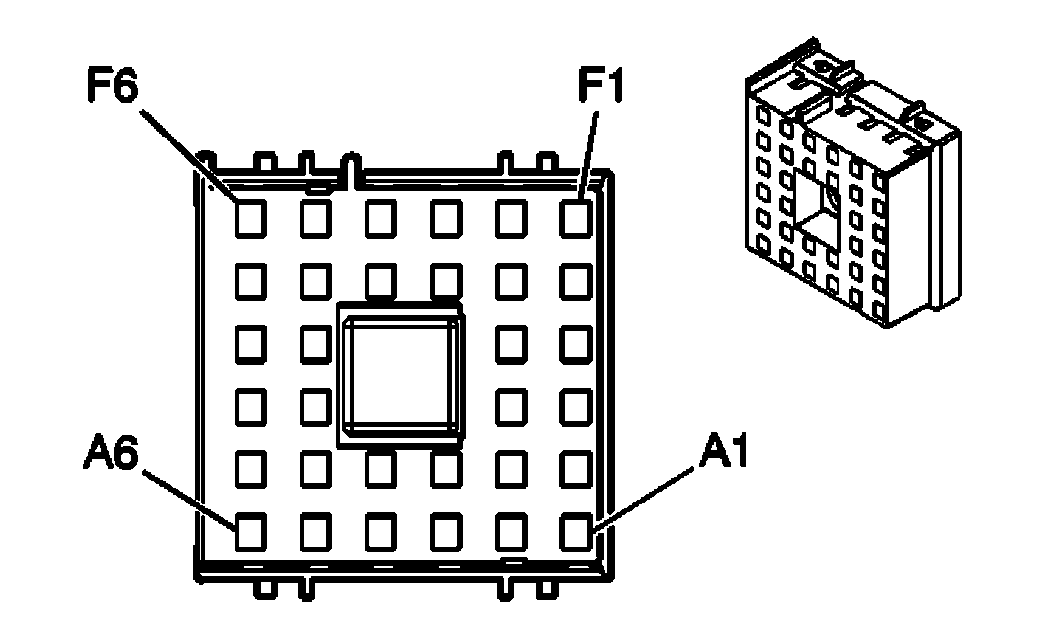

Fuse Block - Underhood C3 Connector End View

GM647944Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319892
  • 32-Way F Metri-Pack 280 Series, Flexlock (NA)
Pin Wire Color Circuit Number Function
A1-A6 - - Not Used
B1-B4 - - Not Used
B5 BN 441 Ignition 3 Voltage
B6 - - Not Used
C1-C5 - - Not Used
C6 OG 540 Battery Positive Voltage
D1 - - Not Used
D2 YE 1618 Trailer Left Rear Turn/Stop Lamp Supply Voltage
YE 1618 Trailer Left Rear Turn/Stop Lamp Supply Voltage
D3-D4 - - Not Used
D5 TN/BK 464 Delivered Torque Signal
D6 - - Not Used
E1-E2 - - Not Used
E3 PU 420 TCC Brake Switch/Cruise Control Release Signal
E4-E6 - - Not Used
F1 BK 350 Ground
F2 OG/BK 463 Requested Torque Signal
F3 GY 120 Fuel Pump Supply Voltage
F4 WH 1310 EVAP Canister Vent Solenoid Control
F5 - - Not Used
F6 D-GN 1619 Trailer Right Rear Turn/Stop Lamp Supply Voltage
D-GN 1619 Trailer Right Rear Turn/Stop Lamp Supply Voltage
Fuse Block - Underhood C4 Connector End View

GM647947Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319893
  • 32-Way F Metri-Pack 280 Series, Flexlock (GY)
Pin Wire Color Circuit Number Function
A1 BN 2309 Front Park Lamps Supply Voltage
BN 2309 Front Park Lamps Supply Voltage
A2-A5 - - Not Used
A6 L-BU 2114 Left Turn Signal Lamps Supply Voltage
L-BU 2114 Left Turn Signal Lamps Supply Voltage
B1 BN 2309 Front Park Lamps Supply Voltage
BN 2309 Front Park Lamps Supply Voltage
B2 PK 639 Ignition 1 Voltage
B3-B4 - - Not Used
B5 BK/WH 56 Rear Compartment Lid Release Switch Supply Voltage
B6 - - Not Used
C1-C4 - - Not Used
C5 BK 350 Ground
C6 D-BU 2115 Right Turn Signal Lamps Supply Voltage
D-BU 2115 Right Turn Signal Lamps Supply Voltage
D1-D6 - - Not Used
E1 D-GN/WH 711 Left Headlamp High Beam Supply Voltage
E2 PU 359 DRL Supply Voltage/DRL Off Indicator Control
E2 YE 712 Left Headlamp Low Beam Supply Voltage
E3 - - Not Used
E4 RD 228 Windshield Washer Pump Control
E5-E6 - - Not Used
F1 L-GN/BK 311 Right Headlamp High Beam Supply Voltage
F2 TN/WH 312 Right Headlamp Low Beam Supply Voltage
F2 PU 359 DRL Supply Voltage/DRL Off Indicator Control
F3 - - Not Used
F4 D-GN 1329 Horn Fuse Supply Voltage
F5 - - Not Used
F6 PU 34 Roof Off-Road Lamps Supply Voltage 2
PU 34 Roof Off-Road Lamps Supply Voltage 2

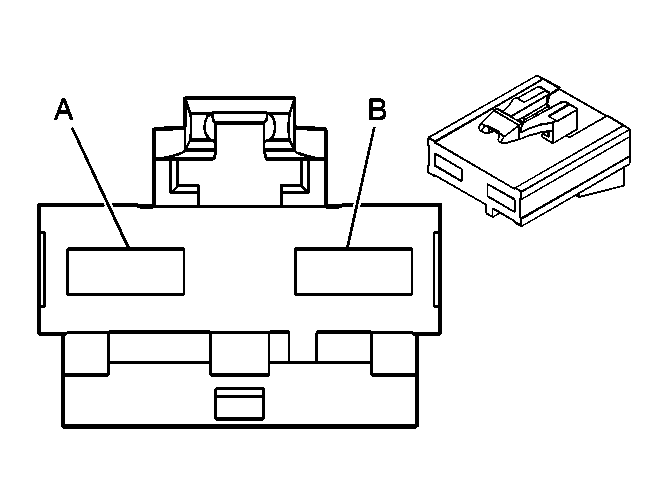

Fuse Block - Underhood C5 Connector End View

GM647935Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193694
  • 2-Way F MAXI FUSE (L-GY)
Pin Wire Color Circuit Number Function
A RD 342 Battery Positive Voltage
B PK 3 Run/Crank Ignition 1 Voltage

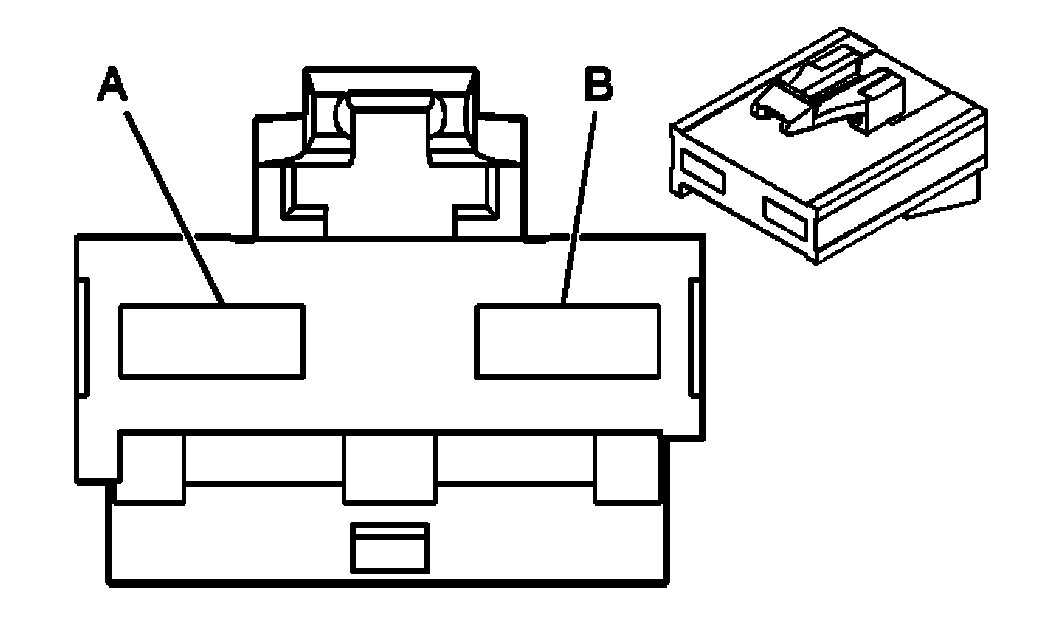

Fuse Block - Underhood C6 Connector End View

GM647937Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193696
  • 2-Way F MAXI FUSE (BN)
Pin Wire Color Circuit Number Function
A - - Not Used
B RD 542 Battery Positive Voltage
Fuse Block - Underhood C7 Connector End View

GM647933Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193693
  • 2-Way F MAXI FUSE (BK)
Pin Wire Color Circuit Number Function
A - - Ground
B RD 642 Battery Positive Voltage
