Wiper/Washer System Schematics

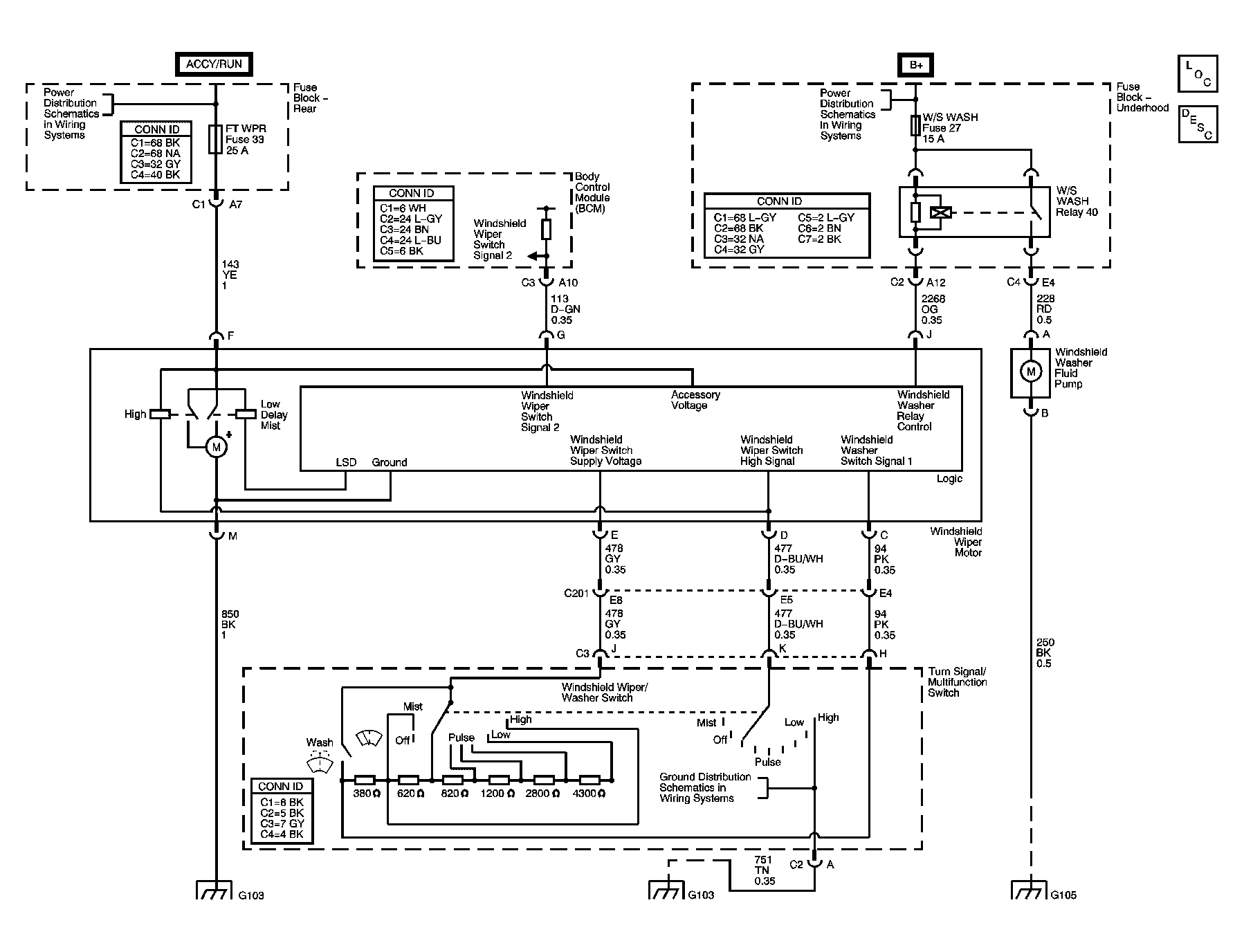

Fig 1: Wiper/Washer System Schematics
GM1214112Courtesy of GENERAL MOTORS CORP.
