Lighting Systems Component Views
| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch |
| 2 | Hazard Switch |
| 3 | Horn Switch |
| 4 | Mode/AM/FM Switch |
| 5 | Volume Up/Down Switch |
| 6 | Select/Personalization Switch |
| 7 | Fuel/Trip Switch |
| 8 | Data Link Connector (DLC) |
| 9 | Headlamp Switch |

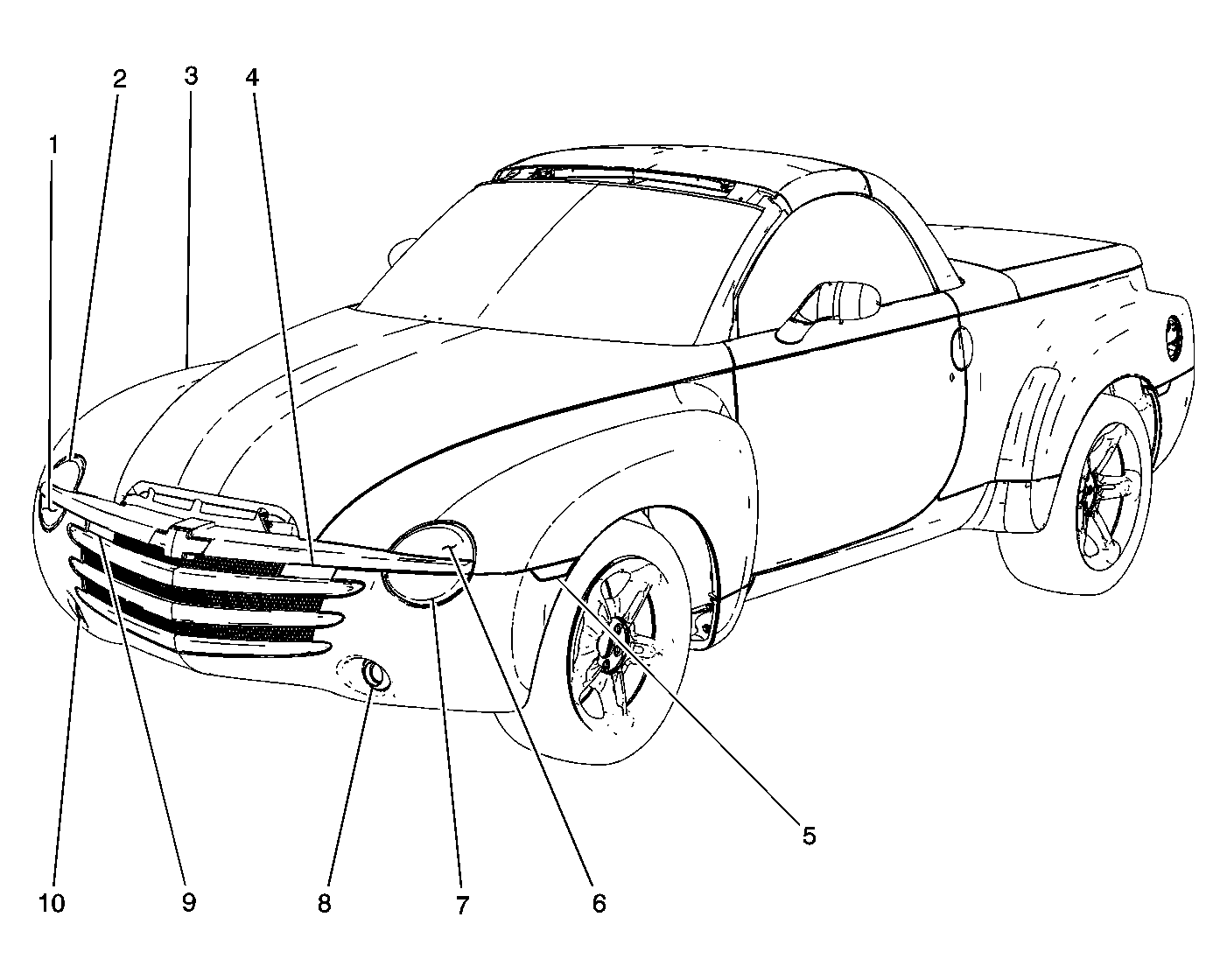

| Callout | Component Name |
|---|---|
| 1 | Head Lamp High Beam - Right |
| 2 | Head Lamp Low Beam - Right |
| 3 | Marker Lamp - RF |
| 4 | Park/Turn Signal Lamp - LF |
| 5 | Marker Lamp - LF |
| 6 | Head Lamp Low Beam - Left |
| 7 | Head Lamp High Beam - Left |
| 8 | Fog Lamp - LF |
| 9 | Park/Turn Signal Lamp - RF |
| 10 | Fog Lamp - RF |

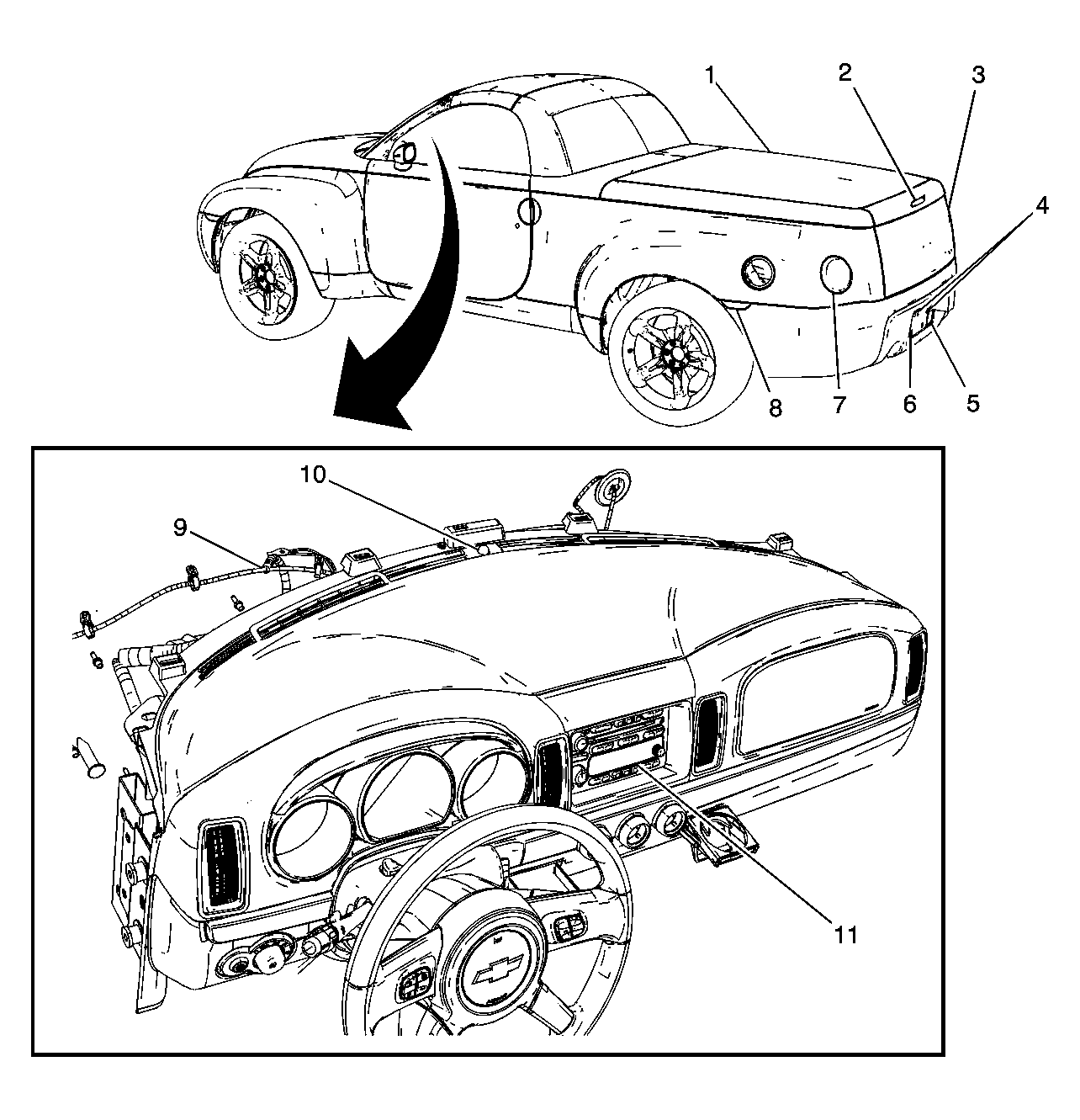

| Callout | Component Name |
|---|---|
| 1 | Marker Lamp - RR |
| 2 | Center High Mounted Stop Lamp (CHMSL) |
| 3 | Tail/Stop and Turn Signal Lamp - Right |
| 4 | License Lamps |
| 5 | Backup Lamp - Right |
| 6 | Backup Lamp - Left |
| 7 | Tail/Stop and Turn Signal Lamp - Left |
| 8 | Marker Lamp - LR |
| 9 | I/P Harness |
| 10 | Ambient Light Sensor |
| 11 | Radio |

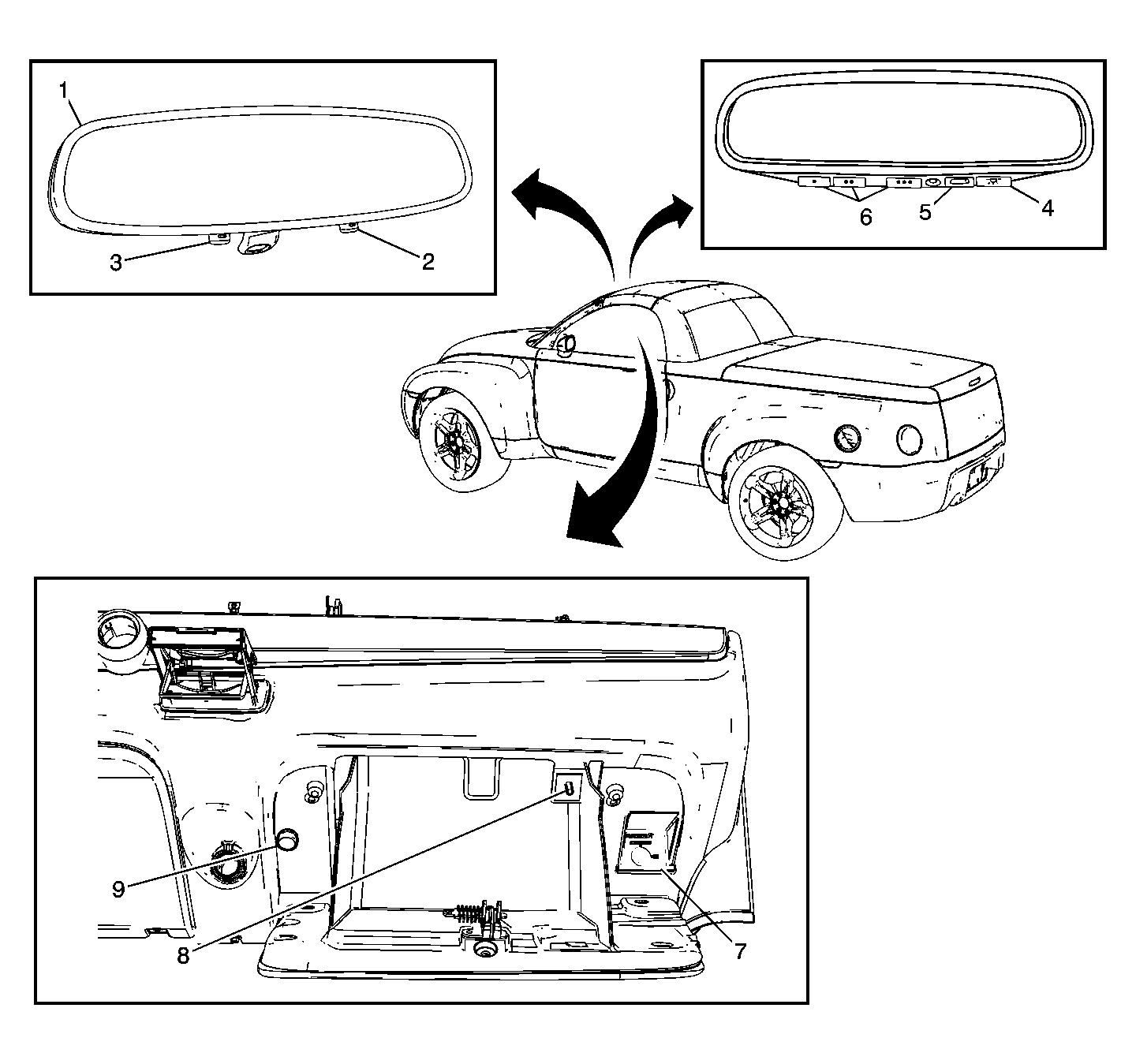

| Callout | Component Name |
|---|---|
| 1 | Inside Rear View Mirror (ISRVM) (w/o DJ2) |
| 2 | Reading Lamp Switch (w/o DJ2) |
| 3 | Reading Lamp Switch (w/o DJ2) |
| 4 | Reading Lamp Switch (DJ2) |
| 5 | Electrochromic On/Off Switch (DJ2) |
| 6 | Garage Door Opener (DJ2) |
| 7 | Inflatable Restraint I/P Module Disable Switch |
| 8 | I/P Compartment Lamp |
| 9 | Rear Compartment Lid Release Switch - Interior |
| Callout | Component Name |
|---|---|
| 1 | Vanity Mirror Lamp - Left Connector |
| 2 | Left Sunshade |
| 3 | Right Sunshade |
| 4 | Vanity Mirror Lamp - Right Connector |
| 5 | Vanity Mirror Lamp - Right |
| 6 | Inside Rearview Mirror |
| 7 | Reading Lamp Switch |
| 8 | Electrochromic Mirror On/Off Switch |
| 9 | Garage Door Opener |
| 10 | Vanity Mirror Lamp - Left |
