Shift Interlock System
>>
Schematic and Routing Diagrams
Schematic and Routing Diagrams

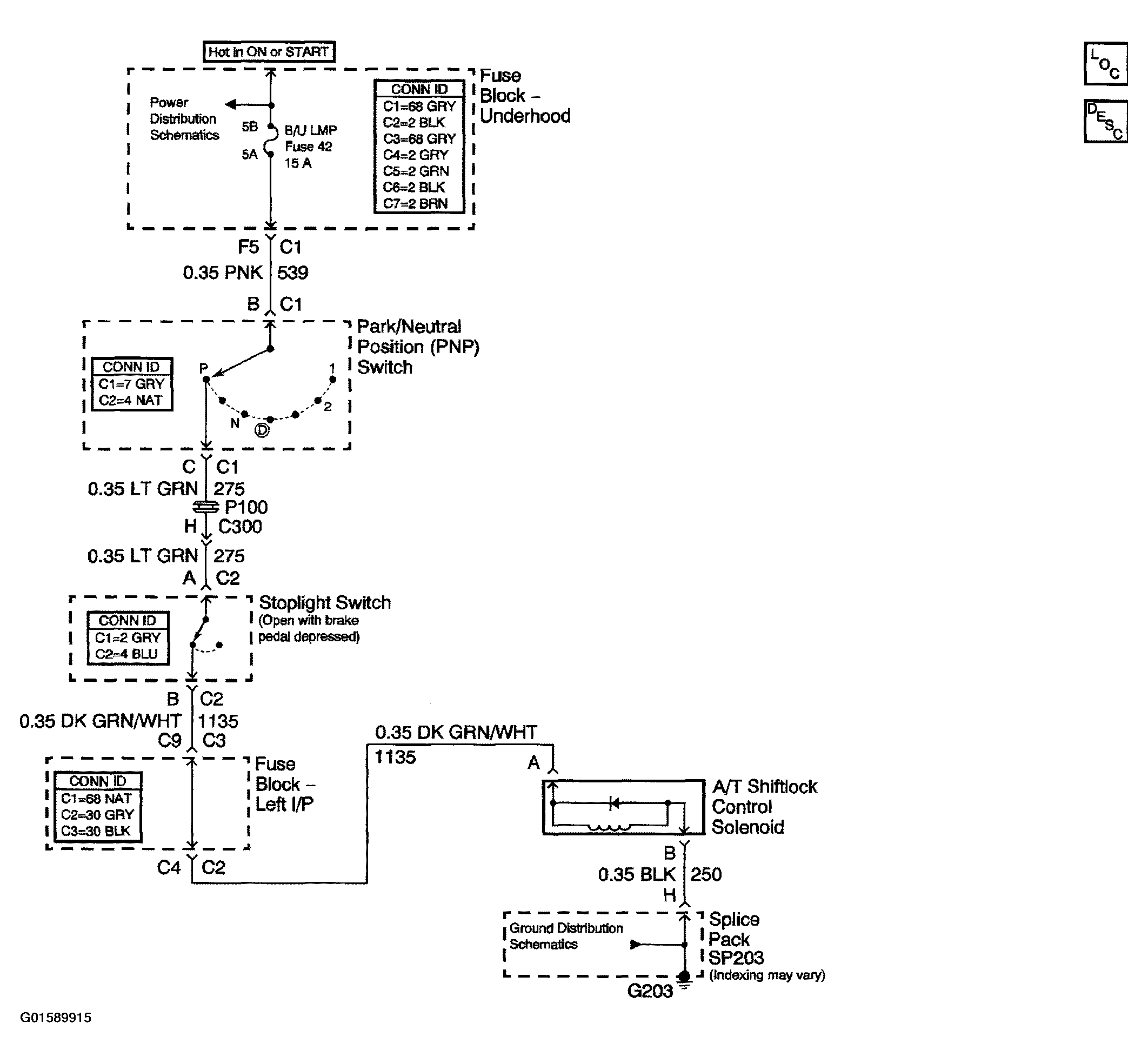

Fig 1: Automatic Transmission Shift Lock Control Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
