Removal Procedure

  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  2. Remove the center console. Refer to TRIM PLATE REPLACEMENT - CONSOLE in Instrument Panel, Gages and Console.
  3. Disconnect electrical connector from the shift lock control for the automatic transmission (AT).

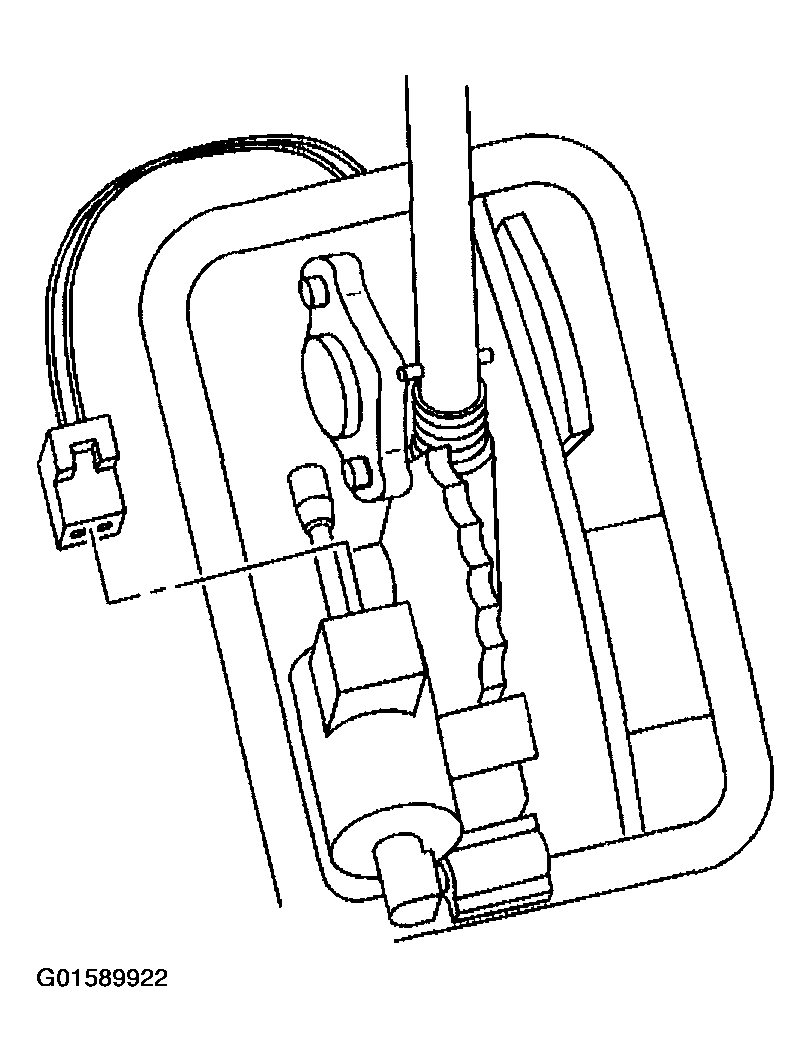

    Fig 1: Disconnecting Electrical Connector From Shift Lock Control
    G01589922Courtesy of GENERAL MOTORS CORP.
  4. Remove both ends of the AT shift lock control from pivot points (1).

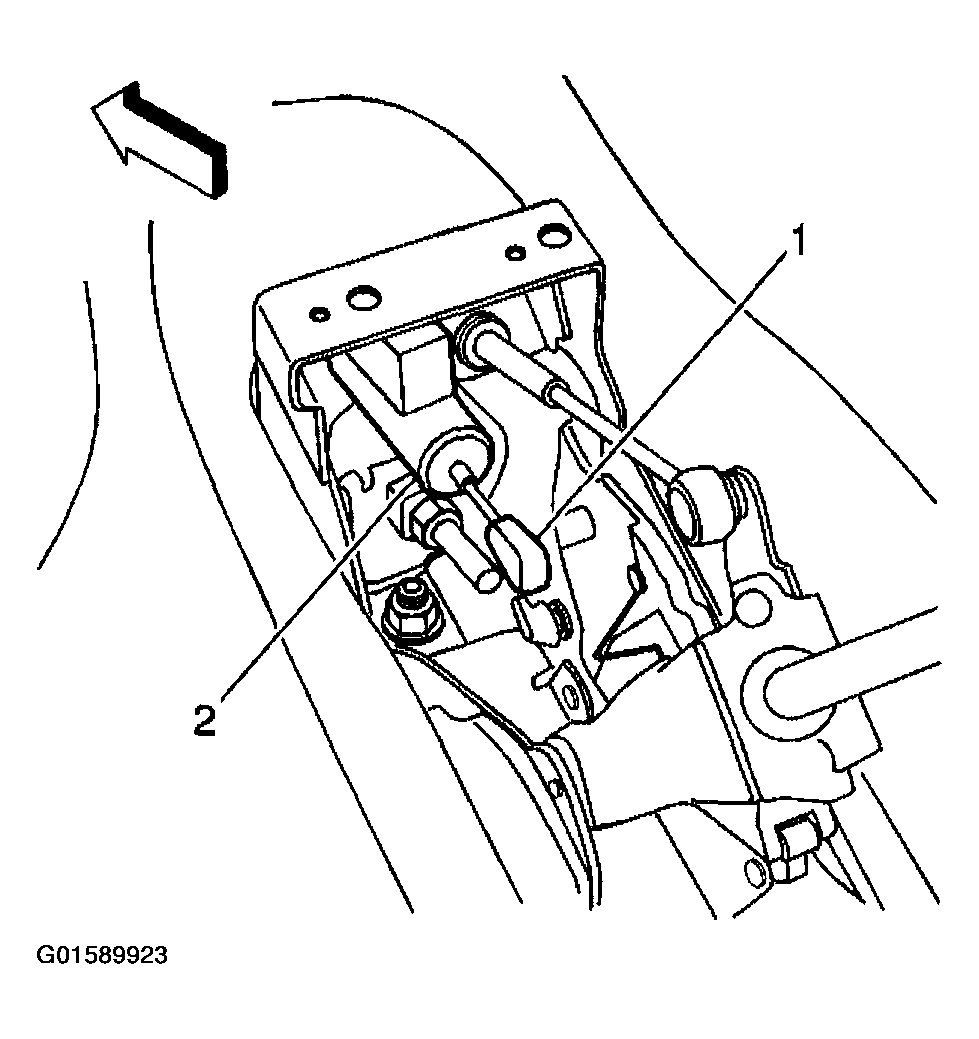

    Fig 2: Removing AT Shift Lock Control From Pivot Points
    G01589923Courtesy of GENERAL MOTORS CORP.
