Installation Procedure

  1. Install the control arm (1) into position and install the bolt (2) attaching the control arm (1) to the crossmember (4).

    Hand tighten the bolt.

  2. Install the bolt (3) to the control arm (1).

    Hand tighten the bolt.

  3. Install the lower ball joint to the steering knuckle. Refer to LOWER BALL JOINT REPLACEMENT  .
  4. Install the stabilizer shaft link. Refer to STABILIZER SHAFT LINK REPLACEMENT  .
  5. Slightly raise the vehicle.
  6. Remove the jack stands from under the crossmember.
  7. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  8. With the vehicle at curb height, tighten the control arm attaching bolts.

    Tighten

    • Tighten the front suspension crossmember front bolt (3) to 60 N.m (45 lb ft) plus 180 degrees rotation.
    • Tighten the front suspension control arm to body bolt (2) to 245 N.m (180 lb ft).
  9. Check the front wheel alignment. Refer to WHEEL ALIGNMENT SPECIFICATIONS .

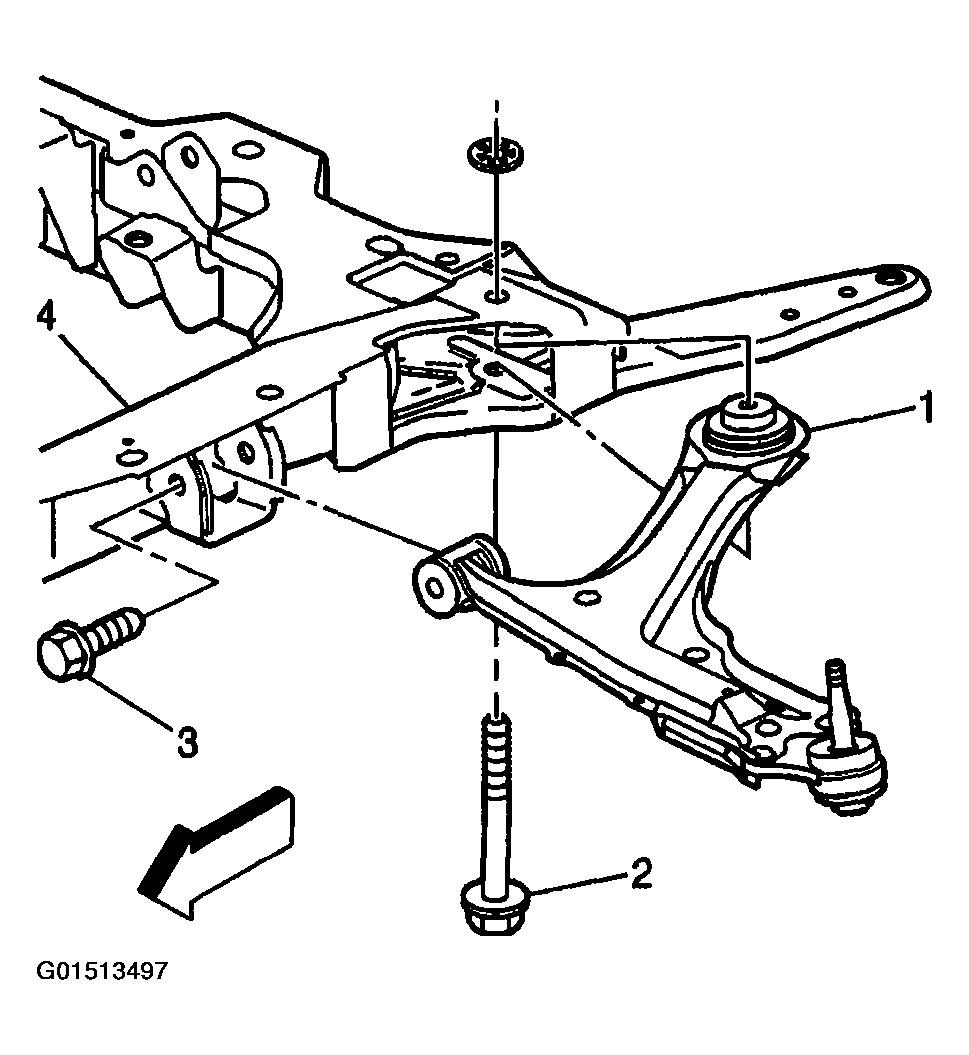

    Fig 1: Installing Lower Control Arm To Vehicle
    G01513497Courtesy of GENERAL MOTORS CORP.
