Removal Procedure

  1. Remove steering wheel. Refer to STEERING WHEEL REPLACEMENT  .
  2. Remove steering wheel rear trim cover.
  3. Push the steering wheel control switches (1), out from the back of the steering wheel.
  4. Disconnect the wiring harnesses from the switches.

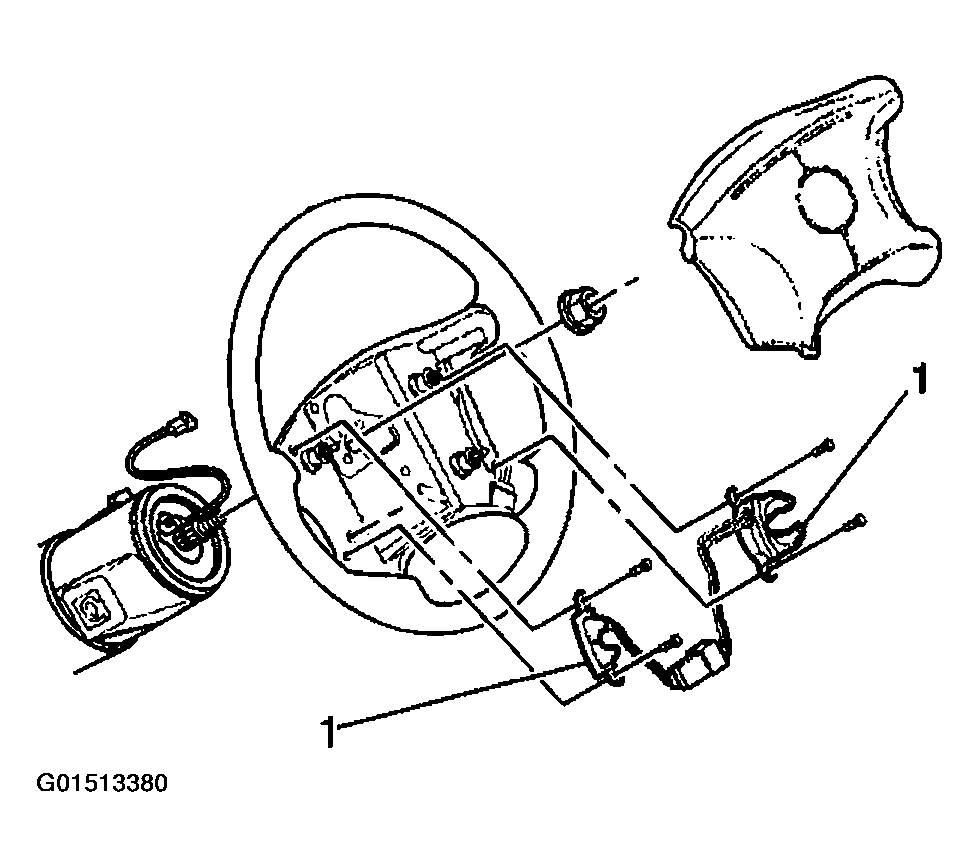

    Fig 1: Removing Steering Wheel Control Switch Assembly
    G01513380Courtesy of GENERAL MOTORS CORP.
