Installation Procedure

  1. Connect the wiring harnesses to the switches.
  2. Press the control switches (1), into the steering wheel.
  3. Install the rear trim cover to the steering wheel.
  4. Install the steering wheel to the steering column. Refer to STEERING WHEEL REPLACEMENT  .

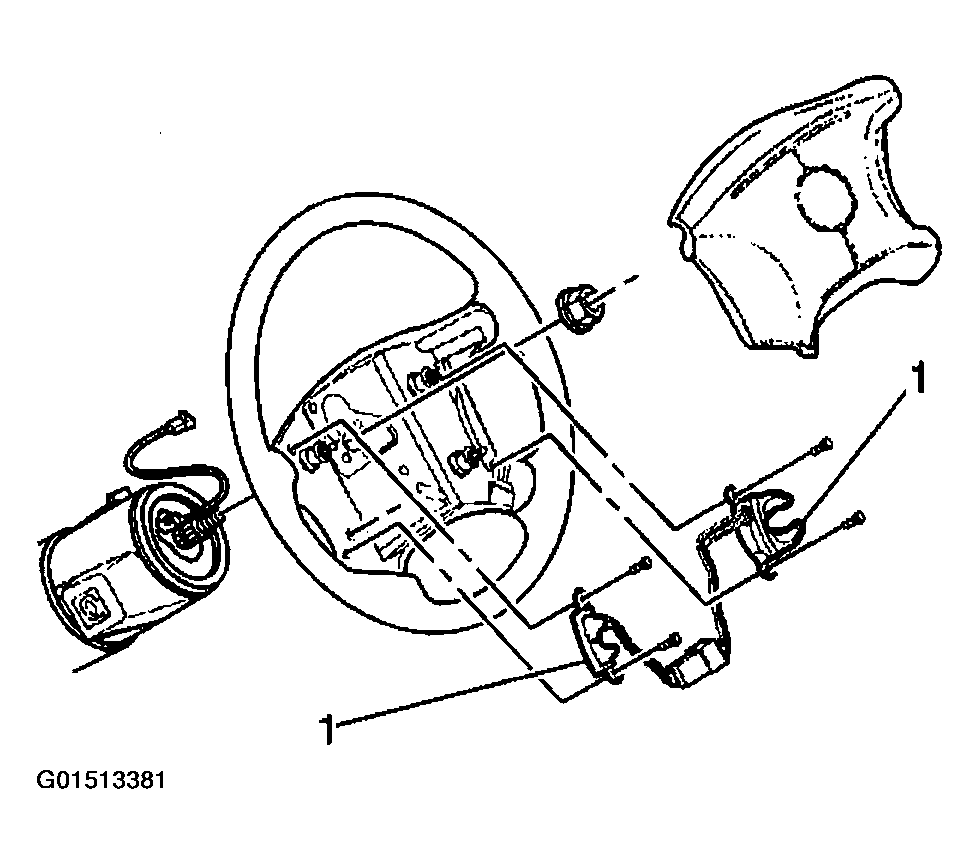

    Fig 1: Installing Steering Wheel Control Switch Assembly
    G01513381Courtesy of GENERAL MOTORS CORP.
