Schematic and Routing Diagrams

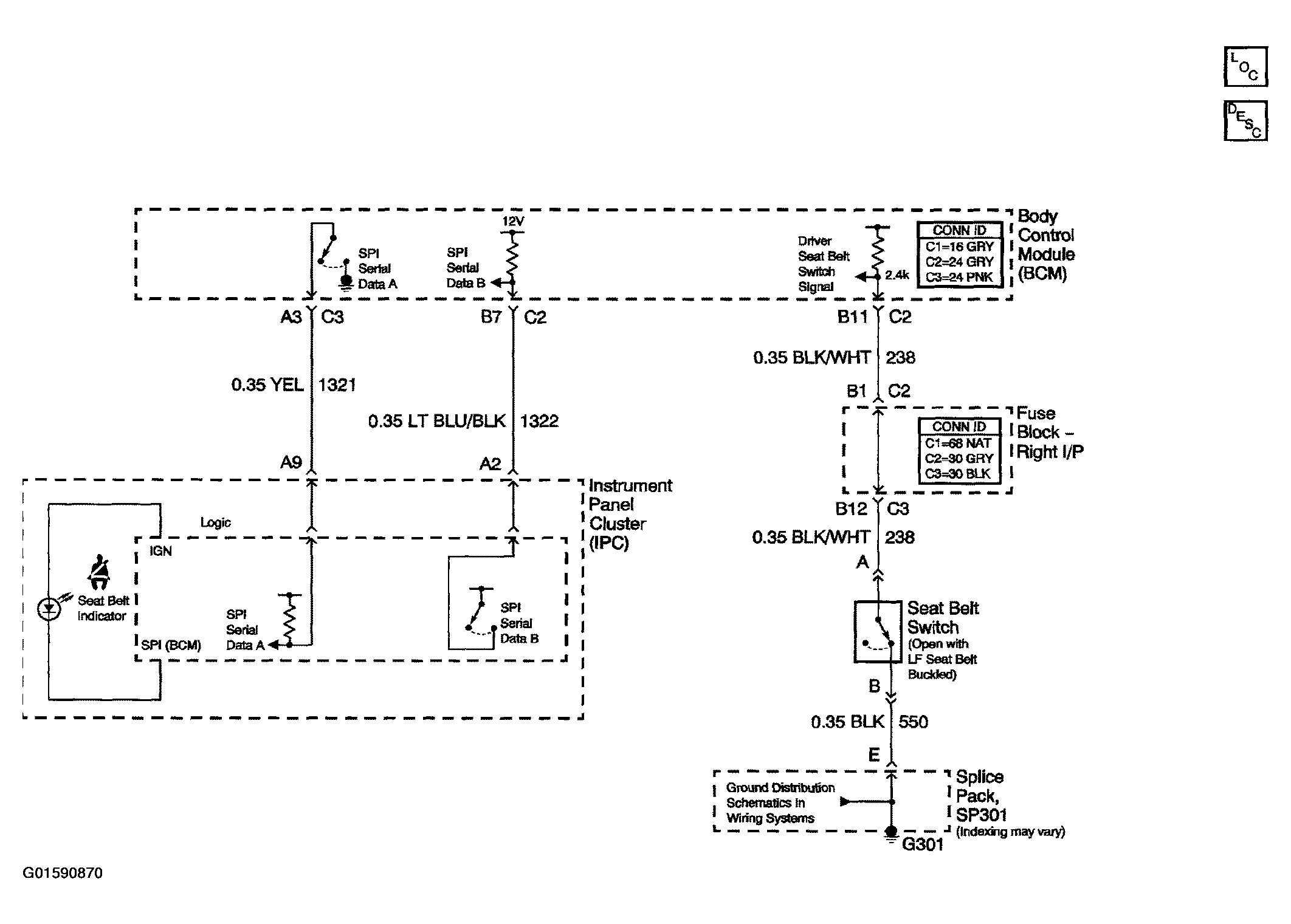

Fig 1: Seat Belt Schematics

G01590870

Courtesy of GENERAL MOTORS CORP.
