Installation Procedure

  1. Install the shoulder belt to the rerouter guide (3) if required.
  2. Align the rerouter (1) to the lower quarter panel or to the lower quarter trim panel.
  3. Press the push-pin retainer (2) into the rerouter (1) until fully engaged.
  4. Install the stationary rear seat back, or the seat back bolsters if equipped with a split rear folding seat back, if necessary. Refer to SEAT BACK REPLACEMENT - REAR or to SEAT BACK BOLSTER REPLACEMENT - REAR SPLIT FOLDING in Seats.

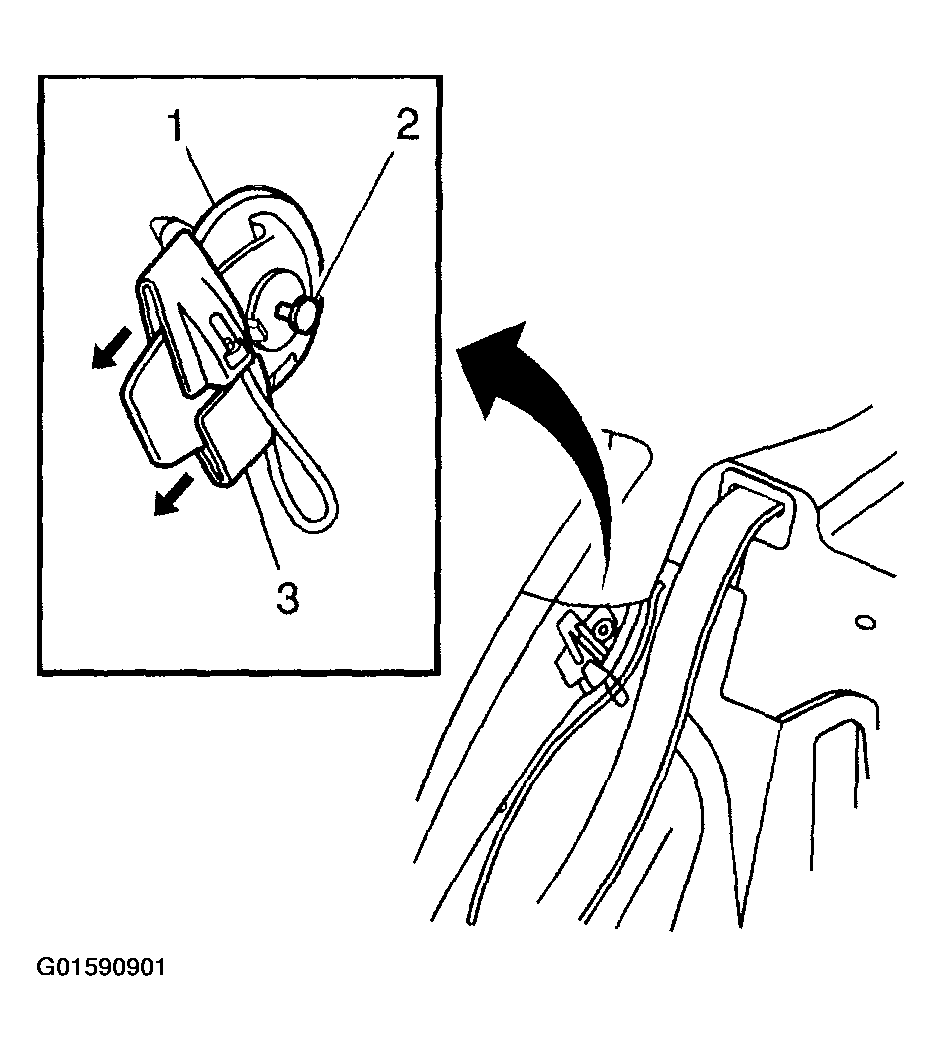

    Fig 1: Installing Rear Child Shoulder Belt Guide Rerouter
    G01590901Courtesy of GENERAL MOTORS CORP.
